Toyota LEXUS GS SERIES — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

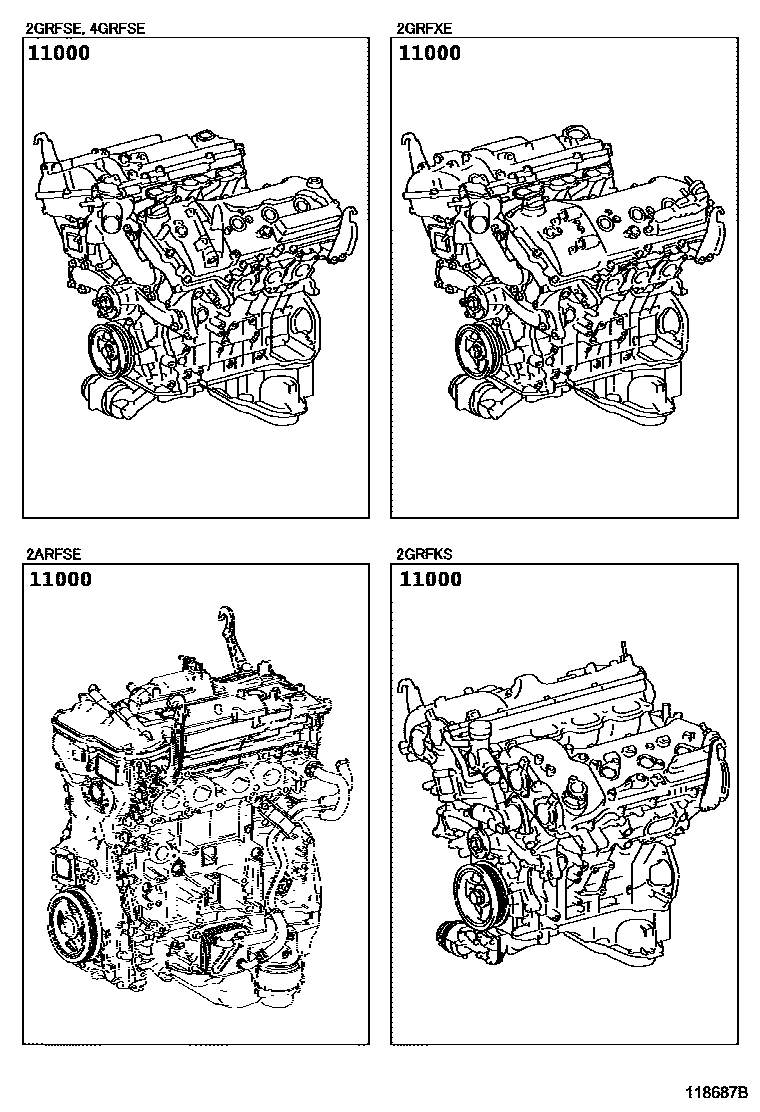

11000ENGINE ASSY, PARTIAL

main19000-31A92i4GRFSE..GRL11201112-201608

main19000-31B13i2GRFSE..GRL10201411-201510

main19000-31D52i2GRFSE..GRL15201112-201403

sub19000-31D53

main19000-31D53i2GRFSE..GRL15201403-201510

sub19000-31R40

main19000-31H80i2GRFSE..GRL10201112-201403

sub19000-31H81

main19000-31H81i2GRFSE..GRL10201403-201411

main19000-31M80i2GRFXE..GWL10201304-201403

sub19000-31M81

main19000-31M81i2GRFXE..GWL10201403-202007

main19000-31N10i2GRFXE..GWL10201203-201304

sub19000-31M80

main19000-31P70i2GRFKS..GRL12201510-202007

main19000-31P90i2GRFKS..GRL16201510-202007

main19000-36410i2ARFSE..AWL10201309-201403

sub19000-36480

main19000-36480i2ARFSE..AWL10201403-202007

main19000-36550i8ARFTS..ARL10201609-202007

1 parts on this diagram · 2 diagrams in section
