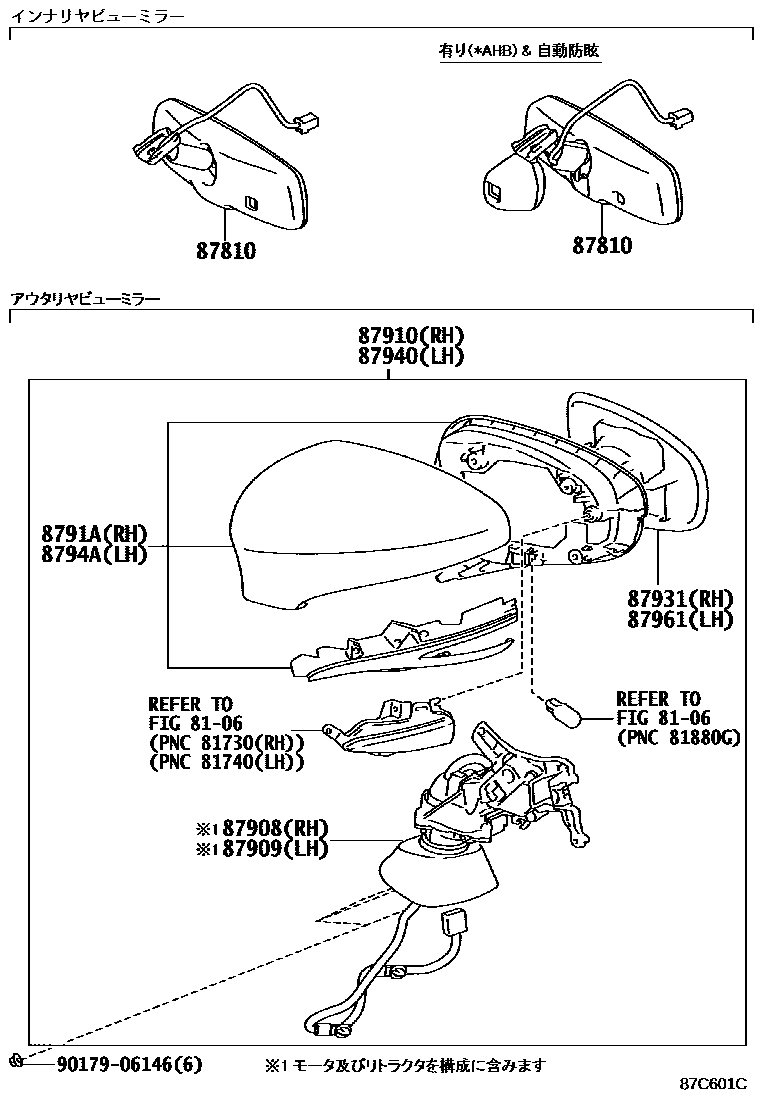

Toyota LEXUS GS SERIES — MIRROR

0001 1 0002 1

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W730iAWL10,GRL1#,GWL10201112-201510

main87810-0WP60iARL10,AWL10,GRL1#,GWL10201510-202007

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30C90-A0iGRL1#,GWL10201112-201308

WHITE PEARL CS.,077

sub87908-30C91

main87908-30C90-B0iGRL1#,GWL10201112-201308

MERCURY GRAY MC.,1H9

sub87908-30C91

main87908-30C90-B1iGRL1#,GWL10201112-201308

SONIC SILVER,1J2

sub87908-30C91

main87908-30C90-C0iGRL1#,GWL10201112-201308

BLACK,212

sub87908-30C91

main87908-30C90-C1iGRL1#,GWL10201112-201308

BLACK OPAL MC.,214

sub87908-30C91

main87908-30C90-C2iGRL1#,GWL10201112-201308

STARLIGHT BLACK GF.,217

sub87908-30C91

main87908-30C90-D0iGRL1#,GWL10201112-201308

CRIMSON CS. GF.,3S8

sub87908-30C91

main87908-30C90-E0iGRL1#,GWL10201112-201308

SLEEK ECRU ME.,4U7

sub87908-30C91

main87908-30C90-E1iGRL1#,GWL10201112-201308

FIRE AGATE M.M.,4V3

sub87908-30C91

main87908-30C90-J0iGRL1#,GWL10201112-201308

LAPIS LAZULI MC.,8V3

sub87908-30C91

main87908-30C90-J1iGRL1#,GWL10201112-201308

METEOR BLUE M.M.,8W3

sub87908-30C91

main87908-30C91-A0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

WHITE PEARL CS.,077

sub87908-30E10

sub87908-30D61

main87908-30C91-A1iARL10,AWL10,GRL1#,GWL10201309-202007

WHITE NOVA GF.,083

sub87908-30E10

sub87908-30D61

main87908-30C91-A2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

sub87908-30E10

sub87908-30D61

main87908-30C91-B0iAWL10,GRL1#,GWL10201308-201609

MERCURY GRAY MC.,1H9

sub87908-30E10

sub87908-30D61

main87908-30C91-B1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-202007

SONIC SILVER,1J2

sub87908-30E10

sub87908-30D61

main87908-30C91-B2iARL10,AWL10,GRL1#,GWL10201409-202007

SONIC TITANIUM,1J7

sub87908-30E10

sub87908-30D61

main87908-30C91-B3iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

sub87908-30E10

sub87908-30D61

main87908-30C91-C0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-202007

BLACK,212

sub87908-30E10

sub87908-30D61

main87908-30C91-C1iGRL10201308-201409

BLACK OPAL MC.,214

sub87908-30E10

sub87908-30D61

main87908-30C91-C2iGRL10201308-201510

STARLIGHT BLACK GF.,217

sub87908-30E10

sub87908-30D61

main87908-30C91-C3iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

sub87908-30E10

sub87908-30D61

main87908-30C91-D0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

CRIMSON CS. GF.,3S8

sub87908-30E10

sub87908-30D61

main87908-30C91-D1iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

sub87908-30E10

sub87908-30D61

main87908-30C91-E0iGRL10201308-201510

SLEEK ECRU ME.,4U7

sub87908-30E10

sub87908-30D61

main87908-30C91-E1iGRL10201308-201510

FIRE AGATE M.M.,4V3

sub87908-30E10

sub87908-30D61

main87908-30C91-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

sub87908-30E10

sub87908-30D61

main87908-30C91-J0iGRL10201308-201510

LAPIS LAZULI MC.,8V3

sub87908-30E10

sub87908-30D61

main87908-30C91-J1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

METEOR BLUE M.M.,8W3

sub87908-30E10

sub87908-30D61

main87908-30C91-J2iARL10,AWL10,GRL1#,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub87908-30E10

sub87908-30D61

main87908-30C91-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

sub87908-30E10

sub87908-30D61

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30D80-A0iGRL1#,GWL10201112-201308

WHITE PEARL CS.,077

sub87909-30D81

main87909-30D80-B0iGRL1#,GWL10201112-201308

MERCURY GRAY MC.,1H9

sub87909-30D81

main87909-30D80-B1iGRL1#,GWL10201112-201308

SONIC SILVER,1J2

sub87909-30D81

main87909-30D80-C0iGRL1#,GWL10201112-201308

BLACK,212

sub87909-30D81

main87909-30D80-C1iGRL1#,GWL10201112-201308

BLACK OPAL MC.,214

sub87909-30D81

main87909-30D80-C2iGRL1#,GWL10201112-201308

STARLIGHT BLACK GF.,217

sub87909-30D81

main87909-30D80-D0iGRL1#,GWL10201112-201308

CRIMSON CS. GF.,3S8

sub87909-30D81

main87909-30D80-E0iGRL1#,GWL10201112-201308

SLEEK ECRU ME.,4U7

sub87909-30D81

main87909-30D80-E1iGRL1#,GWL10201112-201308

FIRE AGATE M.M.,4V3

sub87909-30D81

main87909-30D80-J0iGRL1#,GWL10201112-201308

LAPIS LAZULI MC.,8V3

sub87909-30D81

main87909-30D80-J1iGRL1#,GWL10201112-201308

METEOR BLUE M.M.,8W3

sub87909-30D81

main87909-30D81-A0iGRL10201308-201510

WHITE PEARL CS.,077

sub87909-30E20

sub87909-30E51

main87909-30D81-A1iAWL10,GRL1#,GWL10201309-202007

WHITE NOVA GF.,083

sub87909-30E20

sub87909-30E51

main87909-30D81-A2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

sub87909-30E20

sub87909-30E51

main87909-30D81-B0iAWL10,GRL1#,GWL10201308-201609

MERCURY GRAY MC.,1H9

sub87909-30E20

sub87909-30E51

main87909-30D81-B1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-202007

SONIC SILVER,1J2

sub87909-30E20

sub87909-30E51

main87909-30D81-B2iARL10,AWL10,GRL1#,GWL10201409-202007

SONIC TITANIUM,1J7

sub87909-30E20

sub87909-30E51

main87909-30D81-B3iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

sub87909-30E20

sub87909-30E51

main87909-30D81-C0iGRL10201308-202007

BLACK,212

sub87909-30E20

sub87909-30E51

main87909-30D81-C1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201409

BLACK OPAL MC.,214

sub87909-30E20

sub87909-30E51

main87909-30D81-C2iGRL10201308-201510

STARLIGHT BLACK GF.,217

sub87909-30E20

sub87909-30E51

main87909-30D81-C3iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

sub87909-30E20

sub87909-30E51

main87909-30D81-D0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

CRIMSON CS. GF.,3S8

sub87909-30E20

sub87909-30E51

main87909-30D81-D1iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

sub87909-30E20

sub87909-30E51

main87909-30D81-E0iGRL11,15,GWL10201308-201510

SLEEK ECRU ME.,4U7

sub87909-30E20

sub87909-30E51

main87909-30D81-E1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

FIRE AGATE M.M.,4V3

sub87909-30E20

sub87909-30E51

main87909-30D81-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

sub87909-30E20

sub87909-30E51

main87909-30D81-J0iGRL10201308-201510

LAPIS LAZULI MC.,8V3

sub87909-30E20

sub87909-30E51

main87909-30D81-J1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

METEOR BLUE M.M.,8W3

sub87909-30E20

sub87909-30E51

main87909-30D81-J2iARL10,AWL10,GRL1#,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

sub87909-30E20

sub87909-30E51

main87909-30D81-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

sub87909-30E20

sub87909-30E51

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30C90-A0iGRL1#,GWL10201112-201307

WHITE PEARL CS.,077

sub87910-30C91

main87910-30C90-B0iGRL1#,GWL10201112-201307

MERCURY GRAY MC.,1H9

sub87910-30C91

main87910-30C90-B1iGRL1#,GWL10201112-201307

SONIC SILVER,1J2

sub87910-30C91

main87910-30C90-C0iGRL1#,GWL10201112-201307

BLACK,212

sub87910-30C91

main87910-30C90-C1iGRL1#,GWL10201112-201307

BLACK OPAL MC.,214

sub87910-30C91

main87910-30C90-C2iGRL1#,GWL10201112-201307

STARLIGHT BLACK GF.,217

sub87910-30C91

main87910-30C90-D0iGRL1#,GWL10201112-201307

CRIMSON CS. GF.,3S8

sub87910-30C91

main87910-30C90-E0iGRL1#,GWL10201112-201307

SLEEK ECRU ME.,4U7

sub87910-30C91

main87910-30C90-E1iGRL1#,GWL10201112-201307

FIRE AGATE M.M.,4V3

sub87910-30C91

main87910-30C90-J0iGRL1#,GWL10201112-201307

LAPIS LAZULI MC.,8V3

sub87910-30C91

main87910-30C90-J1iGRL1#,GWL10201112-201307

METEOR BLUE M.M.,8W3

sub87910-30C91

main87910-30C91-A0iGRL10201308-201510

WHITE PEARL CS.,077

main87910-30C91-A1iARL10,AWL10,GRL1#,GWL10201309-202007

WHITE NOVA GF.,083

main87910-30C91-A2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

main87910-30C91-B0iGRL10201308-201609

MERCURY GRAY MC.,1H9

main87910-30C91-B1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-202007

SONIC SILVER,1J2

main87910-30C91-B2iAWL10,GRL1#,GWL10201409-202007

SONIC TITANIUM,1J7

main87910-30C91-B3iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

main87910-30C91-C0iARL10,AWL10,GRL12,16,GWL10201308-201608

BLACK,212

main87910-30C91-C0iARL10,AWL10,GRL12,16,GWL10201510

main87910-30C91-C0iARL10,AWL10,GRL12,16,GWL10201510

main87910-30C91-C1iGRL10201308-201409

BLACK OPAL MC.,214

main87910-30C91-C2iGRL10201308-201510

STARLIGHT BLACK GF.,217

main87910-30C91-C3iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

main87910-30C91-D0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

CRIMSON CS. GF.,3S8

main87910-30C91-D2iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

main87910-30C91-E0iGRL1#,GWL10201308-201309

SLEEK ECRU ME.,4U7

main87910-30C91-E1iGRL10201308-201510

FIRE AGATE M.M.,4V3

main87910-30C91-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main87910-30C91-J0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

LAPIS LAZULI MC.,8V3

main87910-30C91-J1iGRL10201308-201510

METEOR BLUE M.M.,8W3

main87910-30C91-J2iARL10,AWL10,GRL1#,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

main87910-30C91-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30C90-A0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

WHITE PEARL CS.,077

main8791A-30C90-A1iARL10,AWL10,GRL1#,GWL10201309-202007

WHITE NOVA GF.,083

main8791A-30C90-A2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

main8791A-30C90-B0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201609

MERCURY GRAY MC.,1H9

main8791A-30C90-B1iGRL10201112-202007

SONIC SILVER,1J2

main8791A-30C90-B2iAWL10,GRL1#,GWL10201409-202007

SONIC TITANIUM,1J7

main8791A-30C90-B3iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

main8791A-30C90-C0iARL10,AWL10,GRL1#,GWL10201112-202007

BLACK,212

main8791A-30C90-C1iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201409

BLACK OPAL MC.,214

main8791A-30C90-C2iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

STARLIGHT BLACK GF.,217

main8791A-30C90-C3iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

main8791A-30C90-D0iGRL10201112-201510

CRIMSON CS. GF.,3S8

main8791A-30C90-D1iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

main8791A-30C90-E0iGRL11,15,GWL10201112-201510

SLEEK ECRU ME.,4U7

main8791A-30C90-E1iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

FIRE AGATE M.M.,4V3

main8791A-30C90-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main8791A-30C90-J0iGRL10201112-201510

LAPIS LAZULI MC.,8V3

main8791A-30C90-J1iGRL10201112-201510

METEOR BLUE M.M.,8W3

main8791A-30C90-J2iARL10,AWL10,GRL1#,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

main8791A-30C90-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

87931OUTER MIRROR, RH

main87931-30C90iGRL10201112-202007

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30D80-A0iGRL1#,GWL10201112-201307

WHITE PEARL CS.,077

sub87940-30D81

main87940-30D80-B0iGRL1#,GWL10201112-201307

MERCURY GRAY MC.,1H9

sub87940-30D81

main87940-30D80-B1iGRL1#,GWL10201112-201307

SONIC SILVER,1J2

sub87940-30D81

main87940-30D80-C0iGRL1#,GWL10201112-201307

BLACK,212

sub87940-30D81

main87940-30D80-C1iGRL1#,GWL10201112-201307

BLACK OPAL MC.,214

sub87940-30D81

main87940-30D80-C2iGRL1#,GWL10201112-201307

STARLIGHT BLACK GF.,217

sub87940-30D81

main87940-30D80-D0iGRL1#,GWL10201112-201307

CRIMSON CS. GF.,3S8

sub87940-30D81

main87940-30D80-E0iGRL1#,GWL10201112-201307

SLEEK ECRU ME.,4U7

sub87940-30D81

main87940-30D80-E1iGRL1#,GWL10201112-201307

FIRE AGATE M.M.,4V3

sub87940-30D81

main87940-30D80-J0iGRL1#,GWL10201112-201307

LAPIS LAZULI MC.,8V3

sub87940-30D81

main87940-30D80-J1iGRL1#,GWL10201112-201307

METEOR BLUE M.M.,8W3

sub87940-30D81

main87940-30D81-A0iGRL10201308-201510

WHITE PEARL CS.,077

main87940-30D81-A1iARL10,AWL10,GRL1#,GWL10201309-202007

WHITE NOVA GF.,083

main87940-30D81-A2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

main87940-30D81-B0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201609

MERCURY GRAY MC.,1H9

main87940-30D81-B1iGRL10201308-202007

SONIC SILVER,1J2

main87940-30D81-B2iAWL10,GRL1#,GWL10201409-202007

SONIC TITANIUM,1J7

main87940-30D81-B3iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

main87940-30D81-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

main87940-30D81-C0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-202007

BLACK,212

main87940-30D81-C0iARL10,AWL10,GRL12,16,GWL10201510-202007

main87940-30D81-C1iGRL10201308-201409

BLACK OPAL MC.,214

main87940-30D81-C2iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

STARLIGHT BLACK GF.,217

main87940-30D81-C3iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

main87940-30D81-D0iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

CRIMSON CS. GF.,3S8

main87940-30D81-D2iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

main87940-30D81-E0iGRL1#,GWL10201308-201309

SLEEK ECRU ME.,4U7

main87940-30D81-E1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

FIRE AGATE M.M.,4V3

main87940-30D81-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main87940-30D81-J0iGRL10201308-201510

LAPIS LAZULI MC.,8V3

main87940-30D81-J1iGRL10..8FC;AWL10,GRL11,15,GWL10201308-201510

METEOR BLUE M.M.,8W3

main87940-30D81-J2iARL10,AWL10,GRL1#,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

main87940-30D81-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30D80-A0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

WHITE PEARL CS.,077

main8794A-30D80-A1iARL10,AWL10,GRL1#,GWL10201309-202007

WHITE NOVA GF.,083

main8794A-30D80-A2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

main8794A-30D80-B0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201609

MERCURY GRAY MC.,1H9

main8794A-30D80-B1iARL10,AWL10,GRL1#,GWL10201112-202007

SONIC SILVER,1J2

main8794A-30D80-B2iARL10,AWL10,GRL1#,GWL10201409-202007

SONIC TITANIUM,1J7

main8794A-30D80-B3iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

main8794A-30D80-C0iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

BLACK,212

main8794A-30D80-C1iGRL10201112-201409

BLACK OPAL MC.,214

main8794A-30D80-C2iGRL10201112-201510

STARLIGHT BLACK GF.,217

main8794A-30D80-C3iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

main8794A-30D80-D0iGRL10201112-201510

CRIMSON CS. GF.,3S8

main8794A-30D80-D1iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

main8794A-30D80-E0iGRL10201112-201510

SLEEK ECRU ME.,4U7

main8794A-30D80-E1iGRL10201112-201510

FIRE AGATE M.M.,4V3

main8794A-30D80-E2iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main8794A-30D80-J0iGRL10201112-201510

LAPIS LAZULI MC.,8V3

main8794A-30D80-J1iGRL10201112-201510

METEOR BLUE M.M.,8W3

main8794A-30D80-J2iARL10,AWL10,GRL1#,GWL10201510-202007

HEAT BLUE CONTRAST LAYERI,8X1

main8794A-30D80-J3iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

87961MIRROR OUTER, LH

main87961-30D80iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

9017906146

main90179-06146

11 parts on this diagram · 2 diagrams in section
