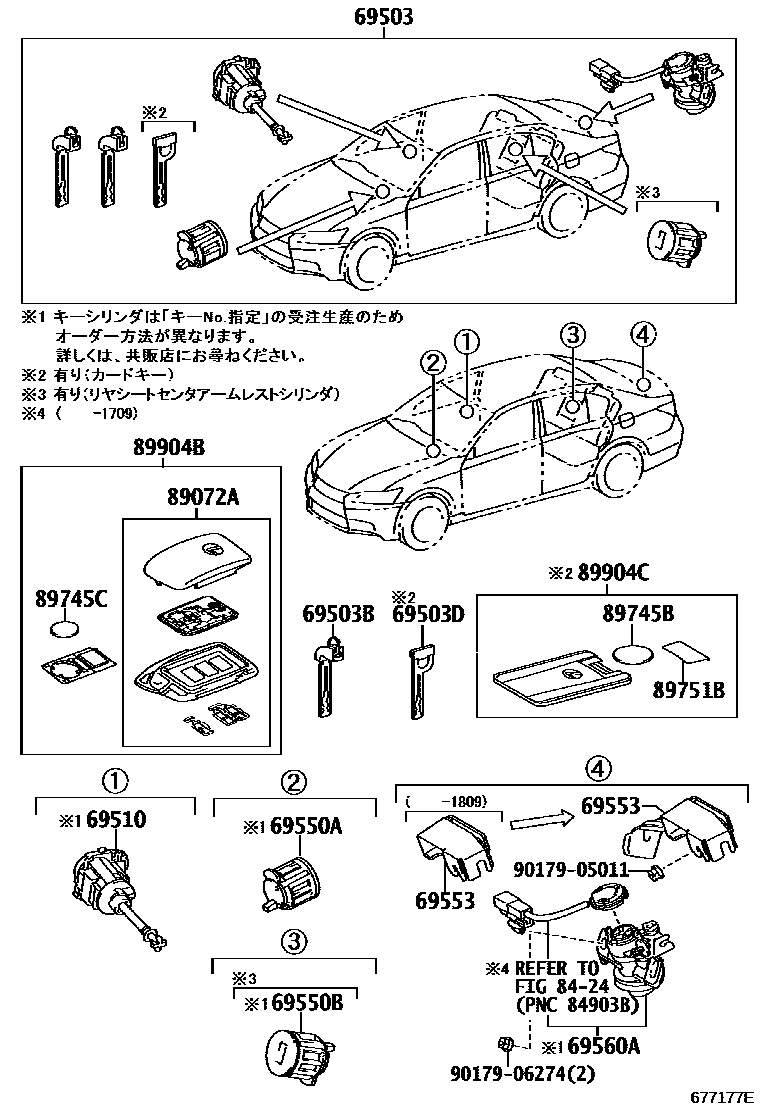

Toyota LEXUS GS SERIES — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-30D20iGRL10201112-201510

sub69005-30E60

main69005-30E60iARL10,GRL1#201510-201709

main69005-30E61iARL10,GRL1#201709-202007

main69005-30F00iAWL10,GWL10201203-201510

main69005-30F40iAWL10,GWL10201510-201709

sub69005-30E60

main69005-30F41iAWL10,GWL10201709-202007

69503BKEY, CUT

main69515-30370iAWL10,GRL1#,GWL10201112-202007

69503DKEY, CUT(CARD KEY)

main69515-30330iARL10,AWL10,GRL1#,GWL10201510-202007

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-30300iAWL10,GRL1#,GWL10201112-202007

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iAWL10,GRL1#,GWL10201112-202007

69550BCYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK

main69550-50040iGRL1#201112-202007

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iGRL10201112-201809

main69553-30021iARL10,AWL10,GRL1#,GWL10201809-202007

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-30360iAWL10,GRL1#,GWL10201112-201709

main69560-30370iARL10,AWL10,GRL1#,GWL10201709-202007

8424

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-30310iGRL1#201112-201203

sub89072-30311

main89072-30311iGRL1#201204-201206

sub89072-30312

main89072-30312iGRL11,15;GRL10..8FC201207-201510

main89072-30330iGWL10201203-201204

sub89072-30331

main89072-30331iGWL10201204-201206

sub89072-30332

main89072-30332iAWL10,GWL10201207-201510

main89072-30400iARL10,GRL1#201510-202007

main89072-30690iAWL10,GWL10201510-202007

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iARL10,AWL10,GRL1#,GWL10201510-202007

89745CBATTERY, TRANSMITTER

main89745-45010iGRL10201112-202007

sub89745-50020

89751BCOVER, TRANSMITTER HOUSING

main8975B-50020iARL10,AWL10,GRL1#,GWL10201510-202007

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30A50iGRL1#201112-201206

sub89904-30A51

main89904-30A51iGRL11,15;GRL10..8FC201207-201310

sub89904-30A52

main89904-30A52iGRL1#201310-201510

main89904-30A70iGWL10201203-201206

sub89904-30A71

main89904-30A71iAWL10,GWL10201207-201310

sub89904-30A72

main89904-30A72iAWL10,GWL10201310-201510

main89904-30E00iARL10,GRL1#201510-202007

main89904-30K10iAWL10,GWL10201510-202007

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-30790iARL10,GRL1#201510-202007

main89904-30800iAWL10,GWL10201510-202007

9017905011

main90179-05011

9017906274

main90179-06274

17 parts on this diagram · 1 diagram in section
