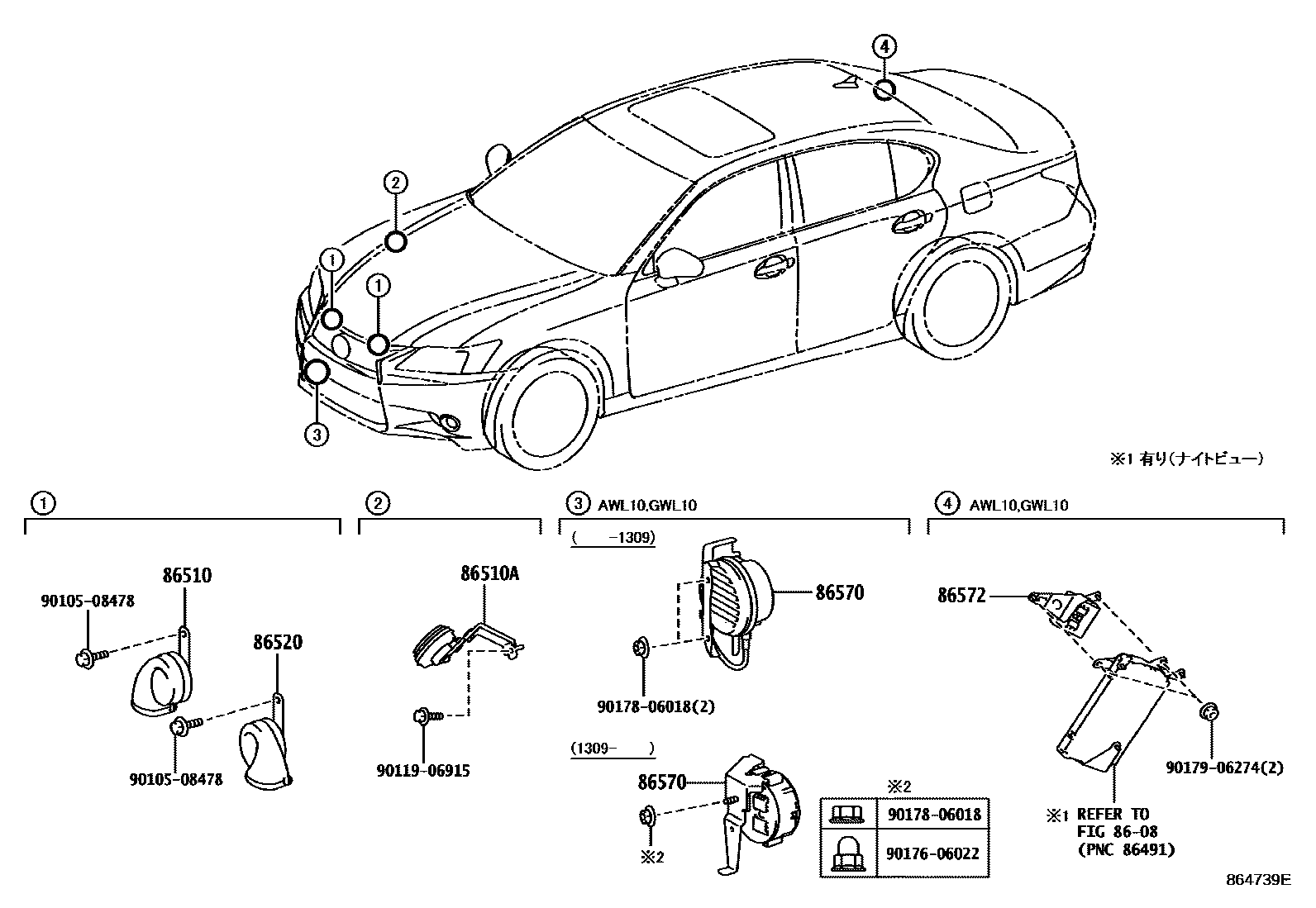

Toyota LEXUS GS SERIES — HORN

0001 1 0002 1

8608

86510HORN ASSY, HIGH PITCHED

main86510-30790iARL10,AWL10,GRL1#,GWL10201112-202007

86510AHORN ASSY, SECURITY

main86560-30030iGRL10201112-201809

86520HORN ASSY, LOW PITCHED

main86520-30670iARL10,AWL10,GRL1#,GWL10201112-202007

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30010iGWL10201203-201309

main86570-30030iAWL10,GWL10201510-202007

main86570-30050iAWL10,GWL10201309-201510

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-30010iGWL10201203-201309

main86572-30030iAWL10,GWL10201309-202007

9010508478

main90105-08478

9011906915

main90119-06915

9017606022

main90176-06022

9017806018

main90178-06018

9017906274

main90179-06274

11 parts on this diagram · 2 diagrams in section
