Toyota LEXUS GS SERIES — HEV CONTROL COMPUTER
8401SWITCH & RELAY & COMPUTER
G1167BCONTROLLER, OIL PUMP MOTOR
G1168ABRACKET, OIL PUMP MOTOR CONTROLLER
G9020CRELAY, OIL PUMP
8271530P80BRACKET,WIRING HARNESS CLAMP
main82715-30P80
9011906915
main90119-06915
9011906A19
main90119-06A19
7 parts on this diagram · 1 diagram in section

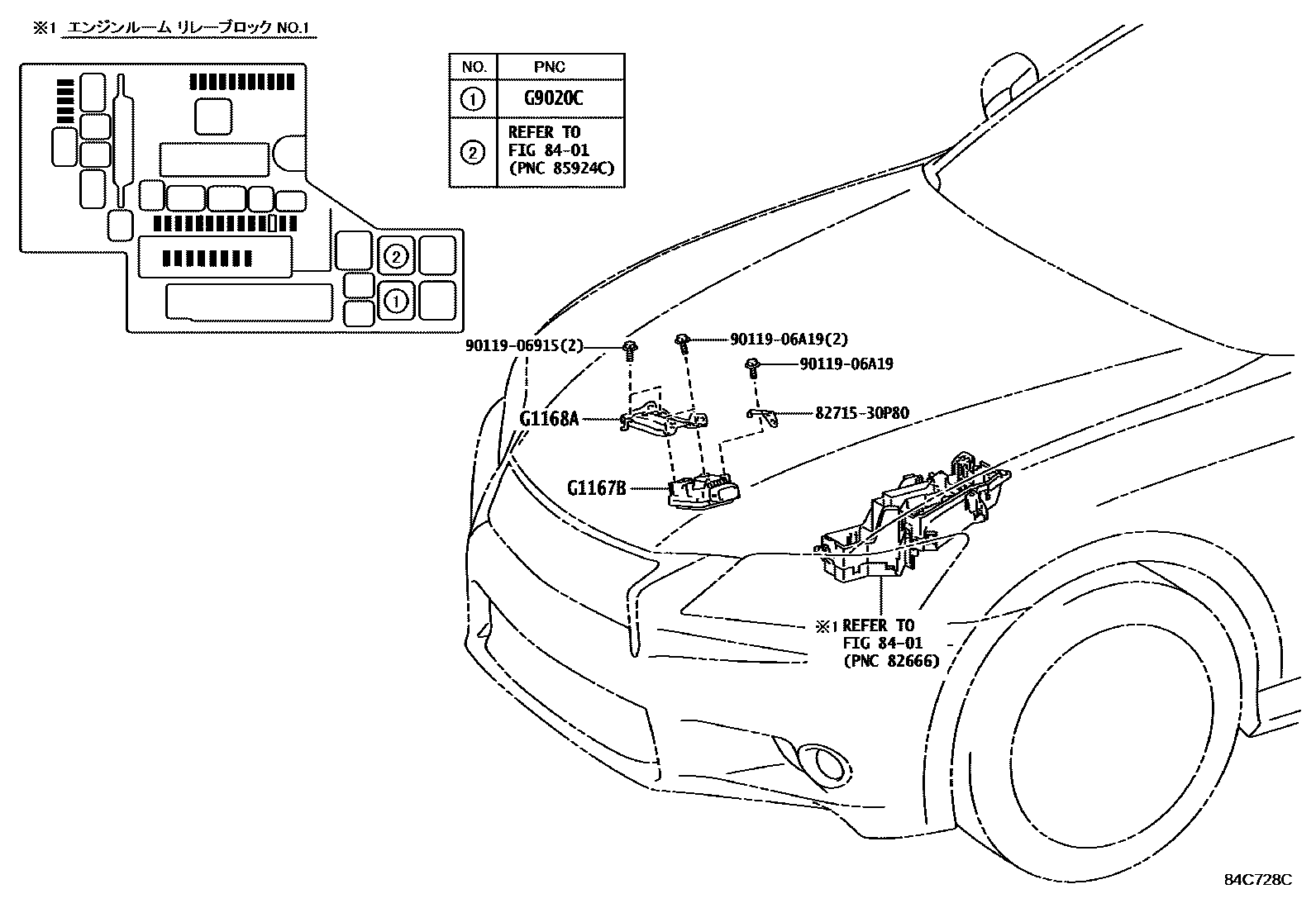

HEV CONTROL COMPUTER for Toyota LEXUS GS SERIES
This section contains 7 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota LEXUS GS SERIES. Key components include: SWITCH & RELAY & COMPUTER, CONTROLLER, OIL PUMP MOTOR, BRACKET, OIL PUMP MOTOR CONTROLLER, RELAY, OIL PUMP, BRACKET,WIRING HARNESS CLAMP.
