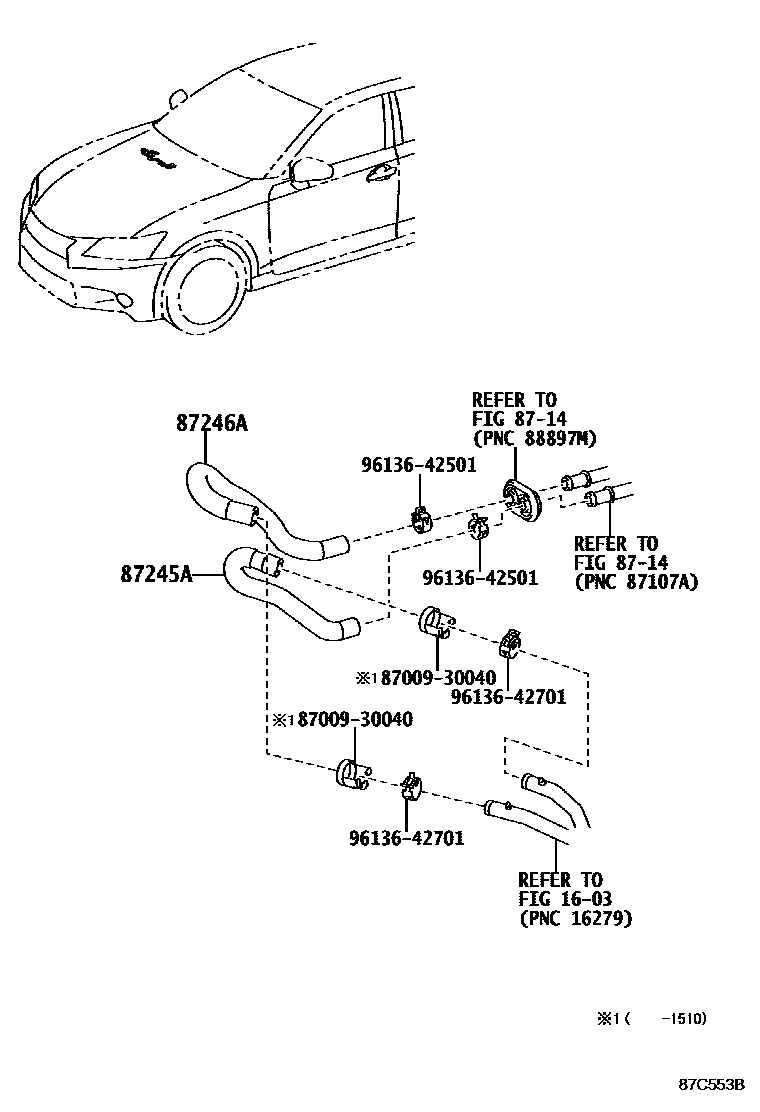

Toyota LEXUS GS SERIES — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-30C30iAWL10201309-202007

main87245-30C60iGWL10201203-202007

main87245-30D10iGRL12,16201510-202007

main87245-53180iGRL11,15;GRL10..8FC201112-201608

main87245-53200iARL10201609-202007

87246AHOSE, HEATER WATER, OUTLET A

main87245-30A41iGRL11,15;GRL10..8FC201112-201608

main87245-30C40iAWL10201309-202007

main87245-30C70iGWL10201203-202007

main87245-30D30iGRL12,16201510-202007

main87245-53210iARL10201609-202007

8700930040HOSE SET, WATER, NO.1

main87009-30040

9613642501

main96136-42501

9613642701

main96136-42701

7 parts on this diagram · 5 diagrams in section
