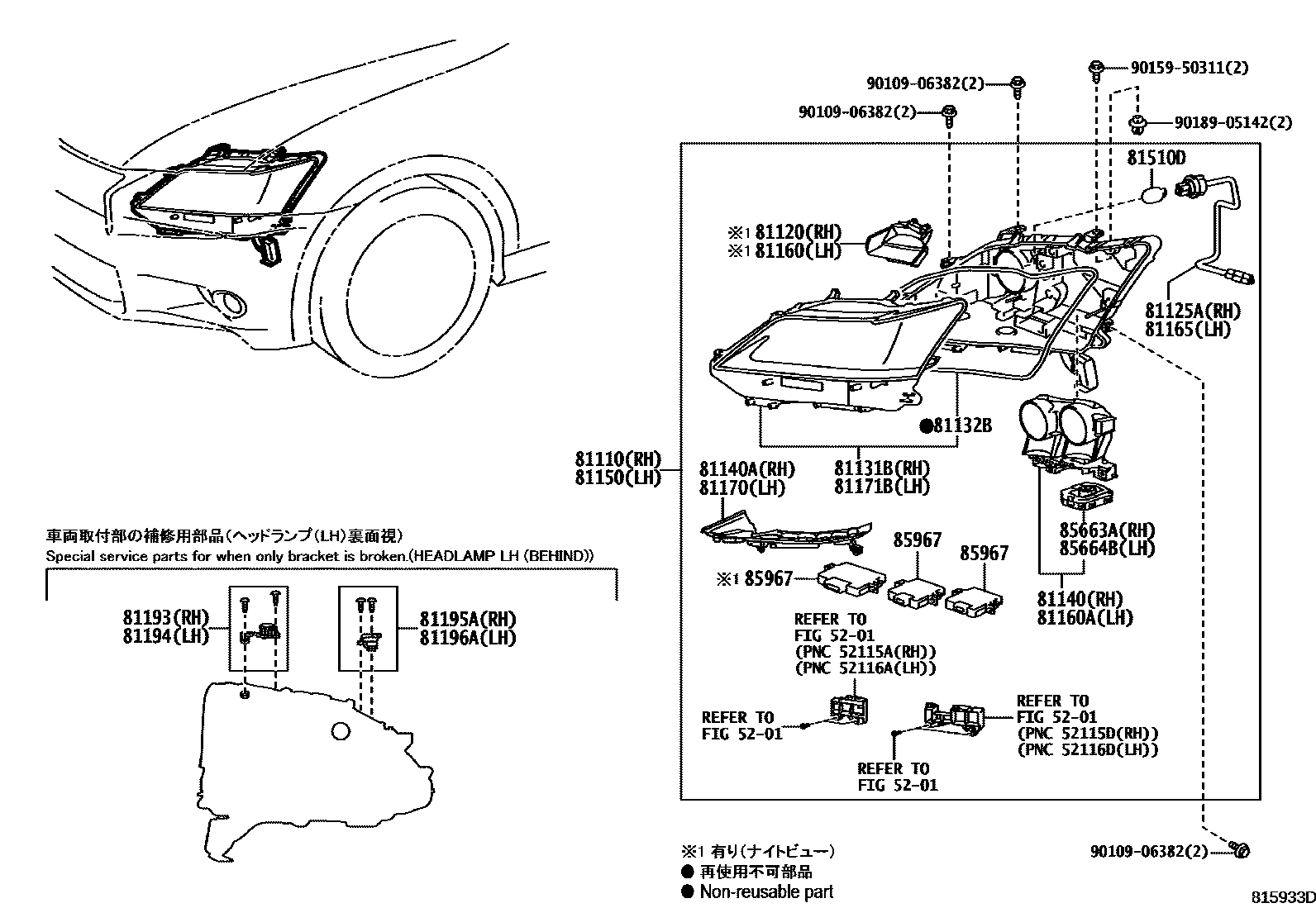

Toyota LEXUS GS SERIES — HEADLAMP
5201
81110HEADLAMP ASSY, RH
81125CORD, HEADLAMP
81125ACORD, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81140UNIT ASSY, HEADLAMP LED, RH
81140AUNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH
81150HEADLAMP ASSY, LH
81160AUNIT ASSY, HEADLAMP LED, LH
81165CORD, HEADLAMP, LH
81170UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH
81171BHEAD LAMP LENS, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
85663AMOTOR, HEADLAMP SWIVEL, RH
85664BMOTOR, HEADLAMP SWIVEL, LH
85967COMPUTER, LIGHT CONTROL
9010906382
main90109-06382
9015950311
main90159-50311
9018905142
main90189-05142
26 parts on this diagram · 4 diagrams in section
