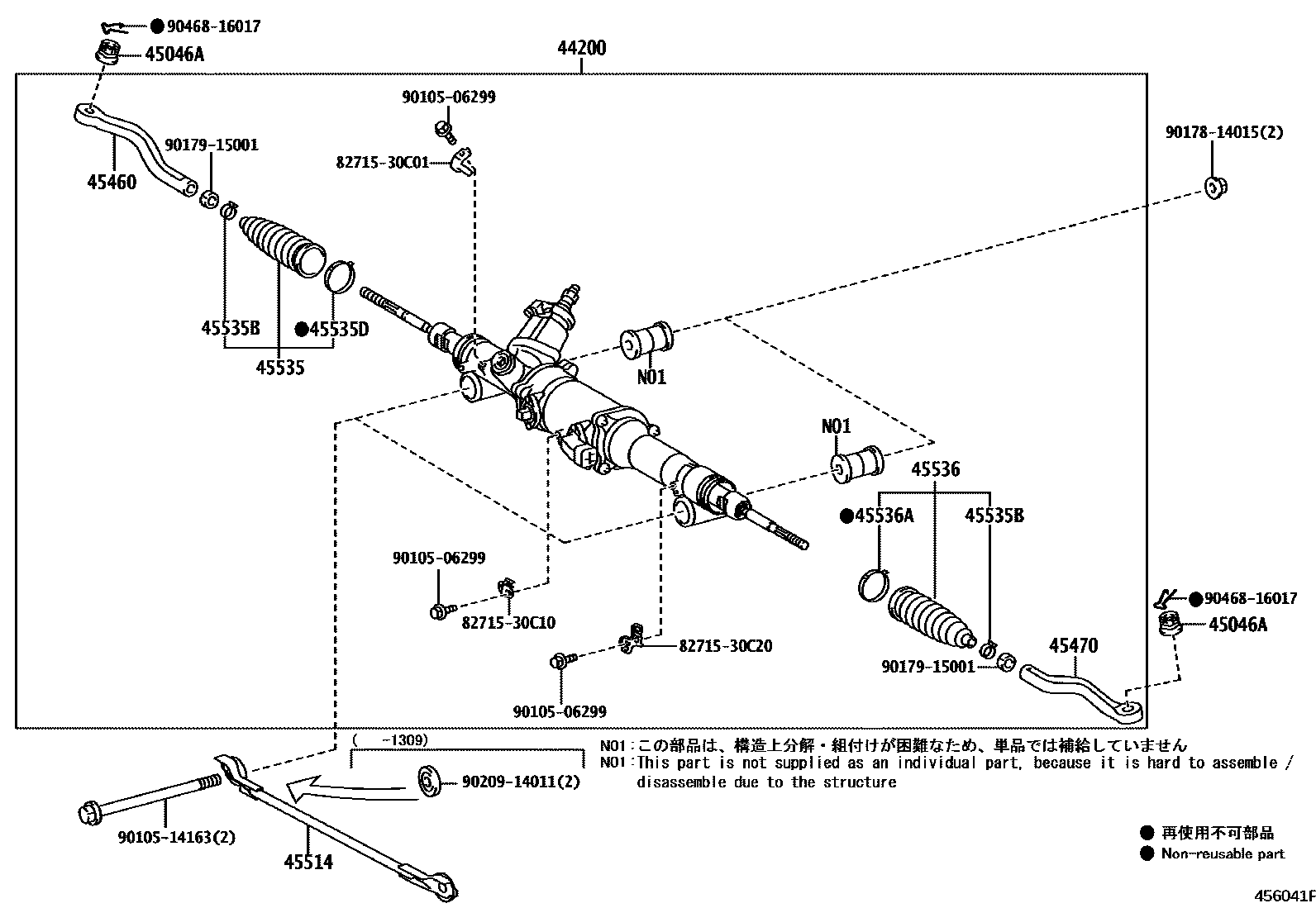

Toyota LEXUS GS SERIES — FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-30730iARL10,AWL10,GRL11,12,GWL10201206-202007

main44200-30760iGRL16201206-202007

main44200-30B70iGRL10,11,GWL10201112-201206

sub44200-30730

main44200-30B90iGRL15201112-201206

sub44200-30760

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGRL10201112-202007

main90178-12017iGRL16201112-202007

45460ROD ASSY, TIE, RH

main45460-39715iGRL15201112-202007

main45463-30190iGRL10201112-202007

45470ROD ASSY, TIE, LH

main45464-30090iGRL10201112-202007

main45470-39255iGRL16201112-202007

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-30020iARL10,AWL10,GRL11,12,GWL10201309-202007

45535BOOT, STEERING RACK, NO.1

main45535-39055iGRL15201401-202007

main45535-59045iGRL15201112-201401

sub45535-59065

main45535-59065iAWL10,GRL10,11,GWL10201401-202007

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iGRL10201112-202007

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

45536BOOT, STEERING RACK, NO.2

main45535-39055iGRL15201401-202007

main45535-59045iGRL15201112-201401

sub45535-59065

main45535-59065iAWL10,GRL10,11,GWL10201401-202007

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iGRL10201112-202007

8271530C01BRACKET,WIRING HARNESS CLAMP

main82715-30C01

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

19 parts on this diagram · 2 diagrams in section
