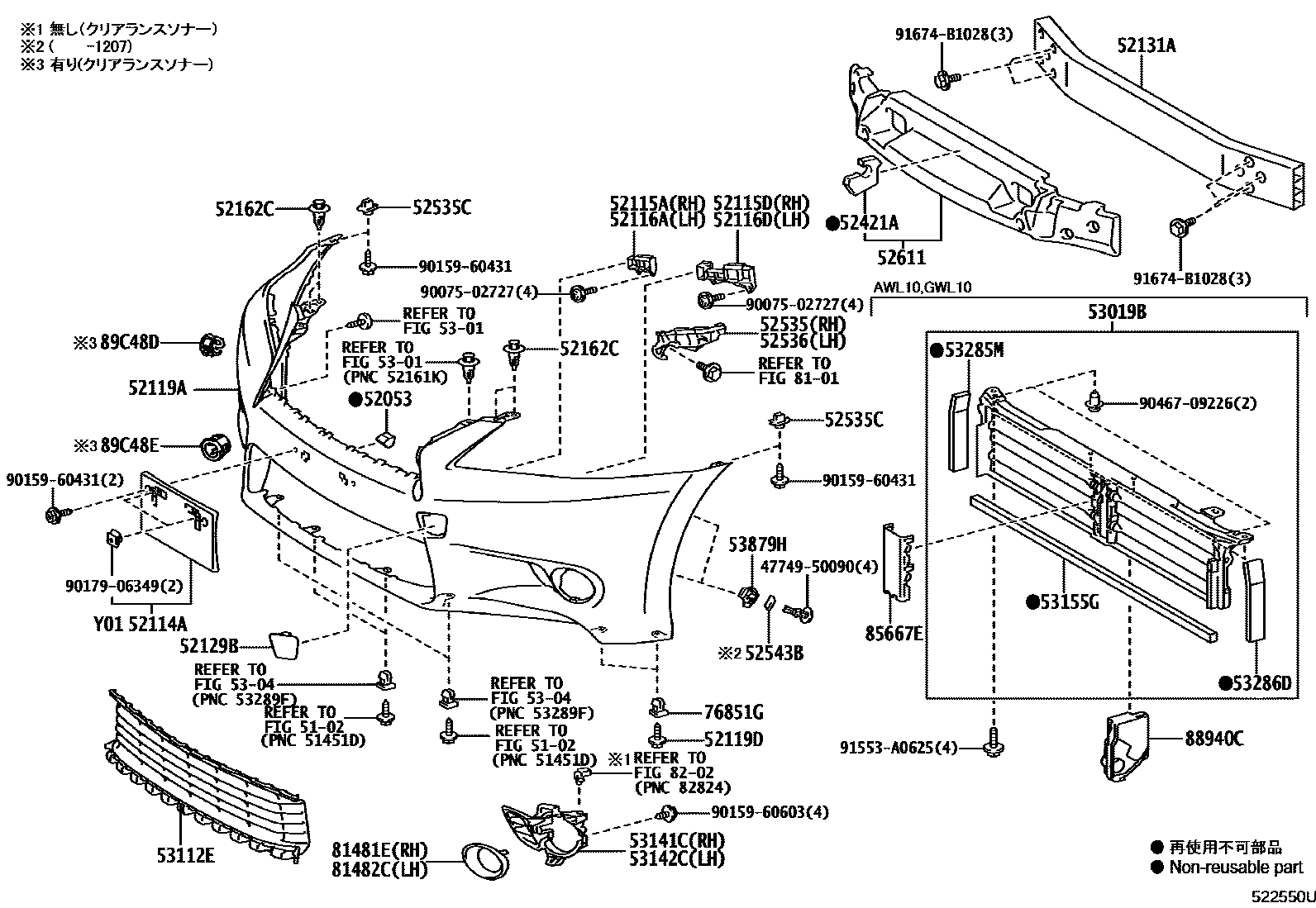

Toyota LEXUS GS SERIES — FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT OR F SPORT X LINE 0004 1F SPORT OR F SPORT X LINE 0005 1��������� 0006 1��������������

5102

52053PAD SUB-ASSY, FRONT BUMPER

main52421-30110iGRL10201112-201510

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-30220iGRL10..8FC;AWL10,GRL11,15,GWL10201112-201510

main52114-30260iARL10,AWL10,GRL1#,GWL10201510-202007

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-30140iAWL10,GRL1#,GWL10201112-201510

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-30150iAWL10,GRL1#,GWL10201112-201510

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-30090iAWL10,GRL1#,GWL10201112-201510

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52116-30100iAWL10,GRL1#,GWL10201112-201510

52119ACOVER, FRONT BUMPER

main52119-30C20-A0iGRL10,11201112-201510

WHITE PEARL CS.,077

sub52119-3A923

main52119-30C20-B0iGRL10,11201112-201510

MERCURY GRAY MC.,1H9

sub52119-3A923

main52119-30C20-B1iGRL10,11201112-201510

SONIC SILVER,1J2

sub52119-3A923

main52119-30C20-B2iGRL10,11201409-201510

SONIC TITANIUM,1J7

sub52119-3A923

main52119-30C20-C0iGRL10,11201112-201510

BLACK,212

sub52119-3A923

main52119-30C20-C1iGRL10,11201112-201409

BLACK OPAL MC.,214

sub52119-3A923

main52119-30C20-C2iGRL10,11201112-201510

STARLIGHT BLACK GF.,217

sub52119-3A923

main52119-30C20-D0iGRL10,11201112-201510

CRIMSON CS. GF.,3S8

sub52119-3A923

main52119-30C20-E0iGRL10,11201112-201309

SLEEK ECRU ME.,4U7

sub52119-3A923

main52119-30C20-E1iGRL10,11201112-201510

FIRE AGATE M.M.,4V3

sub52119-3A923

main52119-30C20-J0iGRL10,11201112-201510

LAPIS LAZULI MC.,8V3

sub52119-3A923

main52119-30C20-J1iGRL10,11201112-201510

METEOR BLUE M.M.,8W3

sub52119-3A923

main52119-30C40-A0iGRL10,11201112-201309

WHITE PEARL CS.,077

sub52119-3A925

main52119-30C40-A0iGRL15,GWL10201112-201309

sub52119-3A925

main52119-30C40-B0iGRL15,GWL10201112-201309

MERCURY GRAY MC.,1H9

sub52119-3A925

main52119-30C40-B0iGRL15,GWL10201112-201309

sub52119-3A925

main52119-30C40-B1iGRL10,11201112-201309

sub52119-3A925

main52119-30C40-B1iGRL15,GWL10201112-201309

SONIC SILVER,1J2

sub52119-3A925

main52119-30C40-C0iGRL10,11201112-201309

BLACK,212

sub52119-3A925

main52119-30C40-C0iGRL15,GWL10201112-201309

sub52119-3A925

main52119-30C40-C1iGRL15,GWL10201112-201309

sub52119-3A925

main52119-30C40-C1iGRL10,11201112-201309

BLACK OPAL MC.,214

sub52119-3A925

main52119-30C40-C2iGRL15,GWL10201112-201309

STARLIGHT BLACK GF.,217

sub52119-3A925

main52119-30C40-C2iGRL10,11201112-201309

sub52119-3A925

main52119-30C40-D0iGRL10,11201112-201309

sub52119-3A925

main52119-30C40-D0iGRL10,11201112-201309

CRIMSON CS. GF.,3S8

sub52119-3A925

main52119-30C40-E0iGRL15,GWL10201112-201309

sub52119-3A925

main52119-30C40-E0iGRL15,GWL10201112-201309

SLEEK ECRU ME.,4U7

sub52119-3A925

main52119-30C40-E1iGRL15,GWL10201112-201309

FIRE AGATE M.M.,4V3

sub52119-3A925

main52119-30C40-E1iGRL15,GWL10201112-201309

sub52119-3A925

main52119-30C40-J0iGRL15,GWL10201112-201309

LAPIS LAZULI MC.,8V3

sub52119-3A925

main52119-30C40-J0iGRL10,11201112-201309

sub52119-3A925

main52119-30C40-J1iGRL10,11201112-201309

sub52119-3A925

main52119-30C40-J1iGRL10,11201112-201309

METEOR BLUE M.M.,8W3

sub52119-3A925

main52119-30C41-A0iAWL10,GRL15,GWL10201309-201510

WHITE PEARL CS.,077

sub52119-3A950

main52119-30C41-A0iGRL10,11201309-201510

sub52119-3A950

main52119-30C41-B0iAWL10,GRL15,GWL10201309-201510

MERCURY GRAY MC.,1H9

sub52119-3A950

main52119-30C41-B0iGRL10,11201309-201510

sub52119-3A950

main52119-30C41-B1iGRL10,11201309-201510

sub52119-3A950

main52119-30C41-B1iAWL10,GRL15,GWL10201309-201510

SONIC SILVER,1J2

sub52119-3A950

main52119-30C41-B2iGRL10,11201409-201510

SONIC TITANIUM,1J7

sub52119-3A950

main52119-30C41-B2iAWL10,GRL15,GWL10201409-201510

sub52119-3A950

main52119-30C41-C0iAWL10,GRL15,GWL10201309-201510

sub52119-3A950

main52119-30C41-C0iGRL10,11201309-201510

BLACK,212

sub52119-3A950

main52119-30C41-C1iGRL10,11201309-201409

sub52119-3A950

main52119-30C41-C1iGRL10,11201309-201409

BLACK OPAL MC.,214

sub52119-3A950

main52119-30C41-C2iAWL10,GRL15,GWL10201309-201510

sub52119-3A950

main52119-30C41-C2iGRL10,11201309-201510

STARLIGHT BLACK GF.,217

sub52119-3A950

main52119-30C41-D0iAWL10,GRL15,GWL10201309-201510

sub52119-3A950

main52119-30C41-D0iGRL10,11201309-201510

CRIMSON CS. GF.,3S8

sub52119-3A950

main52119-30C41-E1iAWL10,GRL15,GWL10201309-201510

sub52119-3A950

main52119-30C41-E1iGRL10,11201309-201510

FIRE AGATE M.M.,4V3

sub52119-3A950

main52119-30C41-J0iGRL10,11201309-201510

LAPIS LAZULI MC.,8V3

sub52119-3A950

main52119-30C41-J0iAWL10,GRL15,GWL10201309-201510

sub52119-3A950

main52119-30C41-J1iAWL10,GRL15,GWL10201309-201510

METEOR BLUE M.M.,8W3

sub52119-3A950

main52119-30C41-J1iAWL10,GRL15,GWL10201309-201510

sub52119-3A950

main52119-3F970-A0iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC QUARTZ,085

main52119-3F970-B0iAWL10,GRL1#,GWL10201510-201609

MERCURY GRAY MC.,1H9

main52119-3F970-B1iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC SILVER,1J2

main52119-3F970-B2iARL10,AWL10,GRL1#,GWL10201510-202007

SONIC TITANIUM,1J7

main52119-3F970-B6iARL10,AWL10,GRL1#,GWL10201609-202007

DK.GRAY MC.,1G0

main52119-3F970-C0iARL10,AWL10,GRL1#,GWL10201510-202007

BLACK,212

main52119-3F970-C1iARL10,AWL10,GRL1#,GWL10201510-202007

GRAPHITE BLACK GF.,223

main52119-3F970-D0iARL10,AWL10,GRL1#,GWL10201510-202007

RED MC.CS.,3R1

main52119-3F970-E0iARL10,AWL10,GRL1#,GWL10201510-202007

AMBER CS.,4X2

main52119-3F970-J0iARL10,AWL10,GRL1#,GWL10201510-202007

DEEP BLUE MC.,8X5

52119DSCREW, NO.1

main90159-60477iAWL10,GRL1#,GWL10201112-202007

52129BCOVER, FRONT BUMPER, LOWER

main52129-30120-A0iAWL10,GRL1#,GWL10201112-201510

WHITE PEARL CS.,077

main52129-30120-B0iAWL10,GRL1#,GWL10201112-201510

MERCURY GRAY MC.,1H9

main52129-30120-B1iAWL10,GRL1#,GWL10201112-201510

SONIC SILVER,1J2

main52129-30120-B2iAWL10,GRL1#,GWL10201409-201510

SONIC TITANIUM,1J7

main52129-30120-C0iAWL10,GRL1#,GWL10201112-201510

BLACK,212

main52129-30120-C1iGRL1#,GWL10201112-201409

BLACK OPAL MC.,214

main52129-30120-C2iGRL1#,GWL10201112-201510

STARLIGHT BLACK GF.,217

main52129-30120-D0iGRL1#,GWL10201112-201510

CRIMSON CS. GF.,3S8

main52129-30120-E0iGRL1#,GWL10201112-201309

SLEEK ECRU ME.,4U7

main52129-30120-E1iAWL10,GRL1#,GWL10201112-201510

FIRE AGATE M.M.,4V3

main52129-30120-J0iAWL10,GRL1#,GWL10201112-201510

LAPIS LAZULI MC.,8V3

main52129-30120-J1iGRL1#,GWL10201112-201510

METEOR BLUE M.M.,8W3

52131AREINFORCEMENT, FRONT BUMPER

main52131-30300iGRL10201112-201510

main52131-30360iARL10,AWL10,GRL1#,GWL10201510-202007

52162CPIECE, FRONT BUMPER

main52161-16010iGRL10201112-202007

52421APAD, FRONT BUMPER

main52421-30120iGRL10201112-201510

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30230iGRL10201112-201510

main52535-30270iARL10,AWL10,GRL1#,GWL10201510-202007

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iGRL10201112-202007

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30220iGRL10201112-201510

main52536-30260iARL10,AWL10,GRL1#,GWL10201510-202007

52543BSEAL, FRONT BUMPER

main52543-30120iGRL1#,GWL10201112-201207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30420iGRL10201112-201510

main52611-30490iARL10,AWL10,GRL1#,GWL10201510-202007

5301

53019BSHUTTER SUB-ASSY, RADIATOR

main53019-30010iAWL10,GWL10201203-201510

main53019-30040iAWL10,GWL10201510-202007

5304

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-30240iGRL10201112-201510

53141CGARNISH, RADIATOR GRILLE

main53141-30160iGRL10201112-201510

main53141-30360iARL10,AWL10,GRL1#,GWL10201510-202007

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-30060iGRL10201112-201510

main53142-30160iARL10,AWL10,GRL1#,GWL10201510-202007

53155GSEAL, RADIATOR GRILLE

main53155-30060iAWL10,GWL10201203-202007

53285MSEAL, RADIATOR SIDE AIR, RH

main53157-30020iAWL10,GWL10201203-202007

53286DSEAL, RADIATOR SIDE AIR, LH

main53156-30010iAWL10,GWL10201203-202007

53879HRETAINER, FRONT FENDER LINER

main53879-30040iGRL1#,GWL10201112-201206

main53879-30050iAWL10,GRL1#,GWL10201207-201610

main53879-30060iARL10,AWL10,GRL1#,GWL10201611-202007

76851GGROMMET, SCREW, NO.1

main90189-06193iAWL10,GRL1#,GWL10201112-202007

8101

81481ECOVER, FOG LAMP, RH

main81481-30110iGRL10201112-201510

81482CCOVER, FOG LAMP, LH

main81482-30150iGRL10201112-201510

8202

85667ECOVER, MOTOR

main85667-30030iAWL10,GWL10201203-202007

88940CACTUATOR ASSY, SWING GRILLE

main88940-30100iAWL10,GWL10201203-202007

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER

4774950090CLIP, PIN HOLD

main47749-50090

9007502727

main90075-02727

9015960431

main90159-60431

9015960603

main90159-60603

9017906349

main90179-06349

9046709226

main90467-09226

91553A0625

main91553-A0625

91674B1028

main91674-B1028
