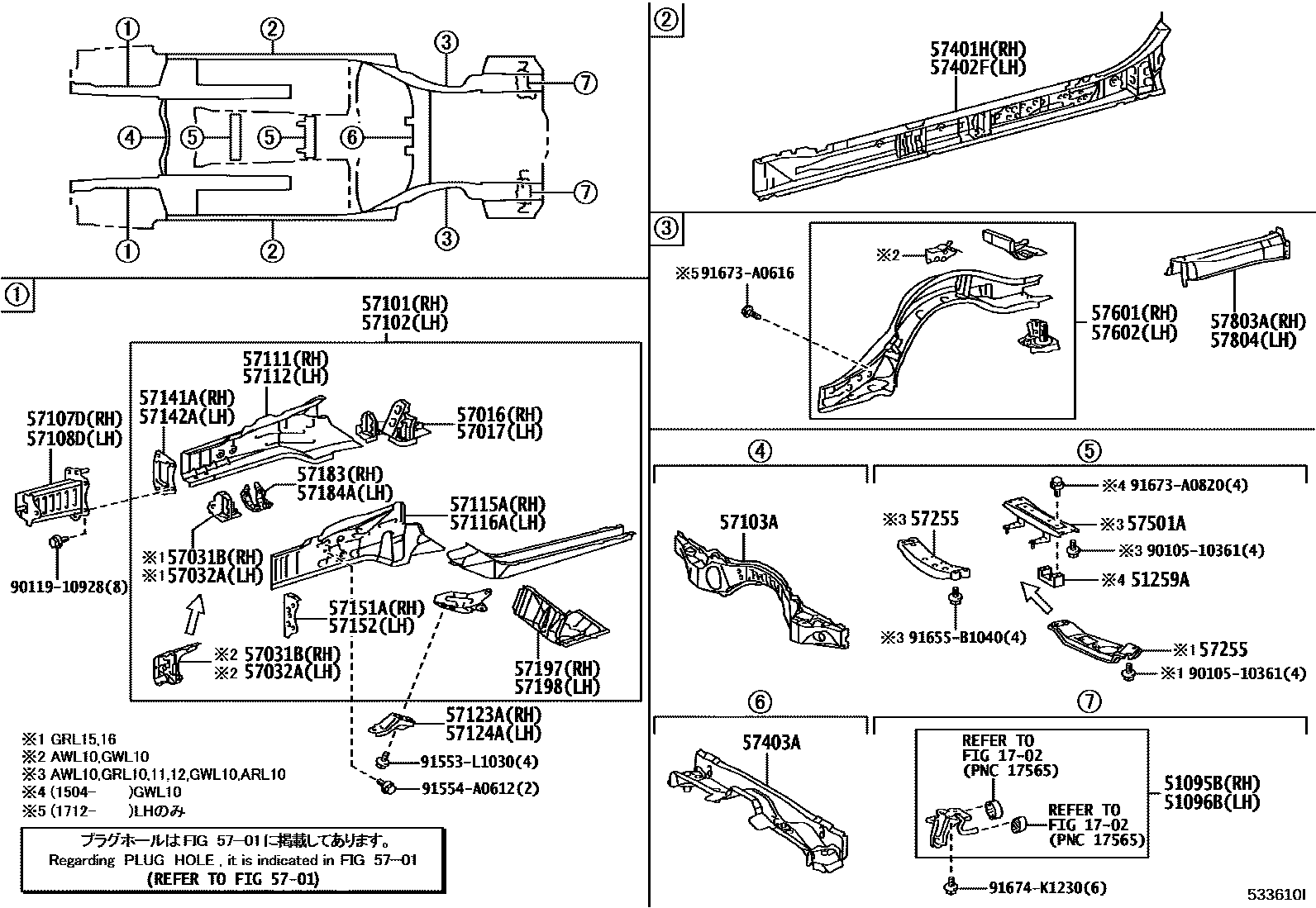

Toyota LEXUS GS SERIES — FLOOR SIDE MEMBER

1702

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-30020iGRL1#,GWL10201112-201209

sub51095-30021

main51095-30021iAWL10,GRL1#,GWL10201210-202007

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-30010iARL10,GRL1#201112-202007

main51096-30020iAWL10,GWL10201203-202007

51259AWEIGHT, NO.4 CROSSMEMBER DUMPER

main51259-30070iGWL10201504-202007

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iGRL10..8FC;AWL10,GRL11,GWL10201112-202007

main57016-30051iGRL16201112-202007

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iARL10,AWL10,GRL11,12,GWL10201112-202007

main57017-30051iGRL15201112-202007

57031BBRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH

main57031-30010iGRL15201112-202007

main57031-30020iAWL10,GWL10201203-202007

57032ABRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH

main57032-30010iGRL16201112-202007

main57032-30020iAWL10,GWL10201203-202007

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30190iARL10,GRL11,12201112-201911

sub57101-53070

main57101-30200iGRL15201112-201911

sub57101-53080

main57101-30210iAWL10,GWL10201203-201911

sub57101-53090

main57101-53070iARL10,GRL12201911-202007

main57101-53080iGRL16201911-202007

main57101-53090iAWL10,GWL10201911-202007

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30170iGRL10201112-201911

sub57102-53030

main57102-30180iGRL15201112-201911

sub57102-53060

main57102-30190iAWL10,GWL10201203-201911

sub57102-53070

main57102-53030iARL10,GRL12201911-202007

main57102-53060iGRL16201911-202007

main57102-53070iAWL10,GWL10201911-202007

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30021iGRL1#,GWL10201112-201206

sub57103-30022

main57103-30022iGRL10201206-202007

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-24030iAWL10,GRL1#,GWL10201409-202007

main57107-30061iGRL10201112-201408

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-24030iAWL10,GRL1#,GWL10201409-201511

main57108-30120iGRL1#,GWL10201112-201212

sub57108-30121

main57108-30121iGRL10201301-201408

main57108-30160iARL10,AWL10,GRL1#,GWL10201512-202007

57111MEMBER, FRONT SIDE, RH

main57111-30082iARL10,GRL11,12201112-202007

main57111-30092iAWL10,GRL16,GWL10201112-202007

57112MEMBER, FRONT SIDE, LH

main57112-30082iGRL10201112-202007

main57112-30102iAWL10,GRL16,GWL10201112-202007

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30060iGRL10201112-202007

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-30030iGRL10201112-202007

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30020iGRL15201112-202007

main57305-30040iAWL10,GRL10,11,GWL10201112-201711

sub57305-30041

main57305-30041iARL10,AWL10,GRL12,GWL10201712-202007

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30020iGRL15201112-202007

main57306-30040iARL10,AWL10,GRL11,12,GWL10201112-201711

sub57306-30041

main57306-30041iARL10,AWL10,GRL12,GWL10201712-202007

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iARL10,AWL10,GRL1#,GWL10201112-202007

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGRL10201112-202007

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGRL10201112-202007

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGRL10201112-202007

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iGRL10201112-202007

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

57197BOX, TORQUE, FRONT RH

main57197-30050iGRL10201112-202007

57198BOX, TORQUE, FRONT LH

main57198-30050iARL10,AWL10,GRL1#,GWL10201112-202007

57255MEMBER, ENGINE REAR MOUNTING

main57209-30030iGRL16201112-202007

main57255-30080iGRL10..8FC;AWL10,GWL10201203-202007

main57255-30130iGRL11201112-201608

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-30120iGRL10..8FC;AWL10,GRL11,15,GWL10201112-202007

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-30110iGRL10201112-202007

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57809-30020iGRL10201112-201707

sub57809-30021

main57809-30021iARL10,AWL10,GRL1#,GWL10201708-202007

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main51405-30040iGWL10201112-201712

sub51405-30041

main51405-30041iAWL10,GWL10201801-202007

main51449-30111iARL10,GRL12201801-202007

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30920iGRL10201112-201803

sub57601-30925

main57601-30921iAWL10,GWL10201203-201803

sub57601-30926

main57601-30925iARL10,GRL1#201803-202007

main57601-30926iAWL10,GWL10201803-202007

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30932iARL10,GRL1#201112-201712

sub57602-30935

sub91673-A0616

main57602-30933iAWL10,GWL10201203-201712

sub57602-30936

sub91673-A0616

main57602-30935iARL10,GRL1#201712-201803

sub57602-30939

main57602-30936iAWL10,GWL10201712-201803

sub57602-30940

main57602-30939iARL10,GRL1#201803-202007

main57602-30940iAWL10,GWL10201803-202007

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-30030iGRL10201112-202007

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-30040iGRL10201112-202007

9010510361

main90105-10361

9011910928

main90119-10928

91553L1030

main91553-L1030

91554A0612

main91554-A0612

91655B1040

main91655-B1040

91673A0616

main91673-A0616

91673A0820

main91673-A0820

91674K1230

main91674-K1230

45 parts on this diagram · 1 diagram in section
