Toyota LEXUS GS SERIES — ENGINE OVERHAUL GASKET KIT

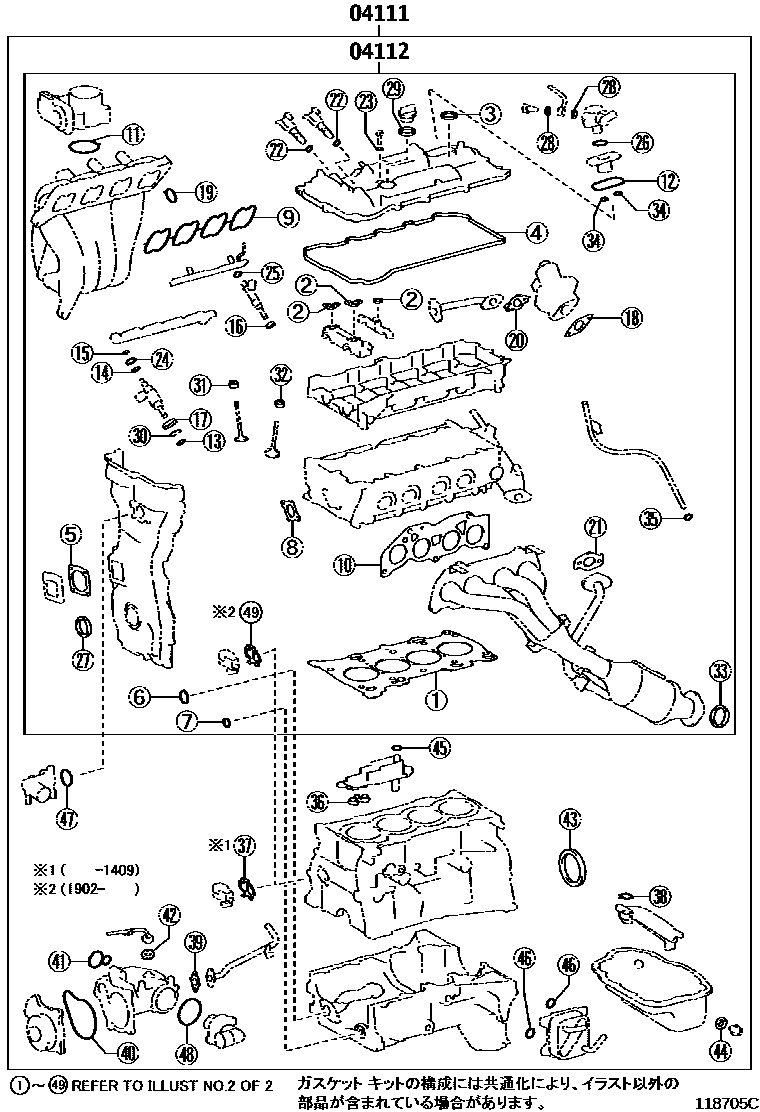

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31602i201112-201411
main04111-31783i201112-201608
sub04111-31D60
main04111-31941i201112-201503
sub04111-31942
main04111-31942i201503-201505
main04111-31943i201505-201510
main04111-31950i201203-201206
sub04111-31951
main04111-31951i201206-201503
sub04111-31952
main04111-31952i201503-201902
sub04111-31D50
main04111-31C30i201510-201706
sub04111-31C31
main04111-31C31i201706-202007
sub04111-31C32
main04111-31C40i201510-201706
sub04111-31C41
main04111-31C41i201706-202007
sub04111-31C42
main04111-31D50i201902-202007
main04111-36181i201309-201312
sub04111-36182
main04111-36210i201312-201409
sub04111-36211
main04111-36211i201409-202007
main04111-36290i201609-201710
sub04111-36291
main04111-36291i201710-202004
main04111-36400i202004-202007
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31333i201112-201608
sub04112-31334
main04112-31363i201112-201411
main04112-31681i201112-201510
main04112-31690i201203-201206
sub04112-31691
main04112-31691i201206-201902
sub04112-31692
main04112-31692i201902-202007
main04112-31880i201510-201706
sub04112-31881
main04112-31881i201706-202007
sub04112-31882
main04112-36150i201309-201312
sub04112-36151
main04112-36160i201312-201409
sub04112-36161
main04112-36161i201409-201902
sub04112-36162
main04112-36162i201902-202007
main04112-36240i201609-201710
sub04112-36241
main04112-36241i201710-202004
main04112-36350i202004-202007

2 parts on this diagram · 12 diagrams in section
