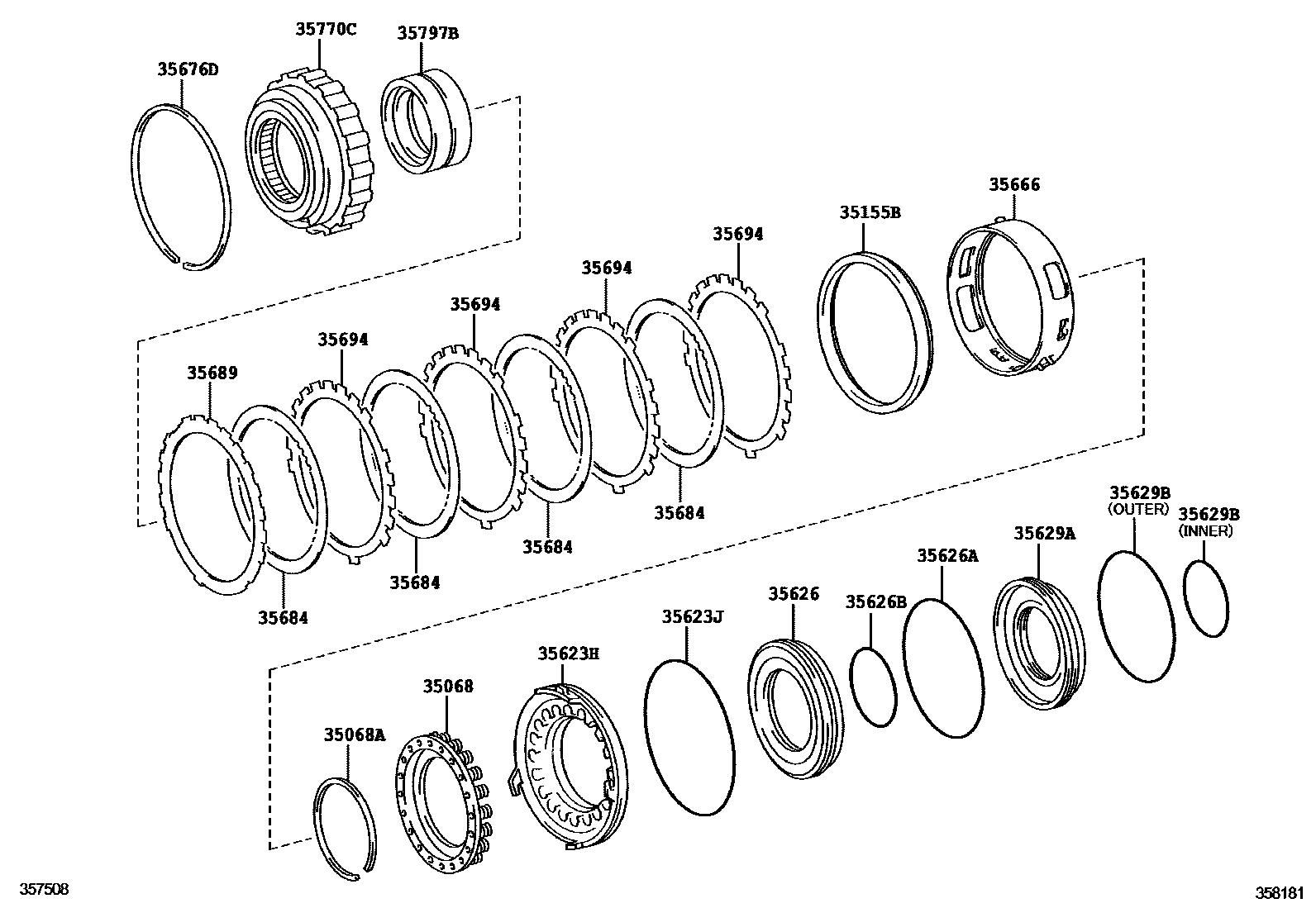

Toyota LEXUS GS SERIES — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A760E,A760H 0002 1A960E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-22010iGRL11201112-201608

main35068-60010iGRL10201112-202007

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iGRL11201112-201608

main90520-61001iGRL15201112-202007

35155BSLEEVE, REAR COVER

main35155-50010iGRL16201112-202007

35623HPISTON, 1ST & REVERSE BRAKE

main35623-22030iGRL11201112-201608

main35623-50030iGRL15201112-202007

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99087iGRL10201112-202007

main90301-99151iGRL11201112-201608

35626SLEEVE, BRAKE REACTION

main35626-22020iGRL11201112-201608

main35626-50010iGRL15201112-202007

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99144iGRL10201112-202007

main90301-99155iGRL11201112-201608

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-69009iGRL11201112-201608

main90301-79003iGRL10201112-202007

35629APISTON, BRAKE, NO.4

main35629-22030iGRL11201112-201608

main35629-50020iGRL16201112-202007

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-56007iGRL11201112-201608

main90301-67006iGRL15201112-202007

main90301-94004iGRL11201112-201608

main90301-99084iGRL10201112-202007

35666TUBE, BRAKE APPLY

main35666-22020iGRL11201112-201206

sub35666-22030

main35666-22030iGRL11201206-201608

main35666-50010iGRL10201112-202007

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99131iGRL15201112-202007

main90521-99133iGRL11201112-201608

35684DISC, BRAKE, NO.4

main35684-22010iGRL11201112-201210

sub35684-30010

main35684-30010iGRL11201210-201608

main35684-50010iGRL10201112-201403

main35684-60030iGRL15201404-202007

35689FLANGE, BRAKE, NO.4

main35689-22020iGRL11201112-201403

sub35689-22100

main35689-22030iGRL11201112-201403

sub35689-22110

main35689-22040iGRL11201112-201403

sub35689-22120

main35689-22050iGRL11201112-201403

sub35689-22130

main35689-22060iGRL11201112-201403

sub35689-22140

main35689-22070iGRL11201112-201403

sub35689-22150

main35689-22080iGRL11201112-201403

sub35689-22160

main35689-22090iGRL11201112-201403

sub35689-22170

main35689-22100iGRL11201403-201608

main35689-22110iGRL11201403-201608

main35689-22120iGRL11201403-201608

main35689-22130iGRL11201403-201608

main35689-22140iGRL11201403-201608

main35689-22150iGRL11201403-201608

main35689-22160iGRL11201403-201608

main35689-22170iGRL11201403-201608

main35689-22180iGRL11201403-201608

main35689-22190iGRL11201403-201608

main35689-60270iGRL16201112-202007

main35689-60280iGRL10201112-202007

main35689-60290iGRL15201112-202007

main35689-60300iGRL15201112-202007

main35689-60310iGRL15201112-202007

main35689-60320iGRL16201112-202007

main35689-60330iGRL15201112-202007

main35689-60340iGRL10201112-202007

main35689-60350iGRL16201112-202007

main35689-60360iGRL15201112-202007

main35689-60370iGRL10201112-202007

35694PLATE, BRAKE, NO.4

main35694-22010iGRL11201112-201608

main35694-60011iGRL15201112-202007

35770CCLUTCH ASSY, 1WAY NO.3

main35770-22070iGRL11201112-201608

main35770-50010iGRL10201112-201404

sub35770-60030

main35770-60030iGRL15201404-202007

35797BRACE, 1 WAY CLUTCH, INNER

main35797-22030iGRL11201112-201608

main35797-50031iGRL15201112-202007

17 parts on this diagram · 2 diagrams in section
