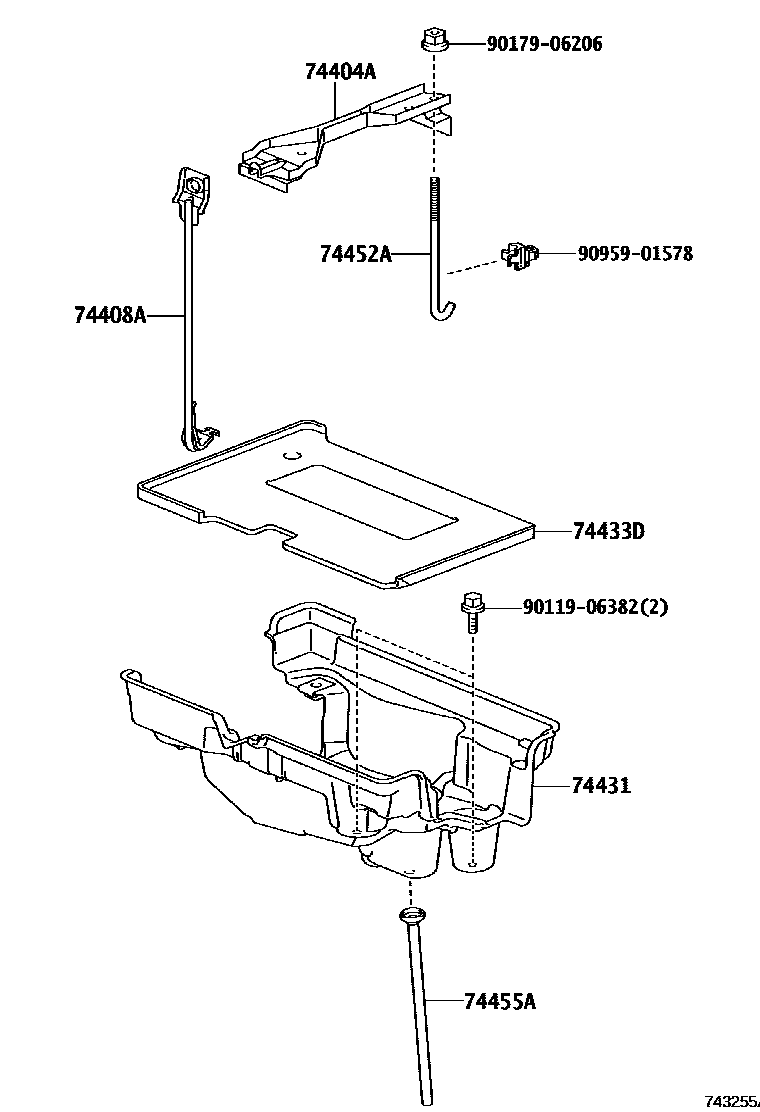

Toyota LEXUS GS SERIES — BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iARL10,GRL1#201112-202007

main74406-30030iAWL10,GWL10201203-202007

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iGRL10201112-202007

74431TRAY, BATTERY

main74431-30222iARL10,GRL1#201112-202007

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-22010iARL10,GRL1#201612-202007

main74433-30022iGRL11,15;GRL10..8FC201112-201611

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iGRL11,15;GRL10..8FC201112-202007

74455AHOSE, BATTERY DRAIN

main74455-30020iGRL10201112-202007

9011906382

main90119-06382

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 2 diagrams in section
