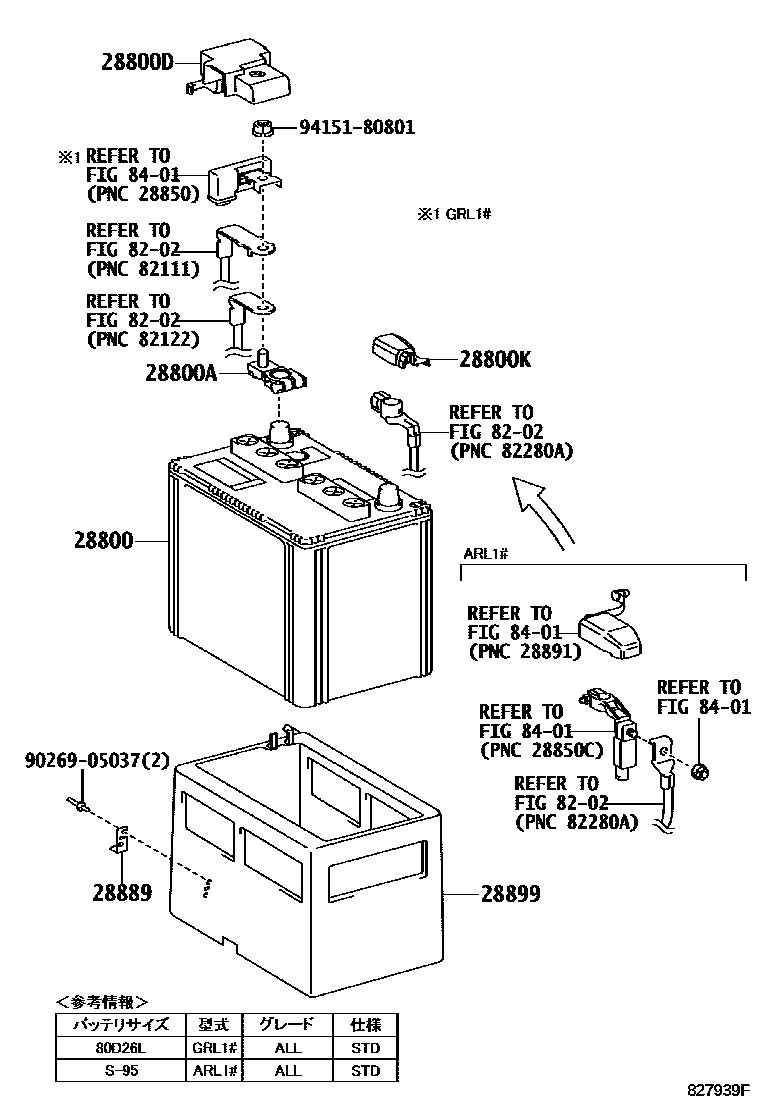

Toyota LEXUS GS SERIES — BATTERY & BATTERY CABLE

0001 1 0002 112V ����� 0003 1HV ����� 0004 1HV ����� 0005 1HV ����� 0006 1HV ����� 0007 1HV �����

28800BATTERY

main28800-31311i2ARFSE,2GRFXE..AWL10,GWL10201203-202007

main28800-31370i2GRFKS,4GRFSE..GRL1#201112-201803

sub28800-31371

main28800-31371i2GRFKS..GRL1#201804-202007

sub28800-31372

main28800-36090i8ARFTS..ARL10201609-201803

sub28800-36091

main28800-36091i8ARFTS..ARL10201804-202007

sub28800-36092

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2ARFSE,2GRFXE..AWL10,GWL10201203-202007

main90982-05061i2GRFSE..GRL10201112-202007

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i8ARFTS..ARL10201609-202007

main82821-30740i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-202007

main82821-30840i2ARFSE,2GRFXE..AWL10,GWL10201203-202007

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRFSE..GRL10201112-201809

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i2GRFSE,4GRFSE..GRL1#201112-202007

28899INSULATOR, BATTERY

main28899-36040i8ARFTS,2GRFKS,4GRFSE..ARL10,GRL1#201510-202007

main28899-38060i2GRFSE..GRL10201112-201510

sub28899-36040

8202

8401

9026905037

main90269-05037

9415180801

main94151-80801

10 parts on this diagram · 7 diagrams in section
