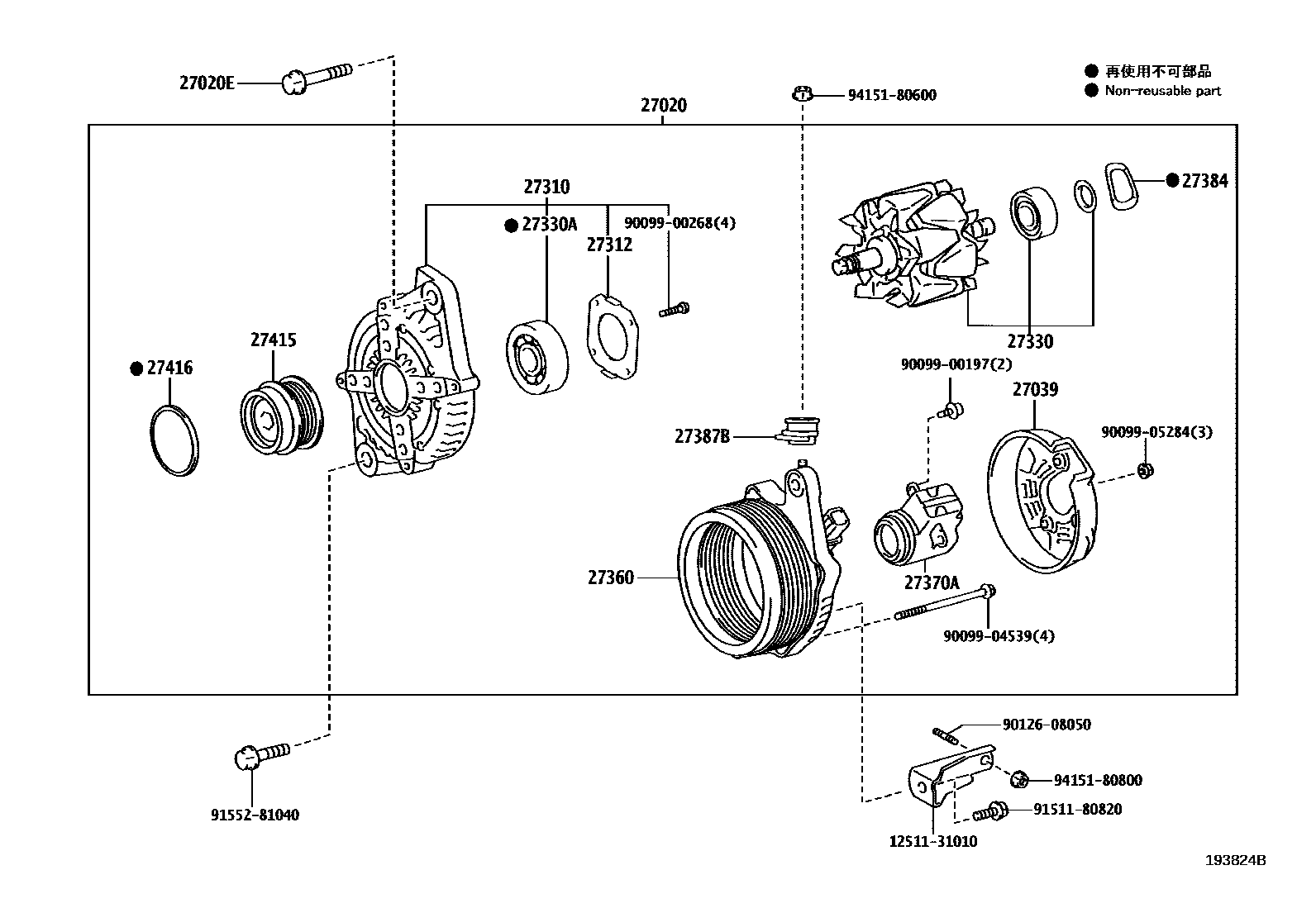

Toyota LEXUS GS SERIES — ALTERNATOR

0001 112V 150A 0002 112V 150A 0003 112V 180A

27020ALTERNATOR ASSY

main27060-31300i2GRFKS..GRL12,16201510-202007

main27060-31311i2GRFSE..GRL10201112-201608

main27060-36130i8ARFTS..ARL10201609-202007

27020EBOLT(FOR ALTERNATOR)

main91552-81070i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-201608

27039COVER, ALTERNATOR REAR END

main27039-31390i2GRFSE..GRL10201112-201608

main27039-31570i2GRFKS..GRL12,16201510-202007

main27039-38150i8ARFTS..ARL10201609-202007

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31220i2GRFSE..GRL10201112-201608

main27310-31570i2GRFKS..GRL12,16201510-202007

main27310-36210i8ARFTS..ARL10201609-202007

27312PLATE, RETAINER

main27312-42010i8ARFTS..ARL10201609-202007

main27312-72100i2GRFKS,4GRFSE..GRL1#201112-202007

27330ROTOR ASSY, ALTERNATOR

main27330-38140i8ARFTS..ARL10201609-202007

main27330-58460i2GRFSE..GRL10201112-202007

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-202007

27360COIL ASSY, ALTERNATOR

main27360-31470i2GRFSE..GRL10201112-201608

main27360-31570i2GRFKS..GRL12,16201510-202007

main27360-36210i8ARFTS..ARL10201609-202007

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i8ARFTS..ARL10201609-202007

main27370-31220i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201112-202007

27384WASHER

main27384-38130i8ARFTS..ARL10201609-202007

main27384-50030i2GRFSE..GRL10201112-202007

27387INSULATOR, TERMINAL

main27387-38130i8ARFTS..ARL10201609-202007

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2GRFSE..GRL10201112-201608

main27387-31580i2GRFKS..GRL12,16201510-202007

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i2GRFKS..GRL12,16201510-202007

main27415-0W130i2GRFSE,4GRFSE..GRL1#201112-201306

sub27415-0W131

main27415-0W131i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201307-201608

main27415-0W230i8ARFTS..ARL10201609-202007

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2GRFSE..GRL10201112-202007

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9012608050

main90126-08050

9151180820

main91511-80820

9155281040

main91552-81040

9415180600

main94151-80600

9415180800

main94151-80800

24 parts on this diagram · 3 diagrams in section
