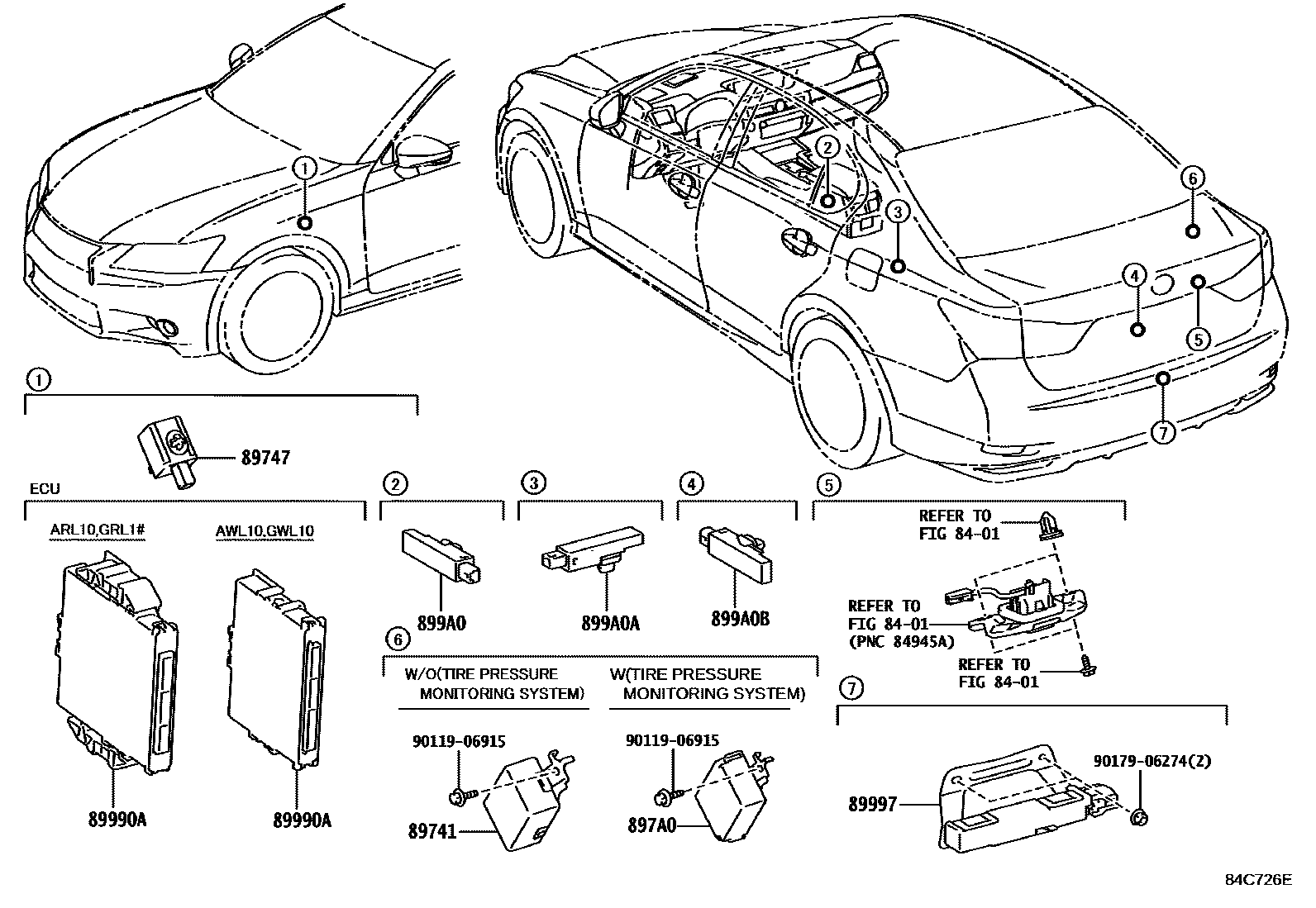

Toyota LEXUS GS SERIES — WIRELESS DOOR LOCK

0001 1 0002 1

8401

89741RECEIVER, DOOR CONTROL

main89740-30320iGRL10,11,GWL10..GEN201201-201308

LEBANON SPEC

sub89740-30321

main89740-30320iGRL10,11,GWL10..GEN201201-201308

SYRIA SPEC

sub89740-30321

main89740-30320iGRL10,11,GWL10..GCC201201-201308

JORDAN SPEC

sub89740-30321

main89740-30321iARL10,AWL10,GRL12,GWL10..GEN201308-202007

main89740-30350iGRL10,11,GWL10..GCC201201-201309

main89740-30410iAWL10,GRL10,11,GWL10..ARL201201-201510

main89740-30410iARL10,AWL10,GRL12,GWL10..ARL201510-202007

BRAZIL SPEC&SPARE TIRE-TEMPORARY(T145/70D18,STEEL)

main89740-30410iARL10,AWL10,GRL12,GWL10..ARL201510-202007

BRAZIL SPEC&SPARE TIRE-GROUND TIRE

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGRL10201201-202007

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897B0-30010iGRL10,11,GWL10..LHD..GEN201201-201510

CHILE SPEC

main897B0-30010iGRL15201201-201510

THAILAND SPEC

main897B0-30480iGWL10..GCC201309-201510

F SPORT&TIRE & DISC WHEEL-235/40R19 SUMMER TIRE 8J F SPORT

main897B0-30490iGRL10,11..GCC201309-201510

main897B0-30500iARL10,GRL12,GWL10..GCC201510-202007

89990ACOMPUTER ASSY, SMART KEY

main89990-30280iGWL10201203-201309

sub89990-30281

main89990-30300iGRL1#201201-201308

sub89990-30420

main89990-30420iGRL1#201309-201312

sub89990-30421

main89990-30421iGRL1#201401-201410

sub89990-30422

main89990-30430iAWL10,GWL10201309-201410

sub89990-30431

main89990-30450iGRL1#201410-201510

sub89990-30451

main89990-30470iAWL10,GWL10201410-201602

sub89990-30471

main89990-30471iAWL10,GWL10201603-201705

sub89990-30472

main89990-30472iAWL10,GWL10201706-201906

sub89990-30473

main89990-30473iAWL10,GWL10201907-202007

sub89990-30474

main89990-30510iARL10,GRL12201510-201608

sub89990-30511

main89990-30511iARL10,GRL12201609-201709

sub89990-30512

main89990-30512iARL10,GRL12201710-201812

sub89990-30513

main89990-30513iARL10,GRL12201901-202007

sub89990-30514

89997ANTENNA, ELECTRICAL KEY

main89997-30080iGRL10201201-202007

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iARL10,AWL10,GRL12,GWL10201201-202007

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iGRL10201201-202007

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60010iGRL10..8FC;AWL10,GRL11,15,GWL10201201-202007

9011906915

main90119-06915

9017906274

main90179-06274

11 parts on this diagram · 2 diagrams in section
