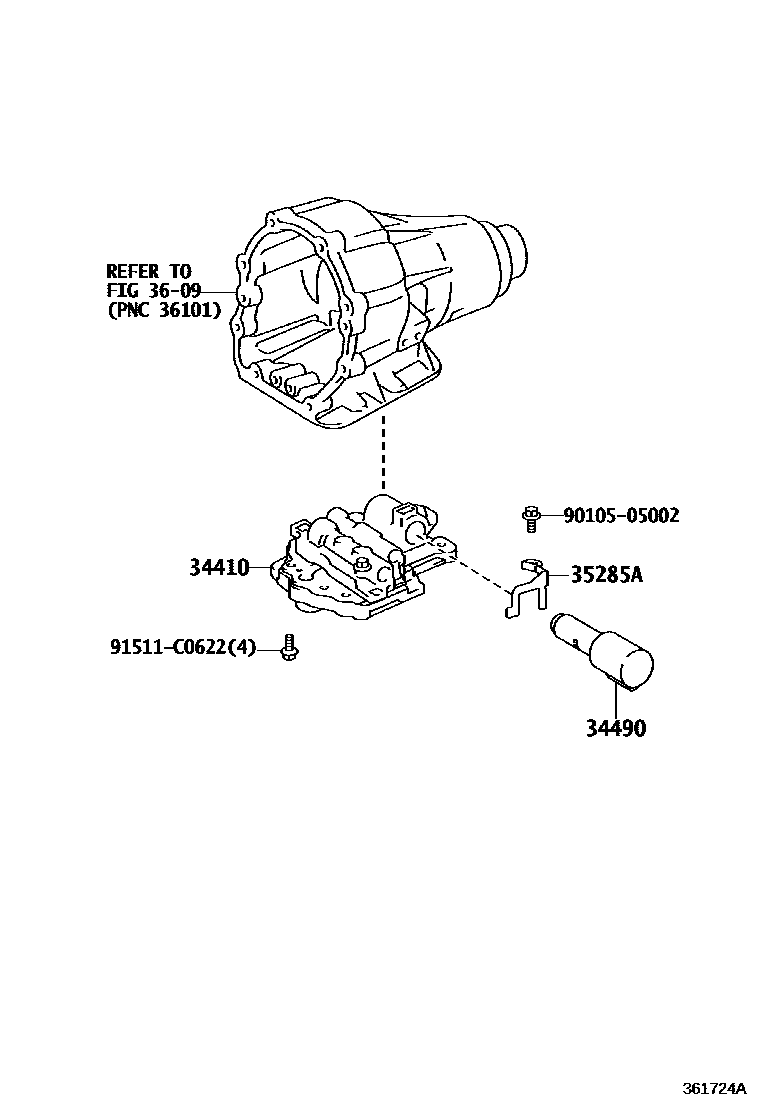

Toyota LEXUS GS SERIES — TRANSFER VALVE BODY & VALVE LEVER

34410BODY ASSY, TRANSFER CONTROL VALVE

main34410-30010iGRL15201201-201510

34490SOLENOID ASSY, TRANSFER CONTROL

main34490-30020iGRL15201201-201510

35285APLATE, SOLENOID LOCK

main35285-30050iGRL15201201-201510

3609

9010505002

main90105-05002

91511C0622

main91511-C0622

6 parts on this diagram · 1 diagram in section
