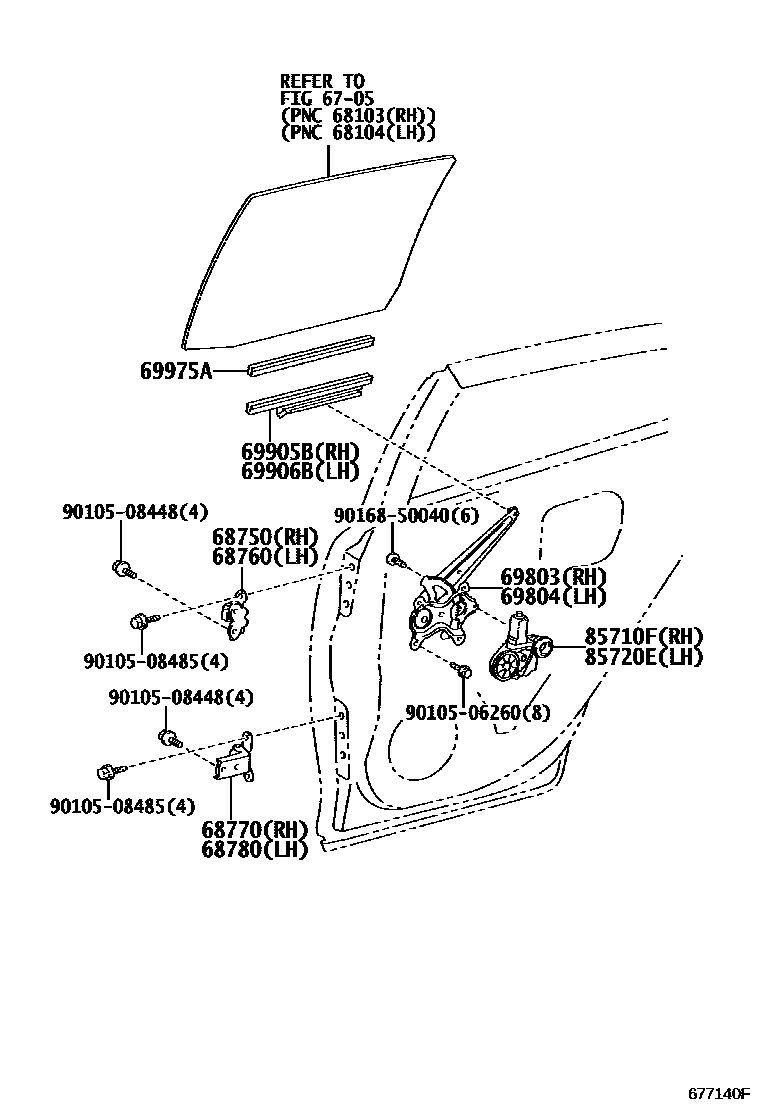

Toyota LEXUS GS SERIES — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iGRL1#,GWL10201201-201205

sub68750-20122

main68750-20122iAWL10,GRL1#,GWL10201206-202007

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iGRL1#,GWL10201201-201205

sub68760-20122

main68760-20122iGRL10201206-202007

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60040iGRL10201201-202007

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60040iGRL10201201-202007

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33050iGRL10201201-202007

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33050iGRL10201201-202007

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iAWL10,GRL1#,GWL10201201-202007

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iAWL10,GRL1#,GWL10201201-202007

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030iAWL10,GRL1#,GWL10201201-202007

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-30430iGRL1#,GWL10201201-201211

sub85720-30431

main85720-30431iGRL10201212-201510

main85720-60341iARL10,AWL10,GRL12,GWL10201510-202007

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30490iGRL1#,GWL10201201-201211

sub85710-30491

main85710-30491iGRL10201212-201510

main85710-60361iARL10,AWL10,GRL12,GWL10201510-202007

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
