Toyota LEXUS GS SERIES — PARTIAL ENGINE ASSEMBLY

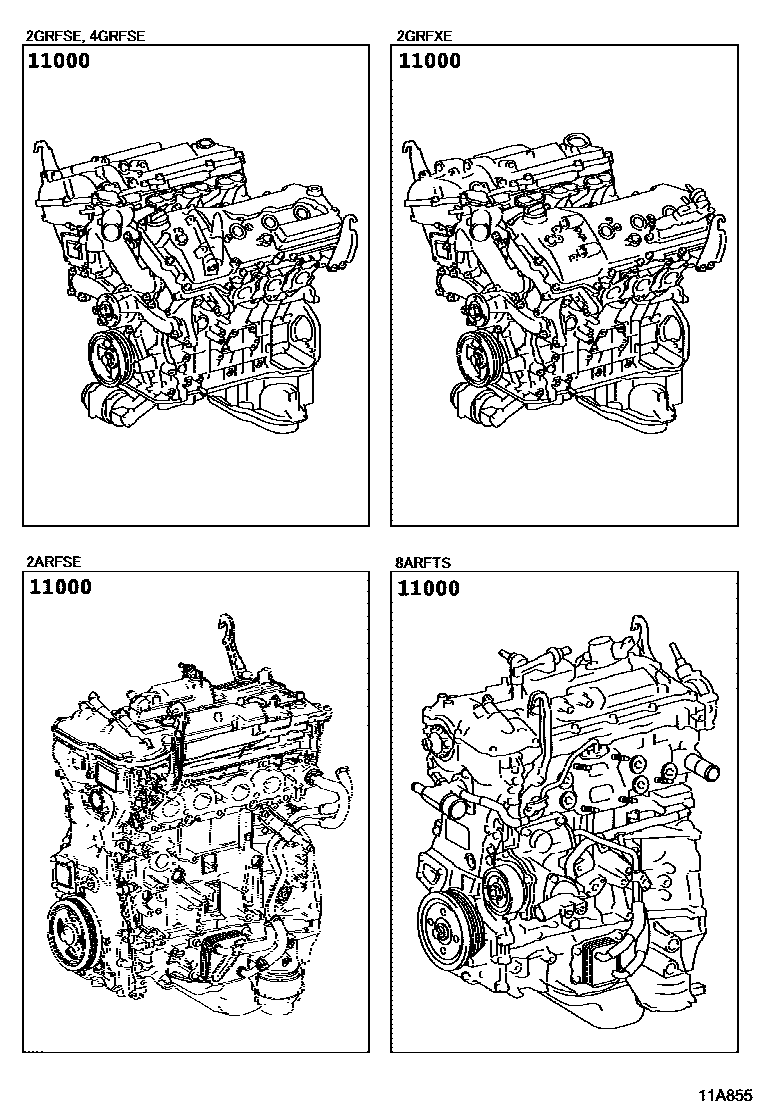

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-31A92i201201-201510
main19000-31D52i201201-201403
main19000-31D53i201403-201510
sub19000-31R40
main19000-31H80i201201-201309
main19000-31H81i201403-201411
main19000-31M80i201304-201403
main19000-31M81i201403-201510
main19000-31N10i201203-201304
main19000-31P20i201411-201510
main19000-31P40i201411-201510
main19000-31P60i201510-202007
TOWING PACKAGE-1600KG
main19000-31P80i201510-202007
main19000-36410i201309-201403
main19000-36480i201510-202007
main19000-36550i201510-202007
main19000-36420i201309-201403
SINGAPORE SPEC

1 parts on this diagram · 2 diagrams in section
