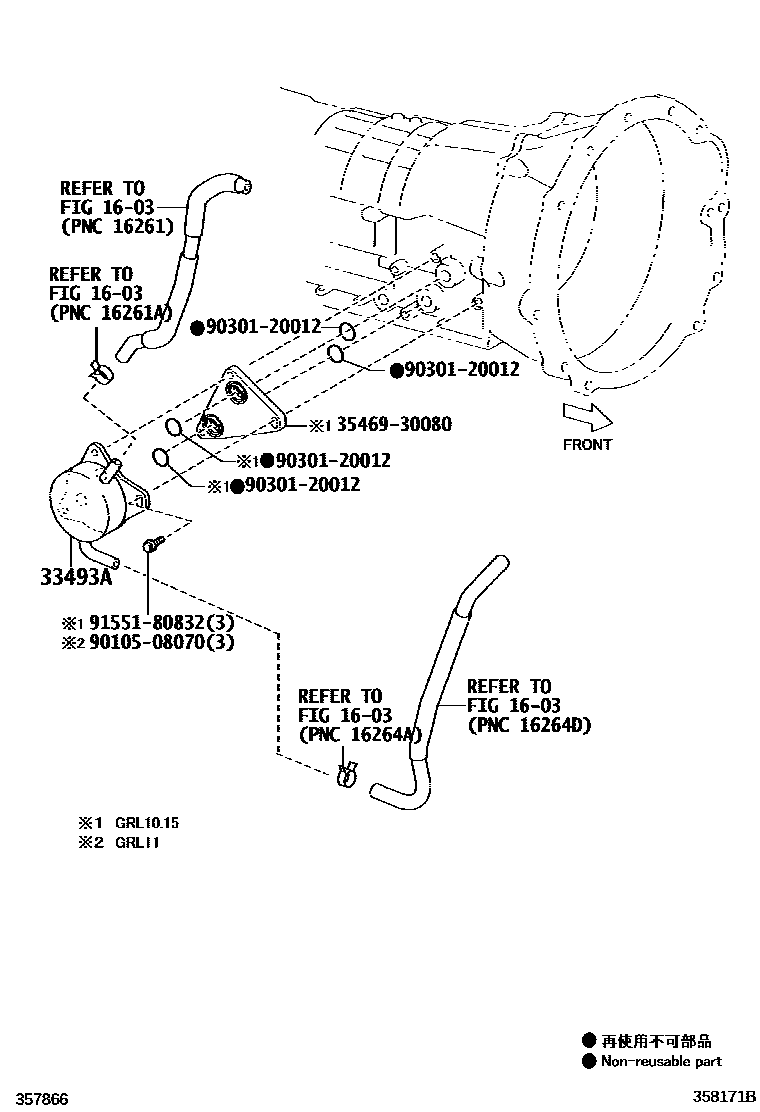

Toyota LEXUS GS SERIES — OIL COOLER & TUBE (ATM)

0001 1A760E,A760H,A960E W(ATF WARME0002 1A760E,W/O(ATF WARMER) 0003 1AA81E,W(ATF WARMER) 0004 1AA81E,W/O(ATF WARMER) 0005 1AA81E,W/O(ATF WARMER)

1603

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-30020iGRL11,15;GRL10..6FC..(ARL,GEN)201201-201510

main33493-30040iGRL10..ARL,GEN201309-202007

main33493-30050iARL10201510-202007

3546930080SPACER (FOR VALVE BODY DOWN SHIFT PLUG)

main35469-30080

9010508070

main90105-08070

9030120012

main90301-20012

9155180832

main91551-80832

6 parts on this diagram · 5 diagrams in section
