Toyota LEXUS GS SERIES — METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1HEAD-UP DISPLAY 0004 1HEAD-UP DISPLAY 0005 1HEAD-UP DISPLAY 0006 1HEAD-UP DISPLAY

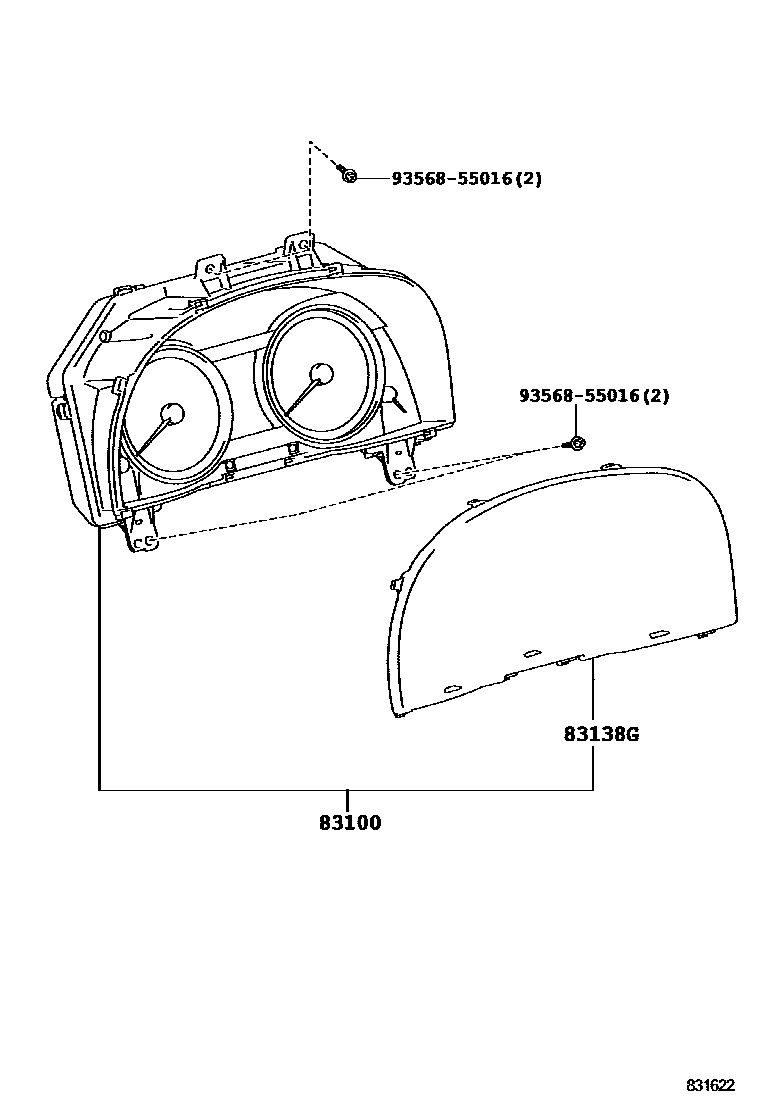

83100METER ASSY, COMBINATION

main83800-30R40iGRL1#201309-201402

DENSO

sub83800-3A680

main83800-30S00iAWL10,GWL10201309-201402

DENSO

sub83800-3A740

main83800-3A310iGRL1#201201-201208

DENSO

sub83800-3A311

main83800-3A311iGRL1#201209-201309

DENSO

sub83800-3A800

main83800-3A430iGWL10201203-201309

DENSO

sub83800-3A860

main83800-3A560iGRL1#201409-201510

DENSO

main83800-3A620iAWL10,GWL10201409-201510

DENSO

main83800-3A680iGRL1#201403-201409

DENSO

main83800-3A740iAWL10,GWL10201403-201409

DENSO

main83800-3AA40iGRL12201510-201609

sub83800-3AA41

main83800-3AA50iARL10201510-201609

sub83800-3AA51

main83800-3AB30iAWL10,GWL10201510-201609

sub83800-3AB31

main83800-3AD10iGRL12201809-201909

YAZAKI

main83800-3AD60iARL10201809-201909

DENSO

main83800-3AD70iAWL10,GWL10201809-201909

DENSO

main83800-3AG40iARL10201609-201707

sub83800-3AG41

main83800-3AG41iARL10201708-201709

DENSO

main83800-3AG90iAWL10,GWL10201609-201707

sub83800-3AG91

main83800-3AG91iAWL10,GWL10201708-201709

DENSO

main83800-3AK50iGRL12201609-201707

sub83800-3AK51

main83800-3AK51iGRL12201708-201709

DENSO

main83800-3AM30iGRL12201709-201711

sub83800-3AM31

main83800-3AM31iGRL12201712-201809

DENSO

sub83800-3AD10

main83800-3AM40iARL10201709-201711

sub83800-3AM41

main83800-3AM41iARL10201712-201809

DENSO

sub83800-3AD60

main83800-3AM90iAWL10,GWL10201709-201809

sub83800-3AD70

main83800-3AP90iARL10201909-202007

DENSO

main83800-3AQ50iGRL12201909-202007

DENSO

main83800-3AQ60iAWL10,GWL10201909-202007

DENSO

83138GGLASS, COMBINATION METER

main83852-30K60iGRL10201201-201510

main83852-3AA00iARL10,AWL10,GRL12,GWL10201510-202007

9356855016

main93568-55016

3 parts on this diagram · 6 diagrams in section
