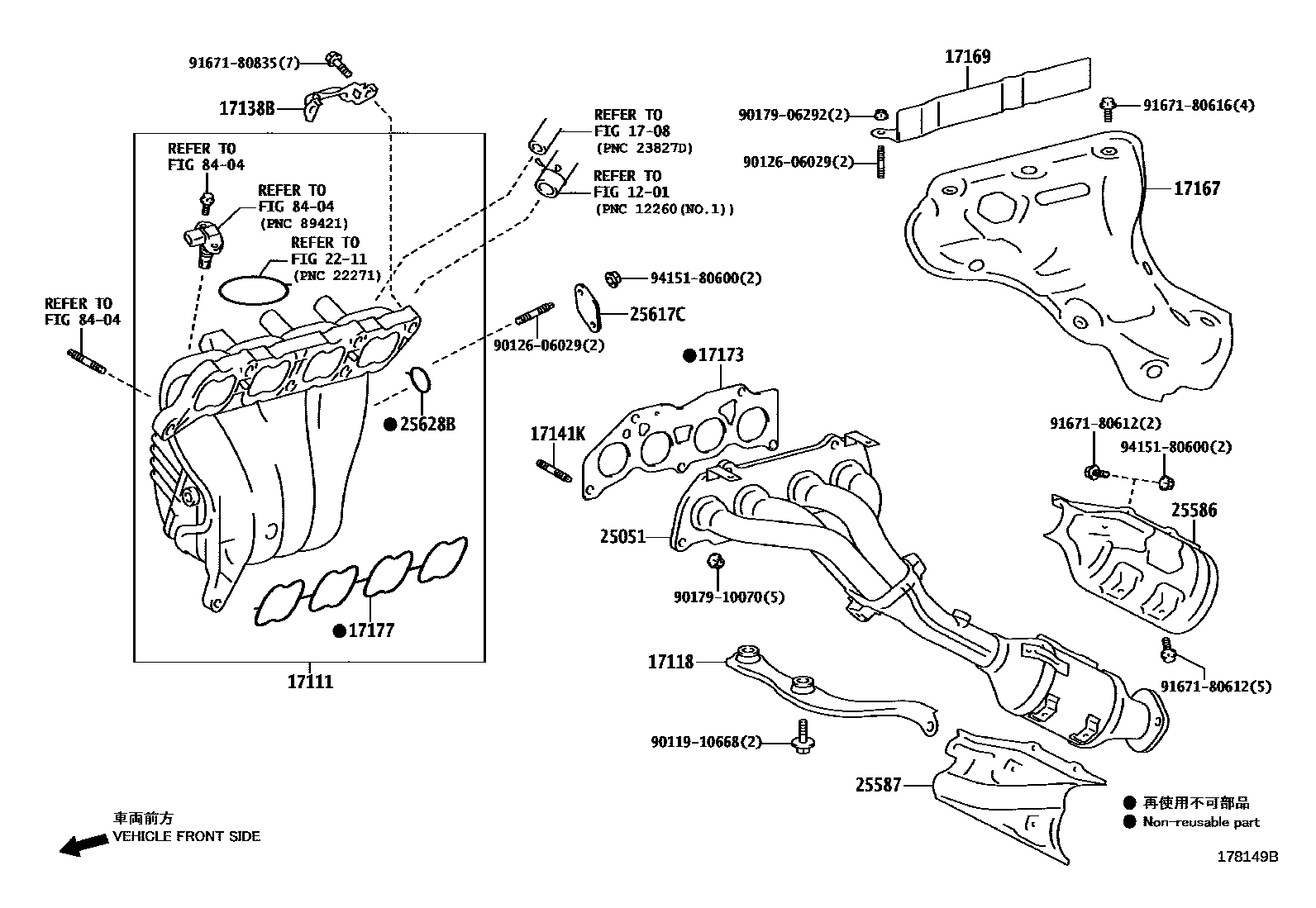

Toyota LEXUS GS SERIES — MANIFOLD

0001 1W/O(EGR) 0002 1W(EGR) 0003 1INTAKE MANIFOLD 0004 1EXHAUST MANIFOLD 0005 1TURBOCHARGER 0006 1 0007 1 0008 1 0009 1

1201

1708

17111MANIFOLD, INTAKE

main17101-36082i8ARFTS..ARL10201510-202007

main17111-31171i2GRFSE..GRL15;2GRFSE..GRL10..8FC201201-201510

main17111-31210i2GRFXE..GWL10201203-202007

main17111-31250i2GRFKS..GRL12201510-202007

main17120-31020i4GRFSE..GRL11..GCC,GEN201201-201510

main17120-31041i4GRFSE..GRL11..LHD..GEN201201-201510

THAILAND SPEC

main17120-31041i4GRFSE..GRL11..ARL201201-201510

CHINA SPEC

main17120-31041i4GRFSE..GRL11..ARL201201-201510

HONG KONG SPEC

main17120-31041i4GRFSE..GRL11..ARL201201-201510

TAIWAN SPEC

main17120-36081i2ARFSE..AWL10201309-202007

17118STAY, MANIFOLD

main17118-36030i2ARFSE..AWL10201309-202007

main17118-36080i8ARFTS..ARL10201510-202007

17138BSTAY, INTAKE MANIFOLD

main17138-36010i2ARFSE..AWL10201309-202007

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-10015i2ARFSE..AWL10201309-202007

main90126-10045i8ARFTS..ARL10201510-202007

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-31120i2GRFKS..GRL12201701-202007

RH BANK

main17167-31150i2GRFKS..GRL12201510-201612

RH BANK

sub17167-31120

main17167-31160i2GRFKS..GRL12201510-202007

LH BANK

main17167-36020i2ARFSE..AWL10201309-202007

main17167-36060i8ARFTS..ARL10201510-201512

sub17167-36061

main17167-36061i8ARFTS..ARL10201601-202007

17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-36010i2ARFSE..AWL10201309-202007

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFSE..GRL10201201-202007

main17173-31070i2GRFKS..GRL12201510-202007

main17173-36030i2ARFSE..AWL10201309-202007

main17173-36040i8ARFTS..ARL10201510-202007

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36030i2ARFSE..AWL10201309-202007

main17171-36040i8ARFTS..ARL10201510-202007

main17177-31021i4GRFSE..GRL11201201-201510

main17177-31061i2GRFSE..GRL10201201-201510

main17177-31070i2GRFXE..GWL10201203-202007

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-36190i2ARFSE..AWL10201309-202007

*114=TOYOTA/36190/Y

main25051-36230i8ARFTS..ARL10201510-202007

*114=*418

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-36040i2ARFSE..AWL10201309-202007

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-36010i2ARFSE..AWL10201309-202007

25617CPLATE, EGR HOLE COVER

25628BGASKET, EGR INLET

main25628-36020i2ARFSE..AWL10201309-202007

8404

9011910668

main90119-10668

9012606029

main90126-06029

9017906292

main90179-06292

9017910070

main90179-10070

9167180612

main91671-80612

9167180616

main91671-80616

9167180835

main91671-80835

9415180600

main94151-80600

25 parts on this diagram · 9 diagrams in section
