Toyota LEXUS GS SERIES — HEV CONTROL COMPUTER

8401

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116730030iGWL10201203-201510

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116830030iGWL10201203-201510

G9020CRELAY, OIL PUMP

main90987-02025iGWL10201203-201510

8271530P80BRACKET,WIRING HARNESS CLAMP

main82715-30P80

9011906915

main90119-06915

9011906A19

main90119-06A19

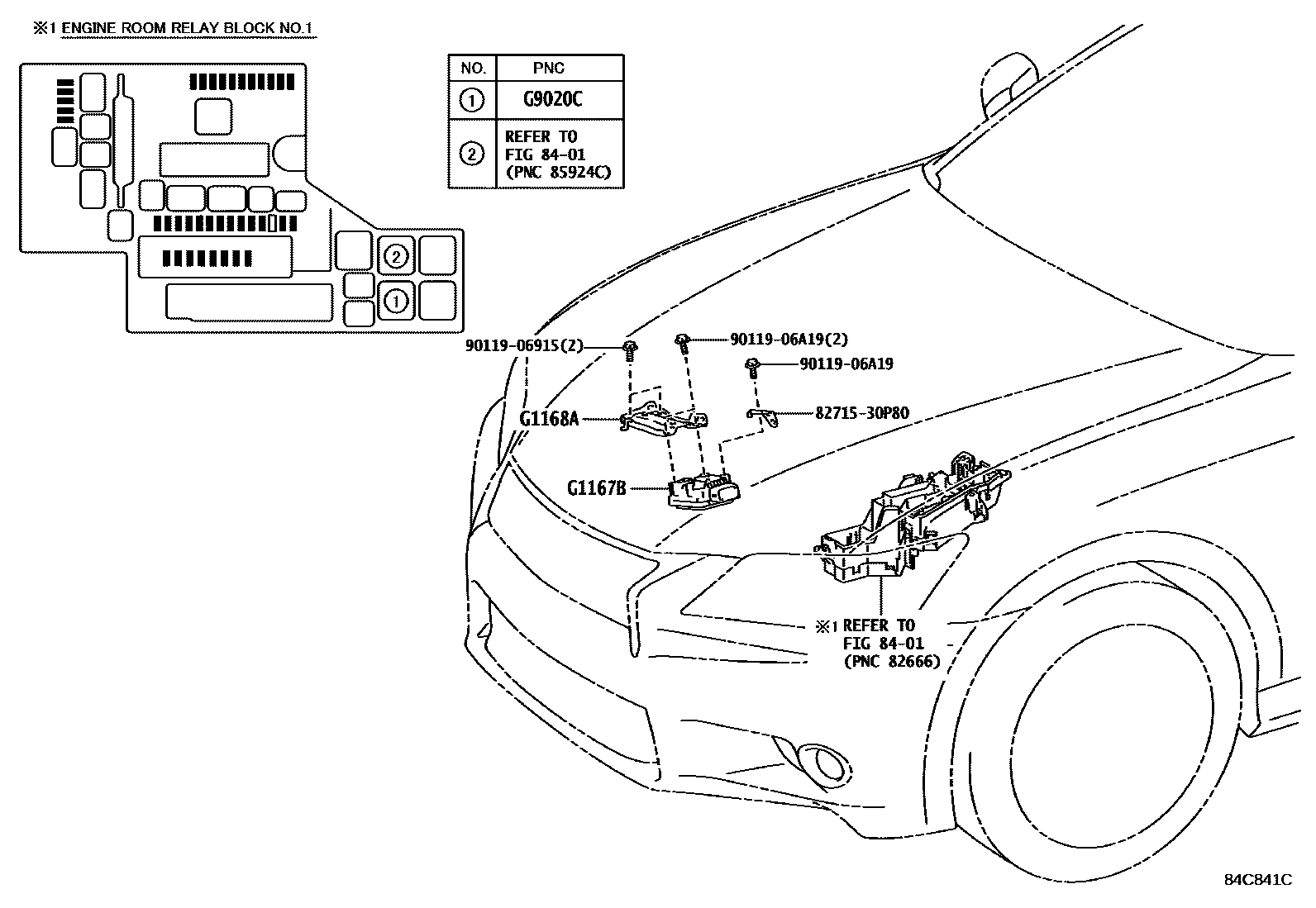

7 parts on this diagram · 1 diagram in section
