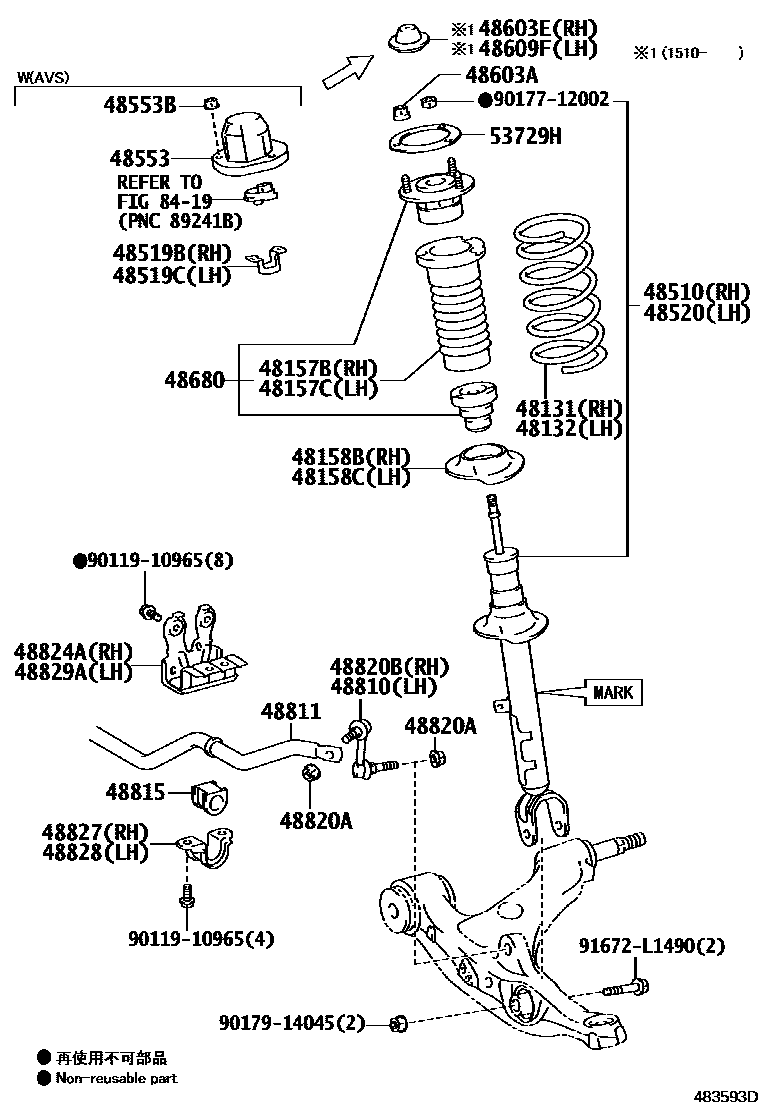

Toyota LEXUS GS SERIES — FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-30A91
MARK 48510-30B01
MARK 48510-30B01,F SPORT
MARK 48510-30B01,VERSION L
MARK 48510-30B81
MARK 48510-30A92
MARK 48510-30B82
MARK 48510-30B03
MARK 48510-30B03,F SPORT
MARK 48510-30B03,VERSION L
MARK 48510-30B03,THE CRAFTED LINE
MARK 48510-30D70
MARK 48510-30D80
MARK 48510-30D80,F SPORT
MARK 48510-30D80,VERSION L
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
F SPORT
VERSION L
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
VERSION L
F SPORT
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-30471
MARK 48520-30481
MARK 48520-30481,F SPORT
MARK 48520-30481,VERSION L
MARK 48520-30561
MARK 48520-30472
MARK 48520-30562
MARK 48520-30483,THE CRAFTED LINE
MARK 48520-30483
MARK 48520-30483,F SPORT
MARK 48520-30483,VERSION L
MARK 48520-30770
MARK 48520-30780
MARK 48520-30780,F SPORT
MARK 48520-30780,VERSION L
48553CAP, SHOCK ABSORBER, UPPER
F SPORT
VERSION L
48553BNUT(FOR FRONT SHOCK ABSORBER CAP)
F SPORT
VERSION L
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
48680SUPPORT ASSY, FRONT SUSPENSION
VERSION L
F SPORT
THE CRAFTED LINE
sub48680-30471
sub48680-30481
VERSION L
F SPORT
sub48680-30491
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
8419
9011910965
main90119-10965
9017712002
main90177-12002
9017914045
main90179-14045
91672L1490
main91672-L1490
31 parts on this diagram · 2 diagrams in section
