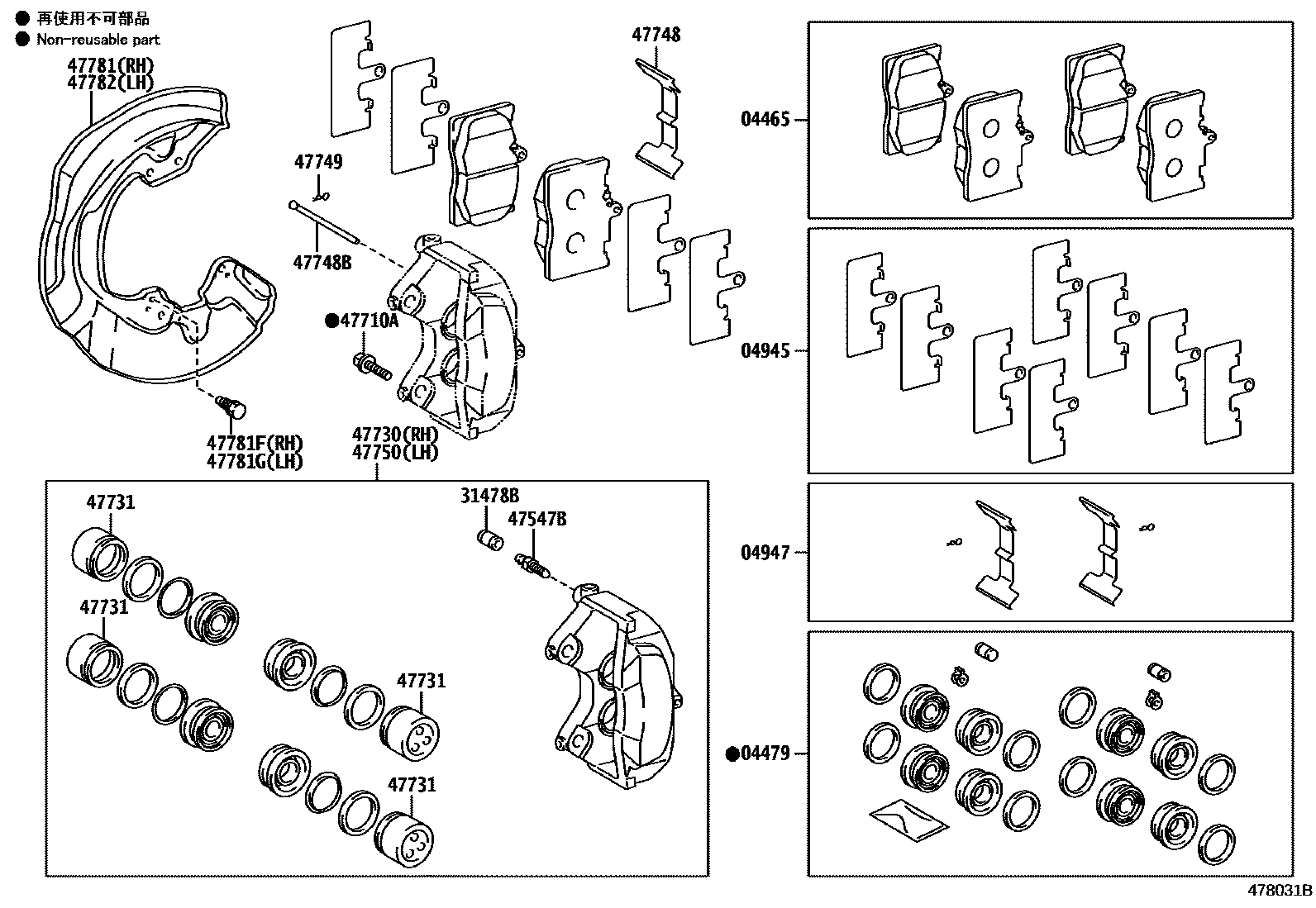

Toyota LEXUS GS SERIES — FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1DISC ROTOR OD=356

04465PAD KIT, DISC BRAKE, FRONT

main04465-30410iGRL10,11,GWL10..GCC201201-201212

MARK TEXTAR T4146,EGYPT SPEC&F SPORT

sub04465-30500

main04465-30410iGRL10,11,GWL10..GCC201201-201212

MARK TEXTAR T4146,F SPORT

sub04465-30500

main04465-30410iGRL11..LHD..GEN201201-201212

MARK TEXTAR T4146

sub04465-30500

main04465-30410iGRL11..LHD..GEN201201-201212

MARK TEXTAR T4146,EGYPT SPEC

sub04465-30500

main04465-30470iAWL10,GRL1#,GWL10..ARL,GEN201201-201406

MARK ADVICS PV565H

sub04465-30510

main04465-30500iGRL10,11,GWL10..GCC201212-202007

MARK TEXTAR T4146,F SPORT

main04465-30500iAWL10,GRL11..ARL,GEN201212-202007

MARK TEXTAR T4146

main04465-30510iARL10,AWL10,GRL12,GWL10..ARL,GEN201407-202007

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGRL10..8FC..(ARL,GEN);AWL10,GRL11,GWL10..ARL,GEN201201-202007

F SPORT

main04478-22040iGRL10..GCC201201-201309

EGYPT SPEC

main04478-22040iGRL10..GCC201201-201309

EGYPT SPEC&F SPORT

main04478-22040iGRL12,GWL10..ARL,GEN201510-202007

FRONT WHEEL BRAKE-18INCHES DISC

main04478-22040iGRL12,GWL10..ARL,GEN201510-202007

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

main04479-50130iGRL10..ARL,GEN201201-202007

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22152iGRL11..LHD..GEN201201-201212

EGYPT SPEC

sub04945-30350

main04945-22152iGRL10,11,GWL10..GCC201201-201212

EGYPT SPEC&F SPORT

sub04945-30350

main04945-22152iGRL10,11,GWL10..GCC201201-201212

F SPORT

sub04945-30350

main04945-30330iGRL10..ARL,GEN201201-201407

sub04945-30350

main04945-30350iGRL10..GCC201212-201309

EGYPT SPEC

main04945-30350iGRL10,11..LHD..GEN201212-201309

EGYPT SPEC&F SPORT

main04945-30350iARL10,AWL10..ARL,GEN201212-202007

F SPORT

main04945-30370iARL10,AWL10,GRL12,GWL10..ARL,GEN201407-202007

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGRL10201201-202007

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGRL10201201-202007

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGRL10201201-202007

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iAWL10,GRL1#,GWL10201201-202007

*12-1.25PX45-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGRL10201201-202007

47731PISTON, FRONT DISC BRAKE

main47731-50070iGRL10201201-202007

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iGRL10201201-202007

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iGRL10201201-202007

47749CLIP, PIN HOLD

main47749-50030iGRL10201201-202007

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGRL10201201-202007

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30240iGRL15201201-201510

main47781-30260iAWL10,GRL10,11,GWL10201201-202007

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227iGRL11,GWL10201201-201310

main90119-06508iAWL10,GRL10,11,GWL10201310-202007

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227iGRL11,GWL10201201-201310

main90119-06508iAWL10,GRL10,11,GWL10201310-202007

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30240iGRL15201201-201510

main47782-30260iAWL10,GRL10,11,GWL10201201-202007

17 parts on this diagram · 3 diagrams in section
