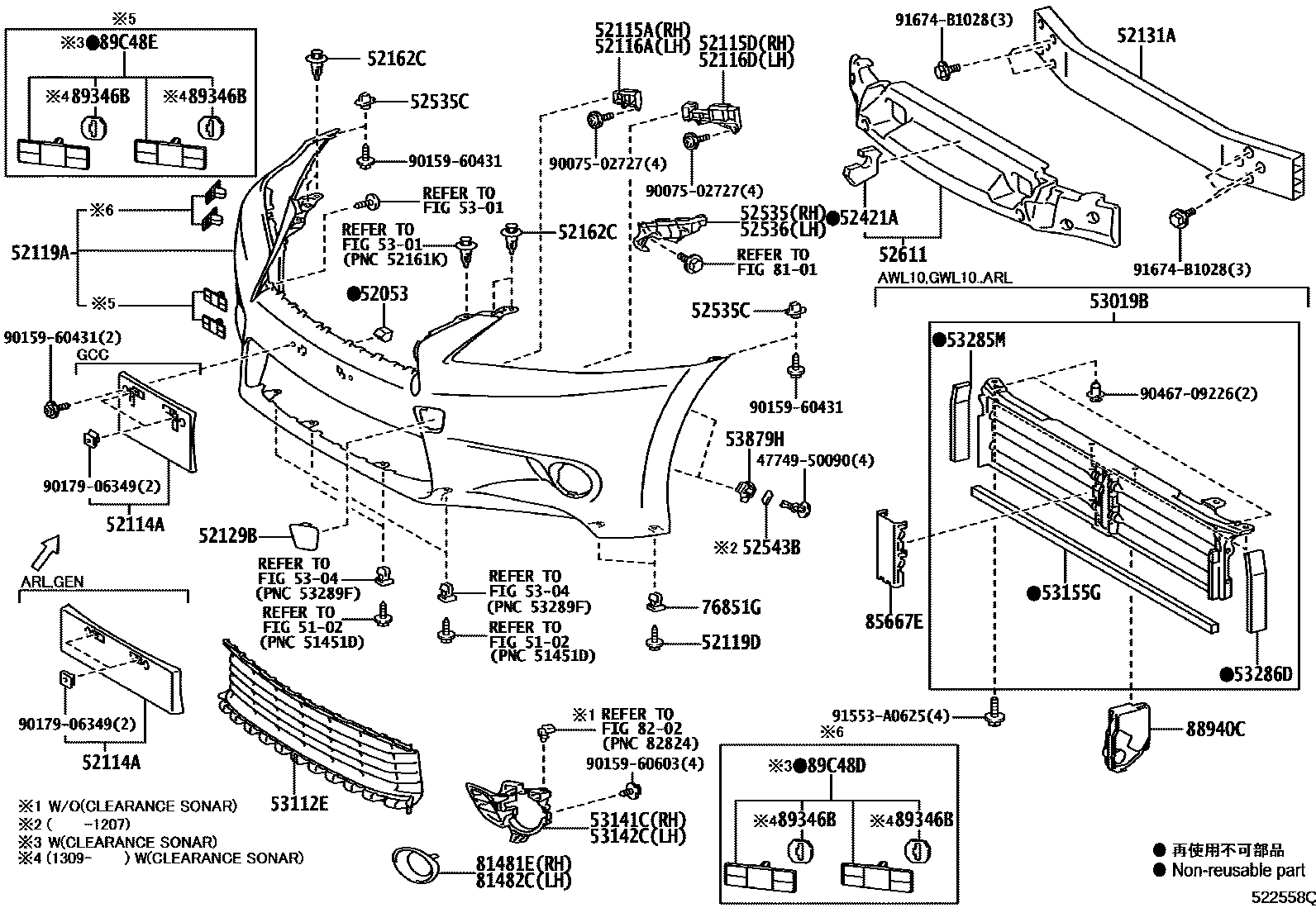

Toyota LEXUS GS SERIES — FRONT BUMPER & BUMPER STAY

0001 1 0002 1F-SPORT 0003 1BUMPER COVER 0004 1BUMPER REINFORCEMENT

5102

52053PAD SUB-ASSY, FRONT BUMPER

main52421-30110iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201510

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-30220iGRL10..8FC..GCC;GRL11,GWL10..GCC201201-201510

main52114-30230iGRL10..8FC..(ARL,GEN);AWL10,GRL11,15,GWL10..ARL,GEN201201-201510

main52114-30260iARL10,GRL12,GWL10..GCC201510-202007

main52114-30270iARL10,AWL10,GRL12,GWL10..ARL,GEN201510-202007

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-30140iAWL10,GRL1#,GWL10201201-201510

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

main52115-30150iAWL10,GRL1#,GWL10201201-201510

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-30090iAWL10,GRL1#,GWL10201201-201510

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

main52116-30100iAWL10,GRL1#,GWL10201201-201510

52119ACOVER, FRONT BUMPER

main52119-3A923iGRL10..6FC..GCC;GRL11,GWL10..GCC201201-201510

PAINT REQ.

main52119-3A931iGRL1#,GWL10..ARL,GEN201201-201309

PAINT REQ.

main52119-3A955iAWL10,GRL1#,GWL10..ARL,GEN201309-201510

PAINT REQ.

main52119-3F967iARL10,AWL10,GRL12,GWL10..ARL,GEN201510-202007

main52119-3F969iARL10,GRL12,GWL10..GCC201510-202007

52119DSCREW, NO.1

main90159-60477iAWL10,GRL1#,GWL10201201-202007

52129BCOVER, FRONT BUMPER, LOWER

main52129-30907iGRL11,GWL10..GCC201201-201510

52131AREINFORCEMENT, FRONT BUMPER

main52131-30300iGRL10201201-201510

main52131-30360iARL10,AWL10,GRL12,GWL10201510-202007

52162CPIECE, FRONT BUMPER

main52161-16010iGRL10201201-202007

sub52161-0K040

52421APAD, FRONT BUMPER

main52421-30120iGRL10201201-201510

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30230iGRL10201201-201510

main52535-30270iARL10,AWL10,GRL12,GWL10201510-202007

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iGRL10201201-202007

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-30220iGRL10201201-201510

main52536-30260iARL10,AWL10,GRL12,GWL10201510-202007

52543BSEAL, FRONT BUMPER

main52543-30120iGRL1#,GWL10201201-201207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30420iGRL10201201-201510

main52611-30490iARL10,AWL10,GRL12,GWL10201510-202007

5301

53019BSHUTTER SUB-ASSY, RADIATOR

main53019-30010iAWL10,GWL10..ARL201203-201510

TOWING PACKAGE-1500KG

main53019-30040iAWL10,GWL10..ARL201510-202007

TOWING PACKAGE-1500KG

5304

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-30240iGRL10201201-201510

NO PAINT REQ.

53141CGARNISH, RADIATOR GRILLE

main53141-30160iGRL10201201-201510

main53141-30360iARL10,AWL10,GRL12,GWL10201510-202007

53142CGARNISH, RADIATOR GRILLE, NO.2

main53142-30060iGRL10201201-201510

main53142-30160iARL10,AWL10,GRL12,GWL10201510-202007

53155GSEAL, RADIATOR GRILLE

main53155-30060iAWL10,GWL10..ARL201203-202007

TOWING PACKAGE-1500KG

53285MSEAL, RADIATOR SIDE AIR, RH

main53157-30020iAWL10,GWL10..ARL201203-202007

TOWING PACKAGE-1500KG

53286DSEAL, RADIATOR SIDE AIR, LH

main53156-30010iAWL10,GWL10..ARL201203-202007

TOWING PACKAGE-1500KG

53879HRETAINER, FRONT FENDER LINER

main53879-30040iGRL1#,GWL10201201-201206

main53879-30050iAWL10,GRL1#,GWL10201207-201610

main53879-30060iARL10,AWL10,GRL12,GWL10201611-202007

76851GGROMMET, SCREW, NO.1

main90189-06193iAWL10,GRL1#,GWL10201201-202007

8101

81481ECOVER, FOG LAMP, RH

main81481-30110iGRL10201201-201510

81482CCOVER, FOG LAMP, LH

main81482-30150iGRL10201201-201510

8202

85667ECOVER, MOTOR

main85667-30030iAWL10,GWL10..ARL201203-202007

TOWING PACKAGE-1500KG

88940CACTUATOR ASSY, SWING GRILLE

main88940-30100iAWL10,GWL10..ARL201203-202007

TOWING PACKAGE-1500KG

89346BADJUSTER, ULTRASONIC SENSOR

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

89C48ERETAINER, ULTRASONIC SENSOR, FRONT CENTER

4774950090CLIP, PIN HOLD

main47749-50090

9007502727

main90075-02727

9015960431

main90159-60431

9015960603

main90159-60603

9017906349

main90179-06349

9046709226

main90467-09226

91553A0625

main91553-A0625

91674B1028

main91674-B1028

46 parts on this diagram · 4 diagrams in section
