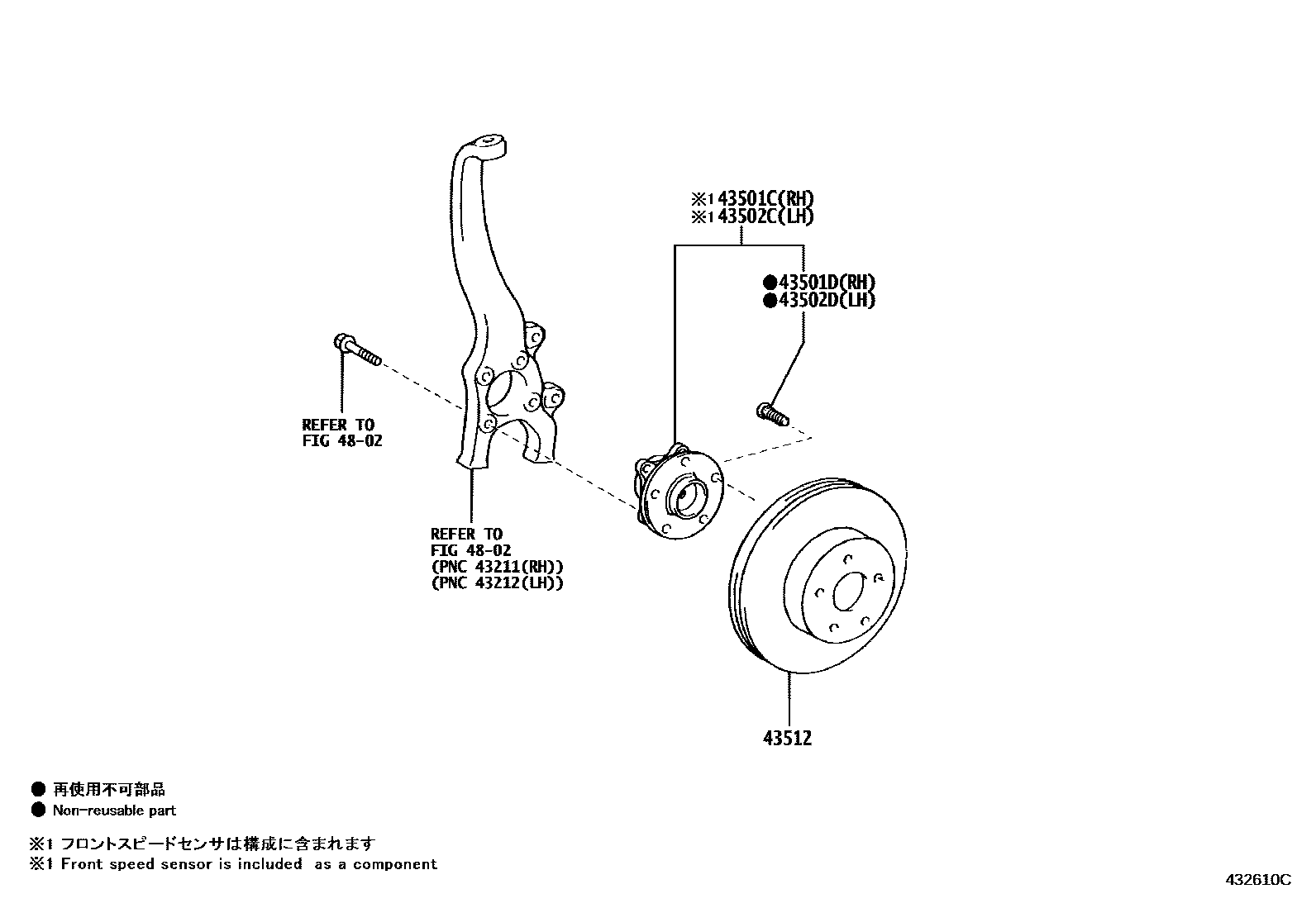

Toyota LEXUS GS SERIES — FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30030iGRL15201201-201507

sub43550-30031

main43550-30031iGRL15201508-201510

main43550-30050iAWL10,GRL10,11,GWL10201201-201504

sub43550-30051

main43550-30051iAWL10,GRL10,11,GWL10201505-202007

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iAWL10,GRL10,11,GWL10201505-202007

main90942-02070iGRL15201201-201507

sub90942-02049

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30050iAWL10,GRL10,11,GWL10201201-201504

sub43550-30051

main43550-30051iAWL10,GRL10,11,GWL10201505-202007

main43560-30030iGRL15201201-201507

sub43560-30031

main43560-30031iGRL15201508-201510

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iGRL15201505-202007

main90942-02070iGRL10..8FC;AWL10,GRL11,GWL10201201-201507

sub90942-02049

43512DISC, FRONT

main43512-22260iGRL10,11,GWL10..GCC201201-202007

F SPORT,RH

sub43512-22261

main43512-22260iAWL10,GRL11..ARL,GEN201201-202007

RH

sub43512-22261

main43512-30350iARL10,AWL10,GRL12,GWL10..ARL,GEN201201-202007

RH

sub43512-30351

main43516-22010iAWL10,GRL11..ARL,GEN201201-202007

F SPORT,LH

sub43516-22011

main43516-22010iGRL10,11,GWL10..GCC201201-202007

LH

sub43516-22011

main43516-30040iAWL10,GRL1#,GWL10..ARL,GEN201201-202007

LH

sub43516-30041

4802

6 parts on this diagram · 2 diagrams in section
