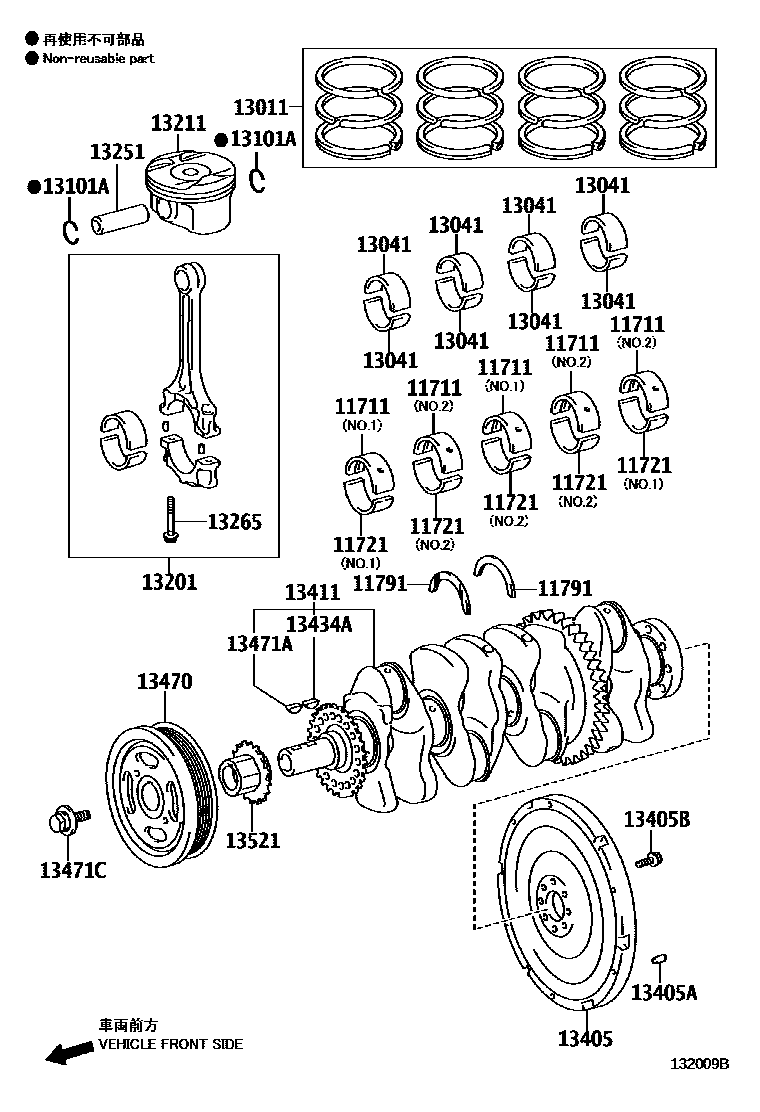

Toyota LEXUS GS SERIES — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,NO.2,REFER R/M
sub11071-31060
MARK1,NO.1,REFER R/M
sub11701-31100
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
13011RING SET, PISTON
STD
STD,HONG KONG SPEC
STD,TAIWAN SPEC
STD,PHILIPPINE SPEC
STD,SINGAPORE SPEC
STD,MALAYSIA SPEC
STD,INDONESIA SPEC
STD,THAILAND SPEC
STD,BRUNEI SPEC
STD,LEBANON SPEC
STD,ARGENTINA SPEC
STD,CHILE SPEC
STD,SOUTH AFRICA SPEC
STD,VIETNAM SPEC
STD,MACAO SPEC
STD
STD,HONG KONG SPEC
STD,TAIWAN SPEC
STD,SINGAPORE SPEC
STD,THAILAND SPEC
STD,MACAO SPEC
STD
STD
STD
STD
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
sub13041-31100
MARK4,REFER REPAIR MANUAL
sub13041-31100
MARK 1,REFER REPAIR MANUAL
MARK 1
MARK 2,REFER REPAIR MANUAL
MARK 2
MARK 3,REFER REPAIR MANUAL
MARK 3
MARK 4
MARK 4,REFER REPAIR MANUAL
MARK 1,NO.1,REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,NO.1,REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 3,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARK A,RH BANK
STD,MARK B,RH BANK
STD,MARK C,RH BANK
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
sub13201-39167
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A
MARK B
MARK C
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK B
MARK C,REFER REPAIR MANUAL
MARK C
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
21 parts on this diagram · 5 diagrams in section
