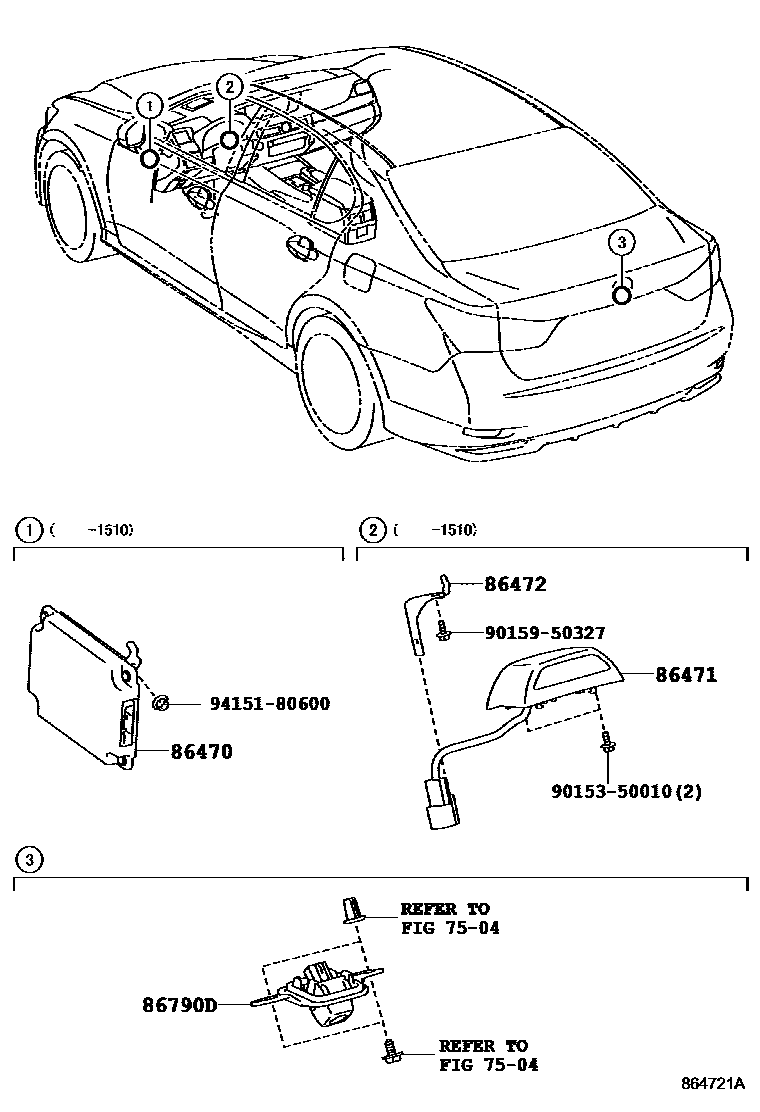

Toyota LEXUS GS SERIES — CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

7504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-30030

86471CAMERA, DRIVER MONITOR

main86471-30030

86472BRACKET, DRIVER MONITOR

main86472-30030

86790DCAMERA ASSY, TELEVISION, RR

main86790-30150iGRL1#,GWL10201201-201306

sub86790-30151

main86790-30151iGRL10201307-201409

main86790-30230iAWL10,GRL1#,GWL10201409-202007

9015350010

main90153-50010

9015950327

main90159-50327

9415180600

main94151-80600

8 parts on this diagram · 2 diagrams in section
