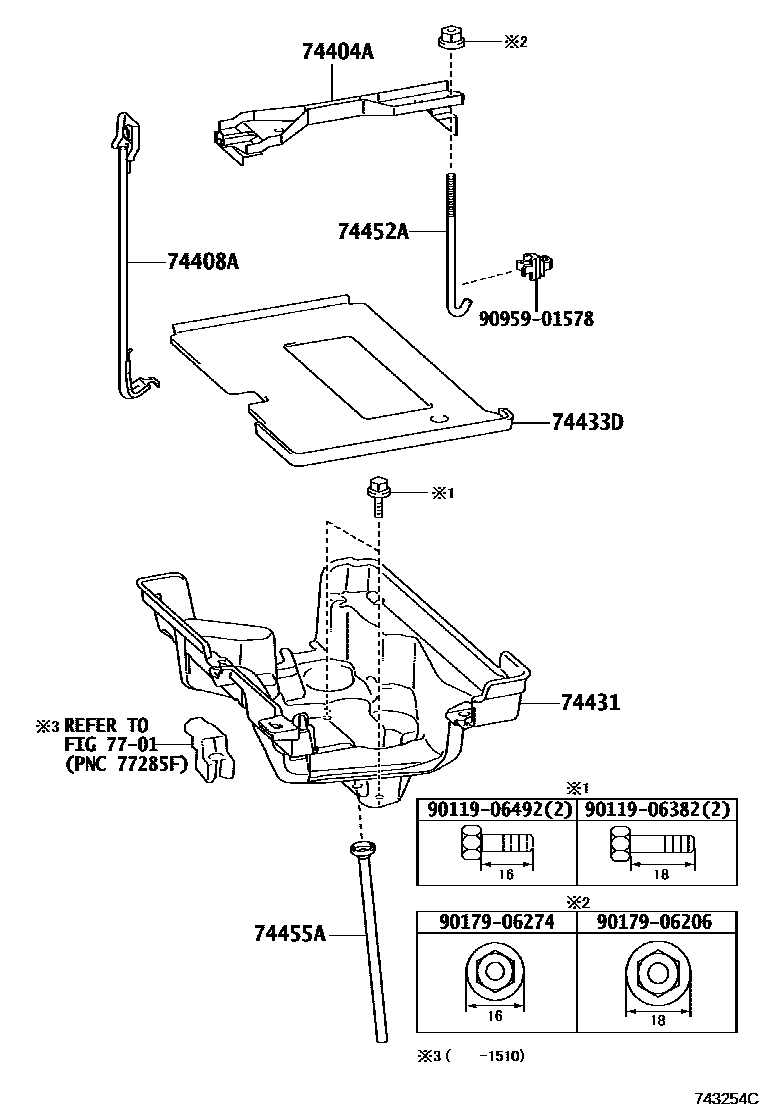

Toyota LEXUS GS SERIES — BATTERY CARRIER

0001 1 0002 1 0003 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-22370iGRL1#201201-202007

main74406-30030iAWL10,GWL10201203-202007

74408ABOLT SUB-ASSY, BATTERY CLAMP, NO.2

main74408-22031iARL10,GRL12201201-202007

74431TRAY, BATTERY

main74431-30222iGRL10..RHD201201-202007

main74431-30232iARL10,GRL12..LHD201201-202007

74433DSUPPORT, BATTERY TRAY,NO.1

main74433-22010iARL10,GRL12..RHD201612-202007

main74433-30022iGRL11..RHD;GRL10..RHD..8FC201201-201611

main74433-30032iARL10,GRL12..LHD201201-202007

74452ABOLT, BATTERY CLAMP, NO.2

main74452-30010iGRL11,15;GRL10..8FC201201-202007

74455AHOSE, BATTERY DRAIN

main74455-30020iGRL10201201-202007

7701

9011906382

main90119-06382

9011906492

main90119-06492

9017906206

main90179-06206

9017906274

main90179-06274

9095901578

main90959-01578

12 parts on this diagram · 3 diagrams in section
