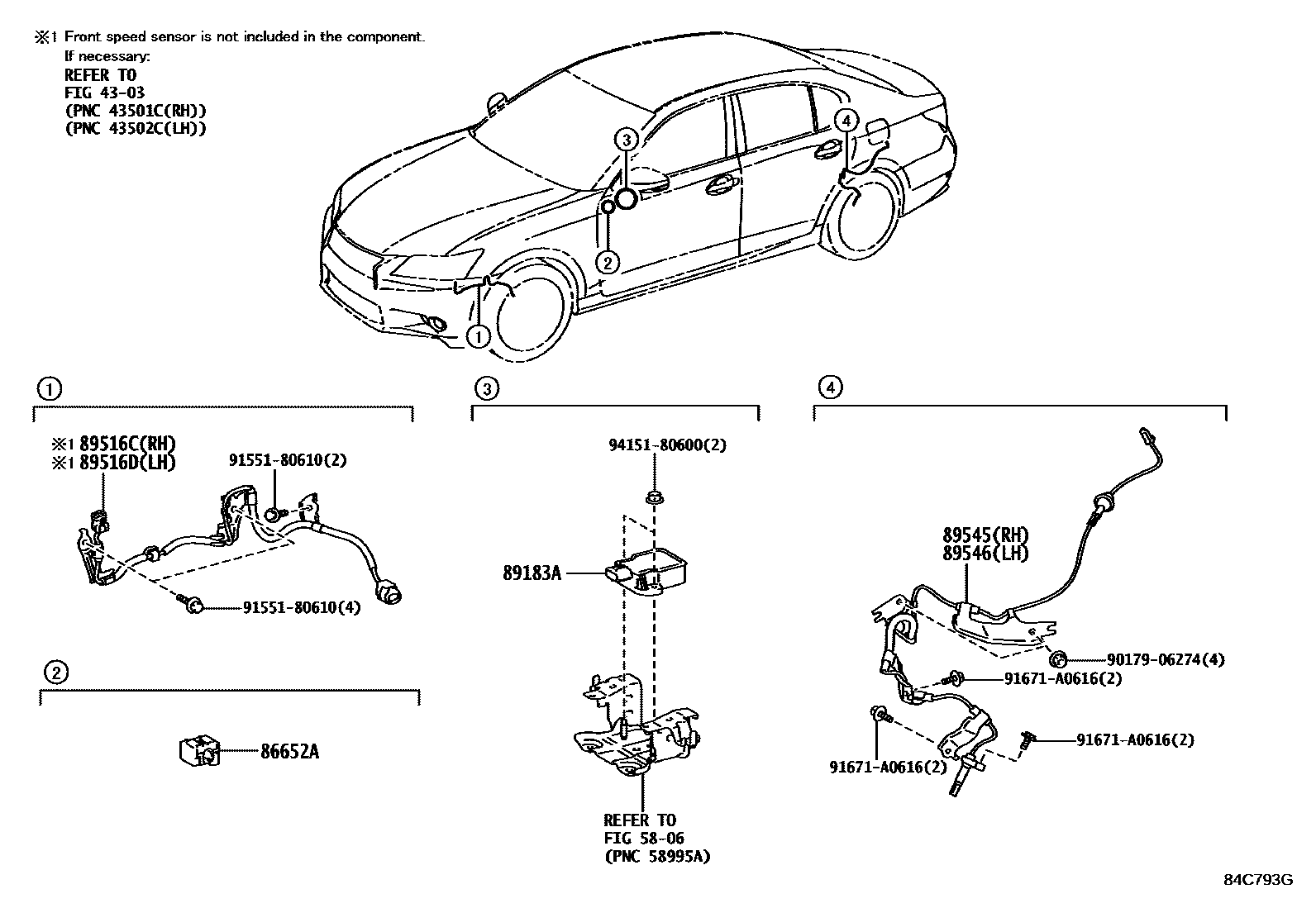

Toyota LEXUS GS SERIES — ABS & VSC

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

4303

5806

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGWL10201203-201309

89183ASENSOR, YAWRATE

main89183-30080iARL10,GRL12,GWL10..GCC201201-201812

main89183-50030iARL10,GRL12,GWL10..GCC201809-202007

main89183-50040iARL10,AWL10,GRL12,GWL10..ARL,GEN201812-202007

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-30140iGRL10,11,GWL10201204-201309

main89516-30160iGWL10201201-201204

sub89516-30140

main89516-30220iAWL10,GRL10,11,GWL10201309-202007

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-30170iGRL10201201-202007

89545SENSOR, SPEED, REAR RH

main89545-30080iGRL10201201-202007

89546SENSOR, SPEED, REAR LH

main89546-30080iGRL10201201-202007

9017906274

main90179-06274

9155180610

main91551-80610

91671A0616

main91671-A0616

9415180600

main94151-80600

12 parts on this diagram · 7 diagrams in section
