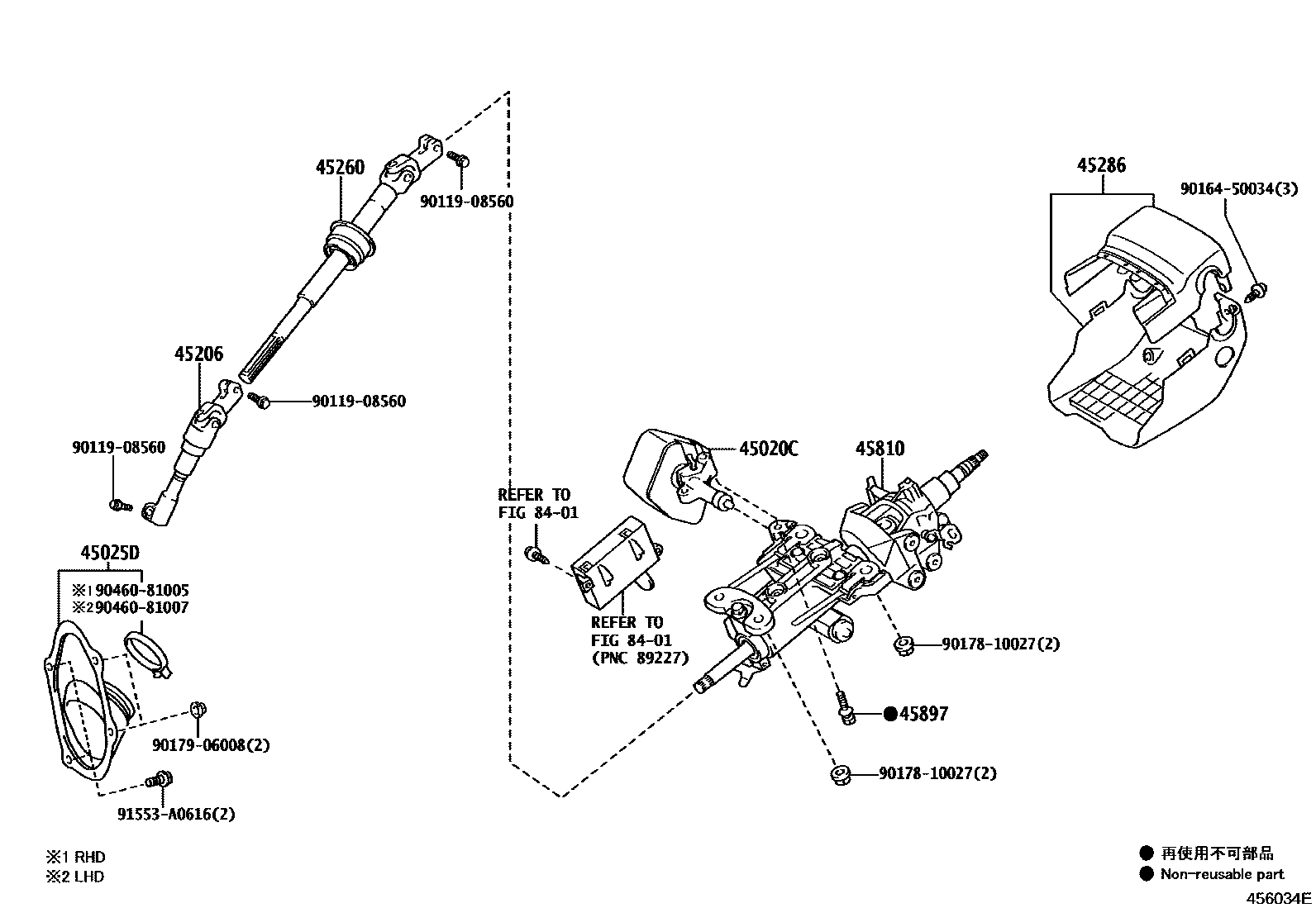

Toyota LEXUS GS SERIES — STEERING COLUMN & SHAFT

0001 1 0002 1F-SPORT OR THE CRAFTED LINE 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A90iAWL10,GRL1#,GWL10..LHD201201-201510

main45020-30A90iARL10,AWL10,GRL16,GWL10..LHD201510-201809

CYPRUS SPEC

main45020-30B00iAWL10,GRL11,GWL10..LHD201203-201809

BALTIC SPEC

main45020-30B00iAWL10,GRL11,GWL10..LHD201203-201809

NORDIC SPEC

main45020-30B00iAWL10,GWL10..RHD201510-201809

RUSSIA SPEC

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iGRL11..RHD201203-201510

main45025-30390iARL10201203-201809

main45025-30400iGRL15201201-201206

sub45025-30401

main45025-30401iGRL15201207-201809

main45025-30440iAWL10,GWL10..RHD201309-201809

main45025-30450iAWL10,GWL10..LHD201309-201809

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30170iAWL10,GRL11,GWL10..RHD201203-201510

main45206-30180iAWL10,GRL11,GWL10..LHD201203-201510

main45206-30190iAWL10,GWL10..RHD201510-201809

main45206-30200iARL10,AWL10,GWL10..LHD201510-201809

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iAWL10,GRL11,GWL10201203-201809

main45260-30230iGRL15201201-201809

45286COVER, STEERING COLUMN

main45286-3A915-C0iAWL10,GRL1#,GWL10..STD201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub45286-3A919

main45286-3A915-C0iAWL10,GWL10..ECO201203-201510

BLACK,TRIM0#,1#,2#,4#

sub45286-3A919

main45286-3A919-C0iAWL10,GWL10..ECO201510-201809

BLACK,TRIM0#,1#,2#,6#

main45286-3A919-C0iAWL10,GWL10..ECO201510-201809

BLACK,TRIM0#,1#,2#,3#,5#,6#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30230iAWL10,GRL1#,GWL10201201-201809

45897BOLT, STEERING LOCK SET

main45897-12020iAWL10,GRL1#,GWL10201201-201809

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

15 parts on this diagram · 3 diagrams in section
