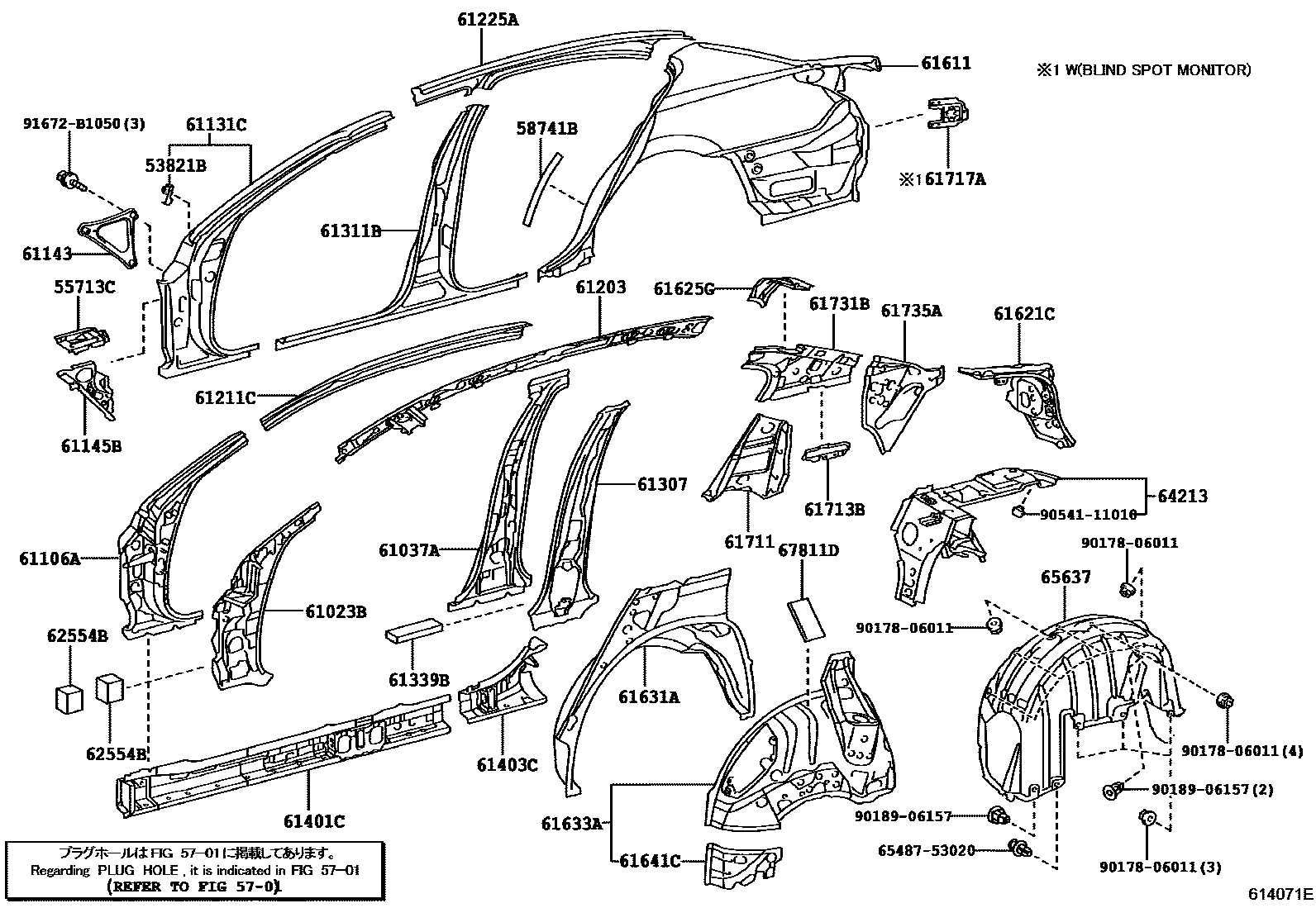

Toyota LEXUS GS SERIES — SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
55713CPANEL, COWL TOP SIDE, RH
5701
58741BPROTECTOR, QUARTER PANEL, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61143GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211CRAIL, ROOF SIDE, RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61311BPILLAR, CENTER BODY, OUTER RH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61611PANEL, QUARTER, RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
sub61633-30906
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
62554BPAD, PILLAR, NO.4
67811DPAD, QUATER SILENCER
6548753020CLIP, CORNER PROTECTOR
main65487-53020
9017806011
main90178-06011
9018906157
main90189-06157
9054111010
main90541-11010
91672B1050
main91672-B1050
38 parts on this diagram · 4 diagrams in section
