Toyota LEXUS GS SERIES — SHORT BLOCK ASSEMBLY

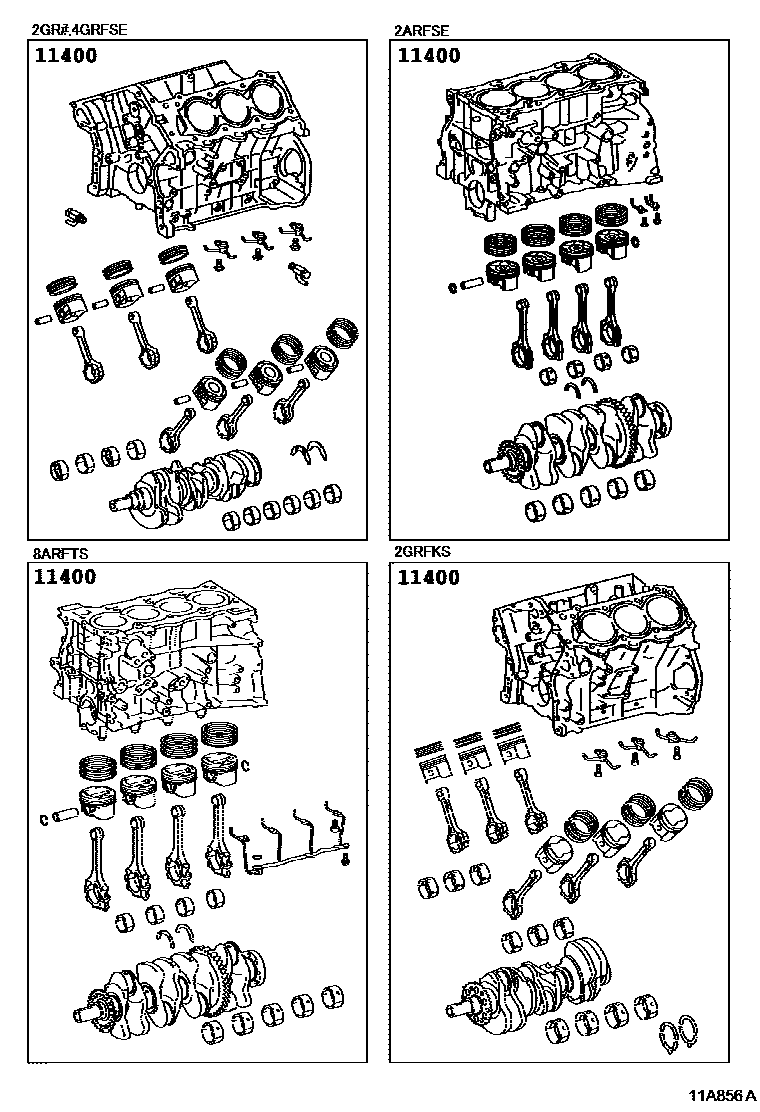

Parts diagram
11400BLOCK ASSY, SHORT
main11400-31050i201203-201403
sub11400-39035
main11400-31171i201201-201403
sub11400-39075
main11400-31320i201203-201403
sub11400-39085
main11400-31410i201510-201809
main11400-36090i201309-201403
sub11400-36130
main11400-36130i201403-201809
main11400-36190i201510-201809
main11400-39025i201407-201411
main11400-39035i201403-201406
sub11400-39025
main11400-39045i201411-201510
main11400-39075i201403-201510
main11400-39085i201403-201809

1 parts on this diagram · 1 diagram in section
