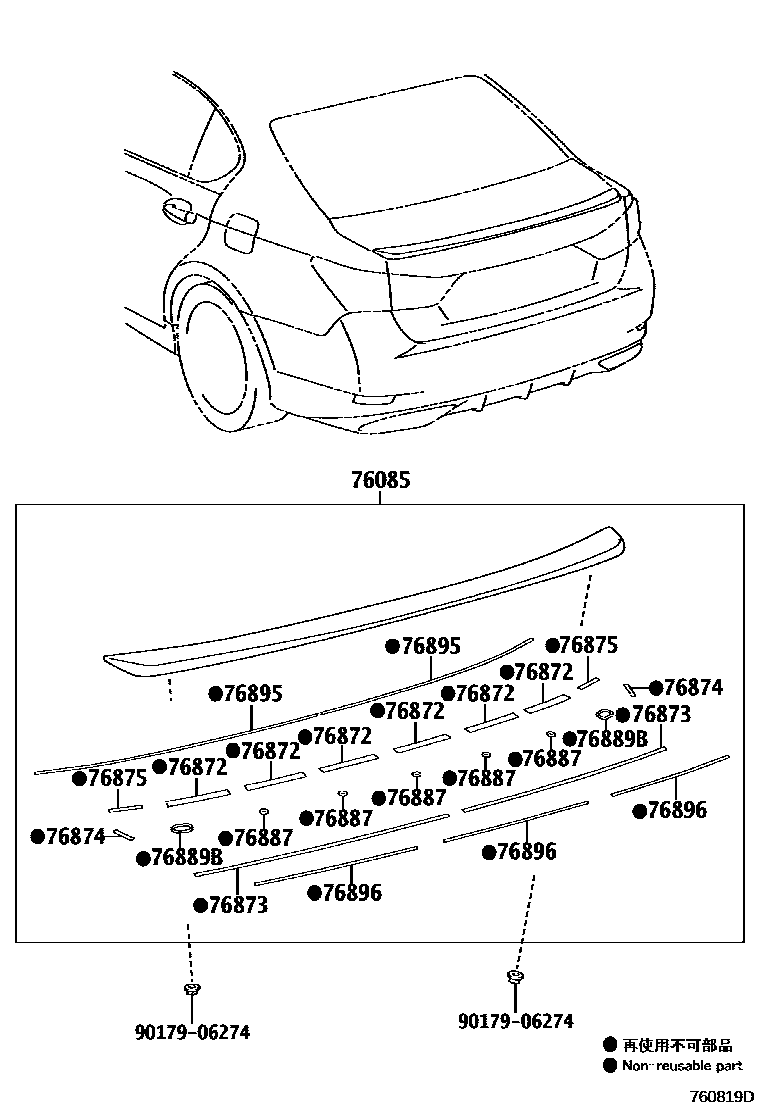

Toyota LEXUS GS SERIES — MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
F SPORT,WHITE PEARL CS.,077
WHITE PEARL CS.,077
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
F SPORT,MERCURY GRAY MC.,1H9
F SPORT,SONIC SILVER,1J2
SONIC SILVER,1J2
SONIC TITANIUM,1J7
F SPORT,SONIC TITANIUM,1J7
THE CRAFTED LINE,SONIC TITANIUM,1J7
F SPORT,DK.GRAY MC.,1G0
DK.GRAY MC.,1G0
BLACK,212
F SPORT,BLACK,212
BLACK OPAL MC.,214
F SPORT,STARLIGHT BLACK GF.,217
STARLIGHT BLACK GF.,217
F SPORT,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
F SPORT,CRIMSON CS. GF.,3S8
CRIMSON CS. GF.,3S8
RED MC.CS.,3R1
F SPORT,RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
FIRE AGATE M.M.,4V3
AMBER CS.,4X2
LAPIS LAZULI MC.,8V3
F SPORT,LAPIS LAZULI MC.,8V3
METEOR BLUE M.M.,8W3
DEEP BLUE MC.,8X5
76872PROTECTOR, REAR SPOILER, NO.1
F SPORT
76873PROTECTOR, REAR SPOILER, NO.2
F SPORT
76874PROTECTOR, REAR SPOILER, NO.3
F SPORT
76875PROTECTOR, REAR SPOILER, NO.4
F SPORT
76887SEAL, REAR SPOILER
F SPORT
76889BSEAL, REAR SPOILER, NO.1
F SPORT
76895PROTECTOR, REAR SPOILER, NO.5
F SPORT
76896PROTECTOR, REAR SPOILER, NO.6
F SPORT
9017906274
main90179-06274
10 parts on this diagram · 1 diagram in section
