Toyota LEXUS GS SERIES — METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1HEAD-UP DISPLAY 0004 1HEAD-UP DISPLAY 0005 1HEAD-UP DISPLAY 0006 1HEAD-UP DISPLAY

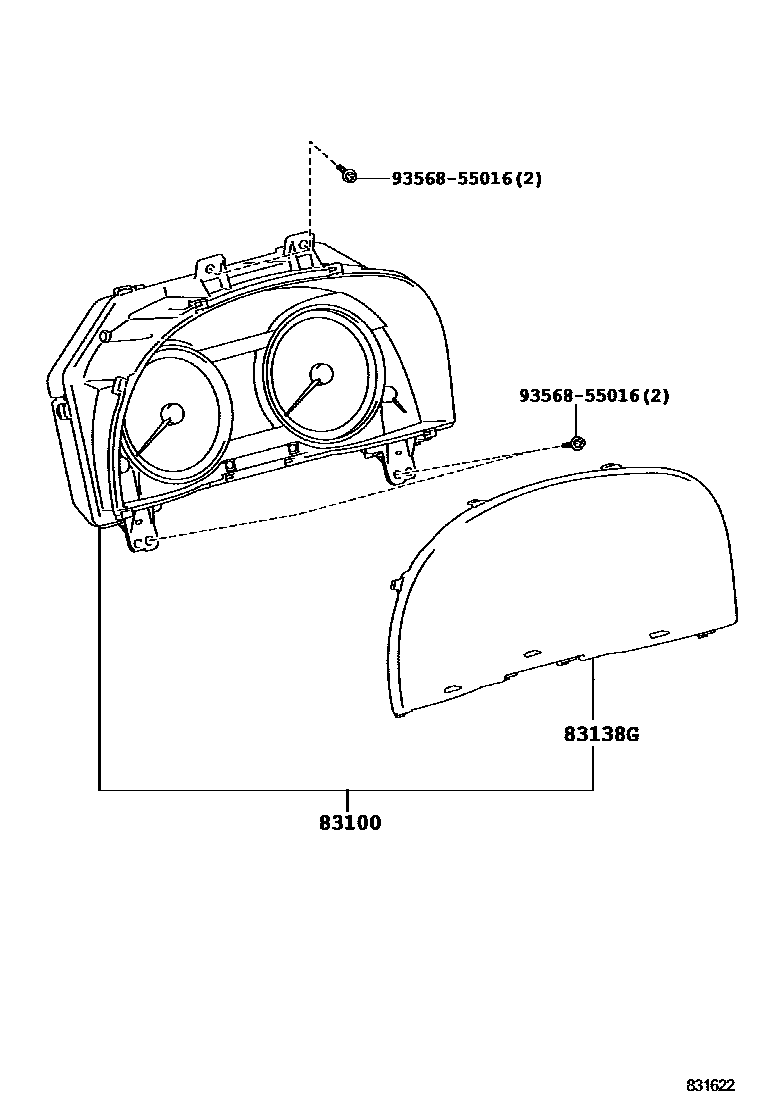

83100METER ASSY, COMBINATION

main83800-30R60iGRL1#201309-201402

sub83800-3A700

main83800-30S50iAWL10,GWL10201309-201402

sub83800-3A760

main83800-3A330iGRL1#201201-201309

sub83800-3A820

main83800-3A450iGWL10201203-201309

sub83800-3A880

main83800-3A580iGRL1#201409-201510

main83800-3A640iAWL10,GWL10201409-201510

main83800-3A700iGRL1#201403-201409

main83800-3A760iAWL10,GWL10201403-201409

main83800-3AA80iGRL16201510-201609

main83800-3AA90iARL10201510-201609

main83800-3AB50iAWL10,GWL10201510-201609

main83800-3AG50iARL10201609-201709

main83800-3AJ10iAWL10,GWL10201609-201709

main83800-3AK60iGRL16201609-201709

main83800-3AM50iGRL16201709-201711

sub83800-3AM51

main83800-3AM51iGRL16201712-201809

DENSO

main83800-3AM60iARL10201709-201711

sub83800-3AM61

main83800-3AM61iARL10201712-201809

DENSO

main83800-3AN10iAWL10,GWL10201709-201809

83138GGLASS, COMBINATION METER

main83852-30K60iAWL10,GRL1#,GWL10201201-201510

main83852-3AA00iARL10,AWL10,GRL16,GWL10201510-201809

9356855016

main93568-55016

3 parts on this diagram · 6 diagrams in section
