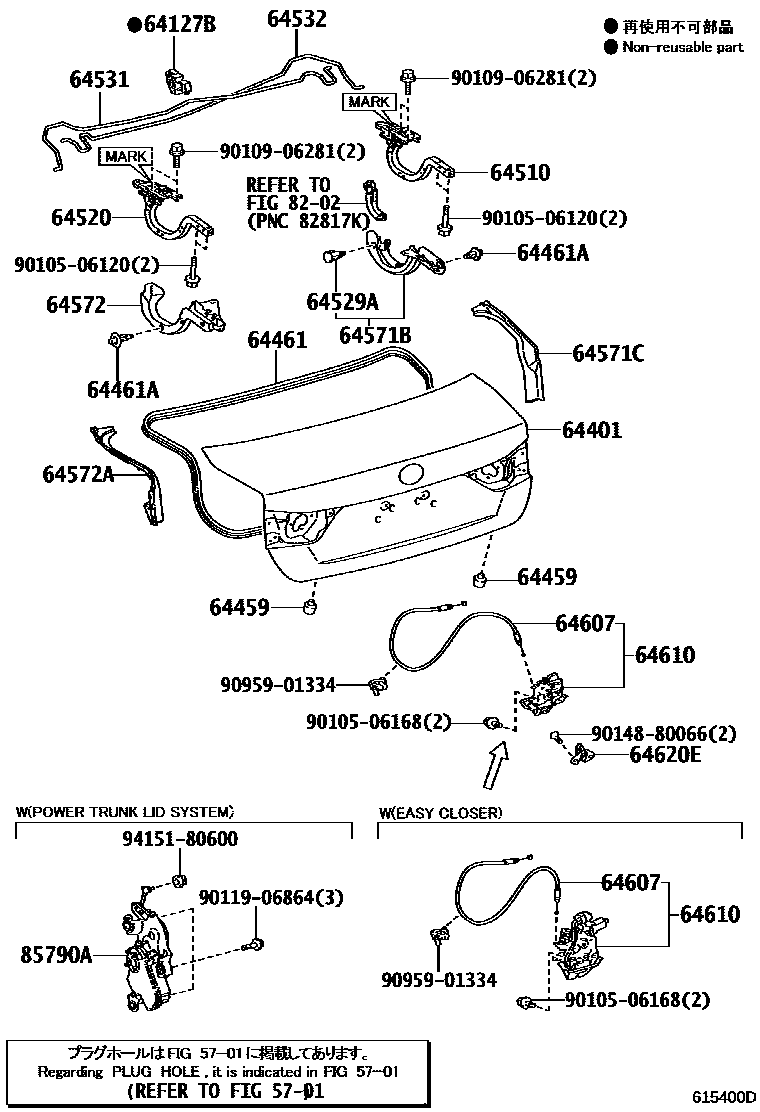

Toyota LEXUS GS SERIES — LUGGAGE COMPARTMENT DOOR & LOCK

5701

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150iAWL10,GRL1#,GWL10201201-201809

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30C90iGRL1#,GWL10..STD201201-201309

main64401-30C91iAWL10,GRL1#,GWL10..STD201309-201407

sub64401-30C92

main64401-30C92iAWL10,GRL1#,GWL10..STD201408-201809

main64401-30D00iGWL10..ECO201203-201309

main64401-30D01iAWL10,GWL10..ECO201309-201407

F SPORT

sub64401-30D02

main64401-30D02iAWL10,GWL10..ECO201408-201809

F SPORT

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116iAWL10,GRL1#,GWL10201201-201809

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30380iAWL10,GRL1#,GWL10201201-201809

64461ACLIP(FOR DECK TRIM COVER)

main90467-07076-C0iAWL10,GRL1#,GWL10..STD201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iAWL10,GWL10..ECO201203-201510

BLACK,TRIM0#,1#,2#,4#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iAWL10,GWL10..ECO201510-201703

BLACK,TRIM0#,1#,2#,6#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iAWL10,GWL10..ECO201510-201703

BLACK,TRIM0#,1#,2#,3#,5#,6#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAWL10,GWL10..ECO201703-201809

BLACK,TRIM0#,1#,2#,6#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iAWL10,GWL10..ECO201703-201809

BLACK,TRIM0#,1#,2#,3#,5#,6#

sub90467-07041

sub90467-07076

sub90467-A0016

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30520iARL10,AWL10,GRL16,GWL10201201-201809

MARK = 0

main64510-30530iAWL10,GRL1#,GWL10201201-201809

MARK = +

main64510-30540iAWL10,GRL1#,GWL10201201-201809

MARK = -

sub64510-30520

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30320iARL10,AWL10,GRL16,GWL10201201-201809

MARK = 0

main64520-30330iAWL10,GRL1#,GWL10201201-201809

MARK = +

main64520-30340iARL10,AWL10,GRL16,GWL10201201-201809

MARK = -

sub64520-30320

64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE

main64529-30180iAWL10,GRL1#,GWL10201201-201809

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30340iGRL15201201-201202

sub64531-30341

main64531-30341iAWL10,GRL1#,GWL10201203-201510

main64531-30350iARL10,AWL10,GRL16,GWL10..STD201510-201809

main64531-30370iAWL10,GWL10..ECO201510-201809

F SPORT

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30340iGRL15201201-201202

sub64532-30341

main64532-30341iAWL10,GRL1#,GWL10201203-201510

main64532-30350iARL10,AWL10,GRL16,GWL10..STD201510-201809

main64532-30370iAWL10,GWL10..ECO201510-201809

F SPORT

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30160iGRL1#,GWL10201201-201309

main64571-30190iAWL10,GRL1#,GWL10201309-201809

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-30170iAWL10,GRL1#,GWL10201201-201510

main64571-30200iARL10,AWL10,GRL16,GWL10201510-201809

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30110iGRL1#,GWL10201201-201309

main64572-30130iAWL10,GRL1#,GWL10201309-201809

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-30120iAWL10,GRL1#,GWL10201201-201510

main64572-30150iARL10,AWL10,GRL16,GWL10201510-201809

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-30130iAWL10,GRL1#,GWL10201201-201510

main64607-30210iARL10,AWL10,GRL16,GWL10201510-201809

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30200iAWL10,GRL1#,GWL10201201-201510

main64650-30100iARL10,AWL10,GRL16,GWL10201510-201703

sub64650-30101

main64650-30101iARL10,AWL10,GRL16,GWL10201704-201809

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iAWL10,GRL1#,GWL10201201-201809

8202

85790AMOTOR ASSY, LUGGAGE CLOSER

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9011906864

main90119-06864

9014880066

main90148-80066

9095901334

main90959-01334

9415180600

main94151-80600

27 parts on this diagram · 1 diagram in section
