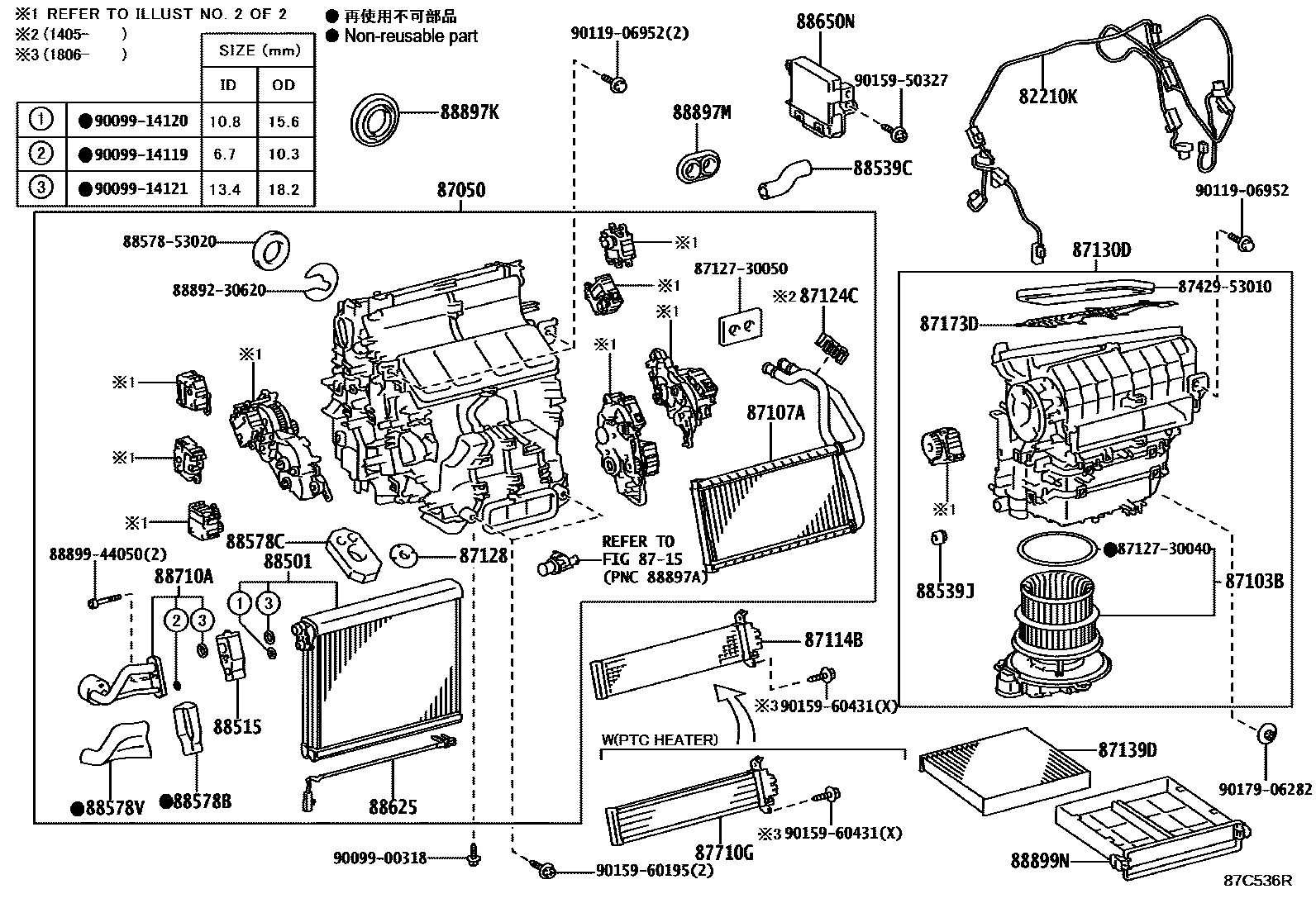

Toyota LEXUS GS SERIES — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
KYRGYZSTAN SPEC&VERSION L
MACEDONIA SPEC&VERSION L
MOLDOVA SPEC&VERSION L
RUSSIA SPEC&VERSION L
UKRAINE SPEC&VERSION L
SERBIA SPEC&VERSION L
MONTENEGRO SPEC&VERSION L
CROATIA SPEC&VERSION L
KAZAKHSTAN SPEC&VERSION L
BELARUS SPEC&VERSION L
BOSNIA HERCEGOVINA SPEC&VERSION L
AZERBAYCAN SPEC&VERSION L
ARMENIA SPEC&VERSION L
GEORGIA SPEC&VERSION L
TURKMENISTAN SPEC&VERSION L
ALBANIA SPEC&VERSION L
87050RADIATOR ASSY, AIR CONDITIONER
sub87050-30252
sub87050-30253
sub87050-30291
sub87050-30292
sub87050-30293
sub87050-30472
sub87050-30473
sub87050-30522
sub87050-30523
sub87050-30532
sub87050-30533
sub87050-30581
sub87050-30601
sub87050-30631
sub87050-30661
sub87050-30751
sub87050-30761
sub87050-53082
sub87050-53083
87114BCOVER, HEATER
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
sub87130-30801
sub87130-30802
sub87130-30830
sub87130-30821
sub87130-30822
sub87130-30840
87139DELEMENT, AIR REFINER
8715
87173DPROTECTOR HEATER
87710GQUICK HEATER ASSY
COLD AREA SPEC
88515VALVE, COOLER EXPANSION
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88578VPACKING, COOLING UNIT, NO.3
88625THERMISTOR, COOLER, NO.1
ICELAND SPEC&VERSION L
GREECE SPEC
GREECE SPEC&VERSION L
SWITZERLAND SPEC
SWITZERLAND SPEC&VERSION L
AUSTRIA SPEC
AUSTRIA SPEC&VERSION L
CZECH,HUNGARY,SLOVAKIA,POLAND SPEC
CZECH,HUNGARY,SLOVAKIA,POLAND SPEC&VERSION L
BALTIC SPEC
BALTIC SPEC&VERSION L
ROMANIA,BULGARIA SPEC
ROMANIA,BULGARIA SPEC&VERSION L
ADRIA(SLOVENIA) SPEC
ADRIA(SLOVENIA) SPEC&VERSION L
ISRAEL,TURKEY SPEC
ISRAEL,TURKEY SPEC&VERSION L
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC&VERSION L
IRELAND SPEC
IRELAND SPEC&VERSION L
CYPRUS SPEC
CYPRUS SPEC&VERSION L
GERMANY SPEC
GERMANY SPEC&VERSION L
FRANCE SPEC
FRANCE SPEC&VERSION L
REUNION SPEC
REUNION SPEC&VERSION L
ITALY SPEC
ITALY SPEC&VERSION L
SPAIN SPEC
SPAIN SPEC&VERSION L
CANARY ISLANDS SPEC
CANARY ISLANDS SPEC&VERSION L
PORTUGAL SPEC
PORTUGAL SPEC&VERSION L
BELGIUM,NETHERLAND SPEC
BELGIUM,NETHERLAND SPEC&VERSION L
NORDIC SPEC
NORDIC SPEC&VERSION L
ICELAND SPEC
88650NAMPLIFIER ASSY, AIR CONDITIONER
sub88650-30M71
sub88650-30S41
MOLDOVA SPEC&COLD AREA SPEC
SERBIA SPEC&COLD AREA SPEC
MONTENEGRO SPEC&COLD AREA SPEC
CROATIA SPEC&COLD AREA SPEC
BOSNIA HERCEGOVINA SPEC&COLD AREA SPEC
AZERBAYCAN SPEC&COLD AREA SPEC
GEORGIA SPEC&COLD AREA SPEC
TURKMENISTAN SPEC&COLD AREA SPEC
ALBANIA SPEC&COLD AREA SPEC
MACEDONIA SPEC&COLD AREA SPEC
RUSSIA SPEC&COLD AREA SPEC
UKRAINE SPEC&COLD AREA SPEC
KAZAKHSTAN SPEC&COLD AREA SPEC
BELARUS SPEC&COLD AREA SPEC
ARMENIA SPEC&COLD AREA SPEC
KYRGYZSTAN SPEC&COLD AREA SPEC
sub88650-30S91
COLD AREA SPEC
COLD AREA SPEC
sub88650-3AU20
sub88650-3AS61
sub88650-3AT41
COLD AREA SPEC
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899NPLATE, COVER
8712730040PACKING, HEATER AIR DAMPER
main87127-30040
8712730050PACKING, HEATER AIR DAMPER
main87127-30050
8742953010PIPE, COMBUSTION HEATER OUTLET
main87429-53010
8857853020PAKING, COOLER AIR DUCT
main88578-53020
8889230620BRACKET, COOLER EVAPORATOR MOUNTING
main88892-30620
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906952
main90119-06952
9015950327
main90159-50327
9015960195
main90159-60195
9015960431
main90159-60431
9017906282
main90179-06282
40 parts on this diagram · 4 diagrams in section
