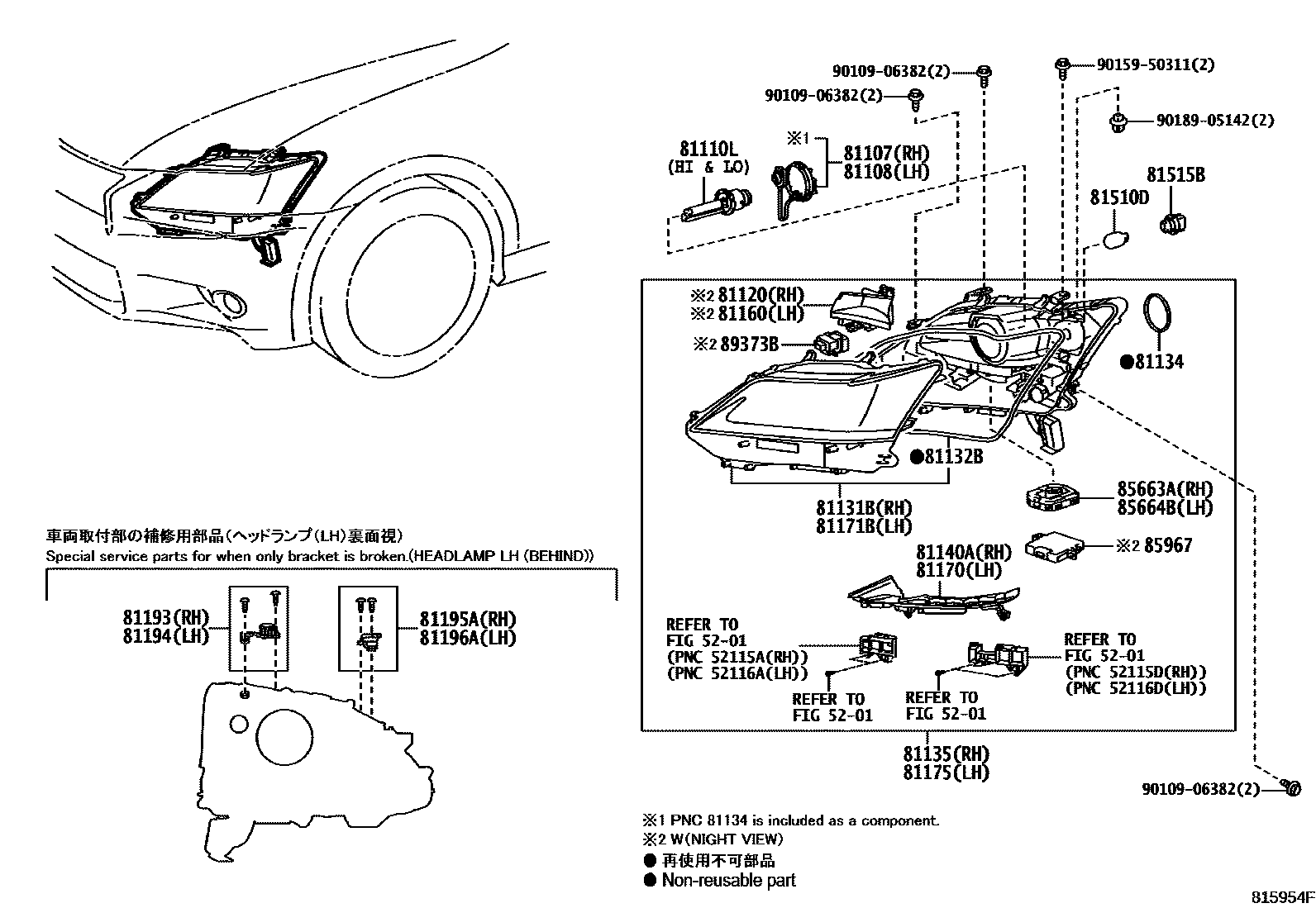

Toyota LEXUS GS SERIES — HEADLAMP

0001 1DISCHARGE HEADLAMP 0002 1LED HEADLAMP 0003 1LED(PROJECTOR) 0004 1LED(TRINOCULAR FULL LED)

5201

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-75020iAWL10,GRL1#,GWL10201201-201510

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-75020iAWL10,GRL1#,GWL10201201-201510

81110HEADLAMP ASSY, RH

main90981-20024

main81110-30G50

main81110-30G60

main81110-30G90

main81110-30J00

main81110-30J01

81110LBULB, DISCHARGE HEADLAMP

main90981-20024iAWL10,GRL1#,GWL10201201-201510

42V 35W

81120HEADLAMP SUB-ASSY, RH

main81120-30G00

main81120-30G70

81131BHEAD LAMP LENS, RH

main81131-30G10iAWL10,GRL1#,GWL10..LHD201201-201510

main81131-30G40iAWL10,GRL11,GWL10..RHD201203-201510

main81131-30K60iAWL10,GWL10..RHD201510-201809

main81131-30K70iARL10,AWL10,GRL16,GWL10..LHD201510-201809

81132BGASKET, HEADLAMP LENS

main81132-30E40iARL10,AWL10,GRL16,GWL10201510-201809

main81132-50590iAWL10,GRL1#,GWL10201201-201510

81134GASKET, HEADLAMP

main90075-23002iAWL10,GRL1#,GWL10201201-201510

main90075-23003iARL10,AWL10,GRL16,GWL10201510-201809

81135UNIT ASSY, HEADLAMP, RH

main81145-30G10iAWL10,GRL1#,GWL10..LHD201201-201510

main81145-30G40iAWL10,GRL11,GWL10..RHD201203-201510

main81145-30K60iAWL10,GWL10..RHD201510-201809

main81145-30K70iARL10,AWL10,GRL16,GWL10..LHD201510-201809

81140UNIT ASSY, HEADLAMP LED, RH

main81140-30F70

main81140-30G50

main81140-30G60

main81140-30J00

81140AUNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH

main81140-30F70iAWL10,GRL1#,GWL10201201-201510

81160HEADLAMP SUB-ASSY, LH

main81160-30G00

main81160-30G60

main81160-30G70

main81160-30J00

81170UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH

main81170-30F70iAWL10,GRL1#,GWL10201201-201510

81171BHEAD LAMP LENS, LH

main81171-30G10iAWL10,GRL1#,GWL10..LHD201201-201510

main81171-30G40iAWL10,GRL11,GWL10..RHD201203-201510

main81171-30K60iAWL10,GWL10..RHD201510-201809

main81171-30K70iARL10,AWL10,GRL16,GWL10..LHD201510-201809

81175UNIT ASSY, HEADLAMP, LH

main81185-30G10iAWL10,GRL1#,GWL10..LHD201201-201510

main81185-30G40iAWL10,GRL11,GWL10..RHD201203-201510

main81185-30K60iAWL10,GWL10..RHD201510-201809

main81185-30K70iARL10,AWL10,GRL16,GWL10..LHD201510-201809

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-30090iAWL10,GRL1#,GWL10201201-201510

main81193-30120iARL10,AWL10,GRL16,GWL10201510-201809

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-30090iAWL10,GRL1#,GWL10201201-201510

main81194-30120iARL10,AWL10,GRL16,GWL10201510-201809

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-30050iAWL10,GRL1#,GWL10201201-201510

main81195-30070iARL10,AWL10,GRL16,GWL10201510-201809

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-30050iAWL10,GRL1#,GWL10201201-201510

main81196-30070iARL10,AWL10,GRL16,GWL10201510-201809

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iAWL10,GRL1#,GWL10201201-201809

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iAWL10,GRL1#,GWL10201201-201510

85663AMOTOR, HEADLAMP SWIVEL, RH

main85663-30020iAWL10,GRL1#,GWL10201201-201510

85664BMOTOR, HEADLAMP SWIVEL, LH

main85664-30020iAWL10,GRL1#,GWL10201201-201510

85967COMPUTER, LIGHT CONTROL

main85967-30060

main85967-30070

89373BSENSOR, LAMP FAILURE INDICATOR

9010906382

main90109-06382

9015950311

main90159-50311

9018905142

main90189-05142

29 parts on this diagram · 4 diagrams in section
