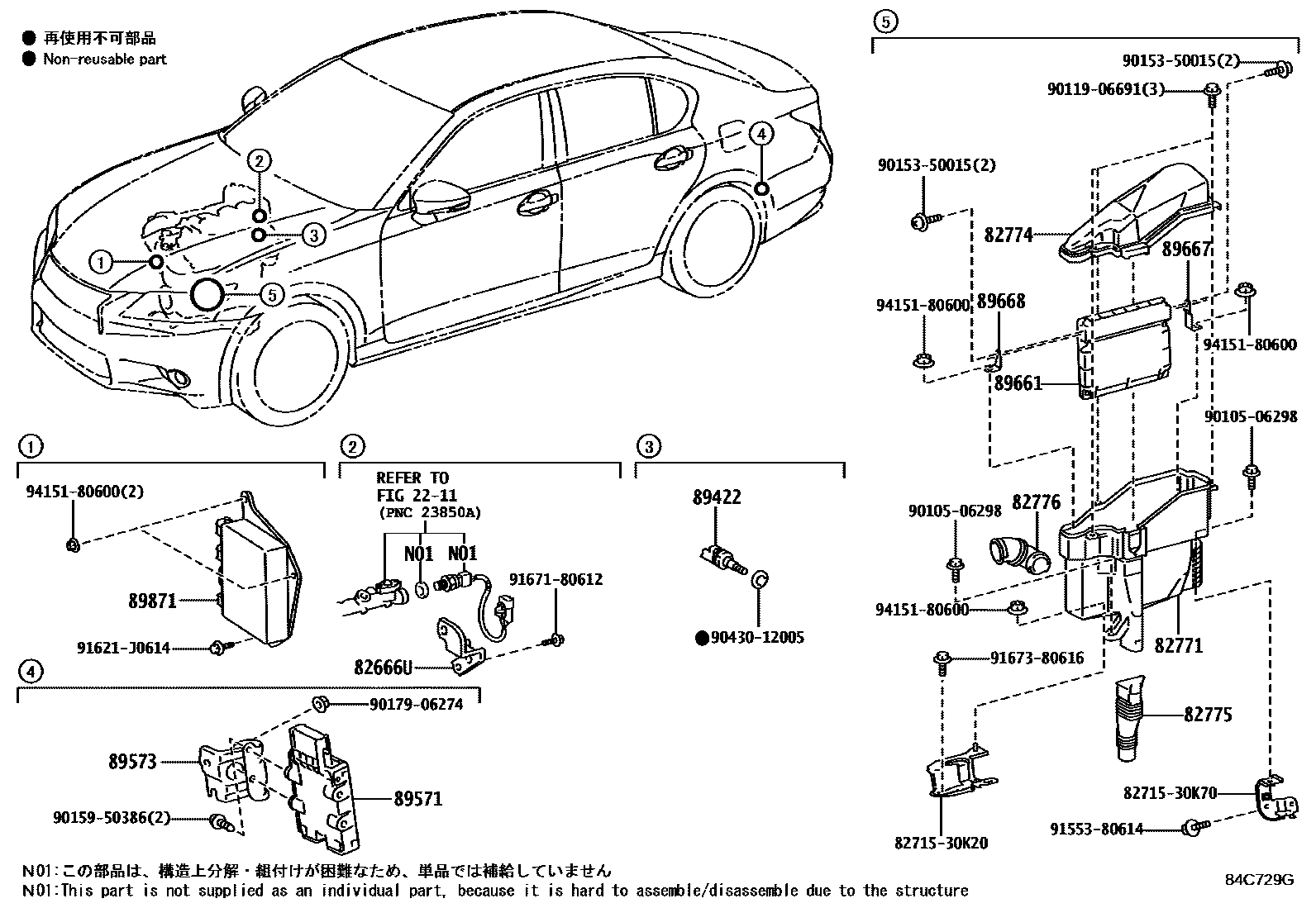

Toyota LEXUS GS SERIES — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

2211

82666UHOLDER, CONNECTOR

main82666-30780iGRL1#201201-201510

82771BOX, ENGINE ROOM ECU

main82771-30060iGRL1#201201-201510

main82771-30070iAWL10,GWL10201203-201809

main82771-30080iARL10,GRL16201510-201809

82774COVER, ENGINE ROOM ECU

main82774-30060iGRL1#201201-201510

main82774-30080iAWL10,GWL10201203-201809

main82774-30090iARL10,GRL16201510-201809

82775DUCT, ENGINE ROOM ECU INLET

main82775-30070iGRL1#201201-201809

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30150iGRL1#201201-201510

main82776-30160iARL10,GRL16201510-201809

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAWL10,GRL1#,GWL10201201-201809

main89422-47010iGRL16201510-201809

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iAWL10,GRL1#,GWL10201201-201510

main89571-58010iARL10,GRL16201510-201809

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-30090iAWL10,GRL1#,GWL10201201-201510

main89573-53030iARL10,GRL16201510-201809

89661COMPUTER, ENGINE CONTROL

main89661-30F80iGRL11201309-201510

main89661-30T60iGWL10201203-201510

main89661-30U20iGRL11201203-201309

main89661-30V10iGRL15201201-201309

main89661-30Y00iGRL15201309-201510

main89661-30Y50iAWL10201309-201409

main89661-30Z70iAWL10201409-201510

main89661-3AA00iARL10201510-201606

sub89661-3AA01

main89661-3AA01iARL10201607-201609

main89661-3AA40iAWL10201510-201809

main89661-3AA90iGWL10201510-201809

main89661-3AB60iGRL16201510-201709

main89661-3AE40iARL10201609-201809

main89661-3AG70iGRL16201709-201809

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30300iGRL1#201201-201510

main89667-30310iAWL10,GWL10201203-201809

main89667-53040iARL10,GRL16201510-201809

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30250iAWL10,GWL10201203-201809

main89668-30280iGRL1#201201-201510

main89668-53040iARL10,GRL16201510-201809

89871DRIVER, INJECTOR

main89871-30040iGWL10201203-201809

main89871-30050iAWL10201309-201809

main89871-53010iGRL1#201201-201510

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20

8271530K70BRACKET,WIRING HARNESS CLAMP

main82715-30K70

9010506298

main90105-06298

9011906691

main90119-06691

9015350015

main90153-50015

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9167380616

main91673-80616

9415180600

main94151-80600

26 parts on this diagram · 5 diagrams in section
