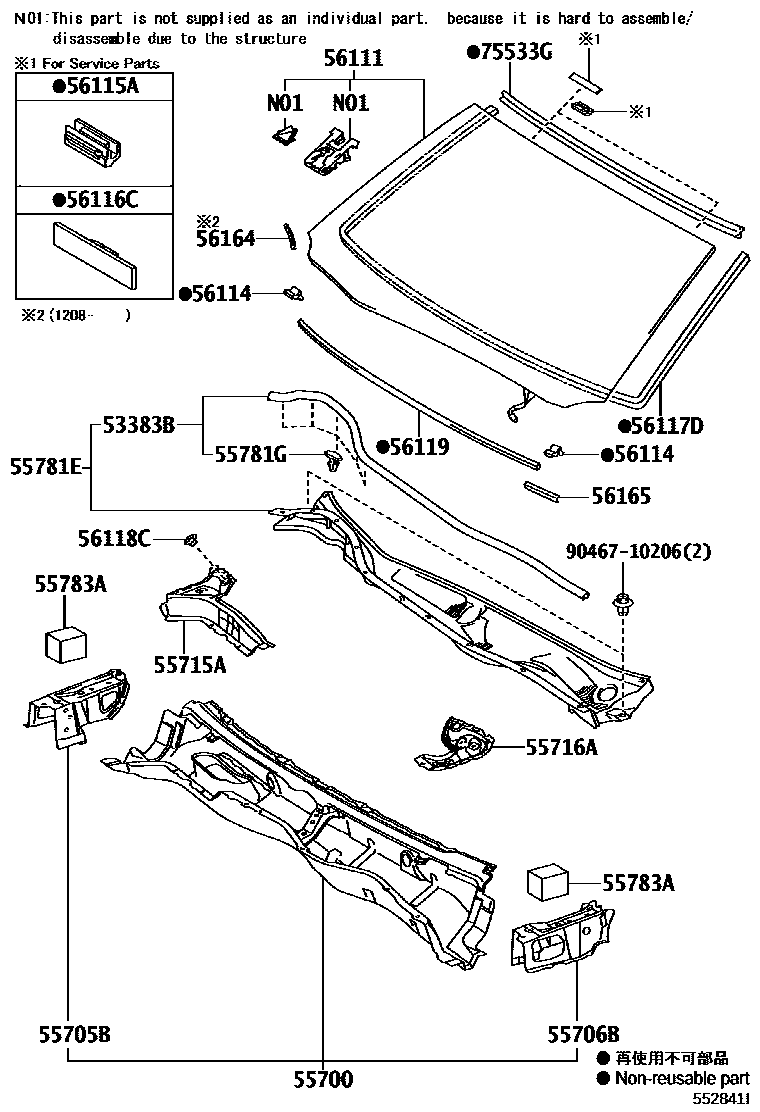

Toyota LEXUS GS SERIES — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
sub56101-30972
sub56101-30977
sub56101-30992
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2919
*D,L=2919,UNITED KINGDOM SPEC&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPAR
*D,L=2919,UNITED KINGDOM SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *L
*D,L=2919,UNITED KINGDOM SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,UNITED KINGDOM SPEC&PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,IRELAND SPEC&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE AL
*D,L=2919,IRELAND SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,IRELAND SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,IRELAND SPEC&PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,CYPRUS SPEC&COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALE
*D,L=2919,CYPRUS SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,CYPRUS SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,CYPRUS SPEC&PRE-COLLISION SYSTEM-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT & *LKA)
*D,L=2919,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,COLD AREA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,PRE-COLLISION SYSTEM-WITH
*D,L=2919,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH
*D,L=2919,HEAD UP DISPLAY-WITH
56118CRETAINER, WINDSHIELD GLASS, NO.2
56119SEAL, WINDSHIELD GLASS
56164COVER, FRONT WINDOW INNER MOULDING, RH
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
20 parts on this diagram · 4 diagrams in section
