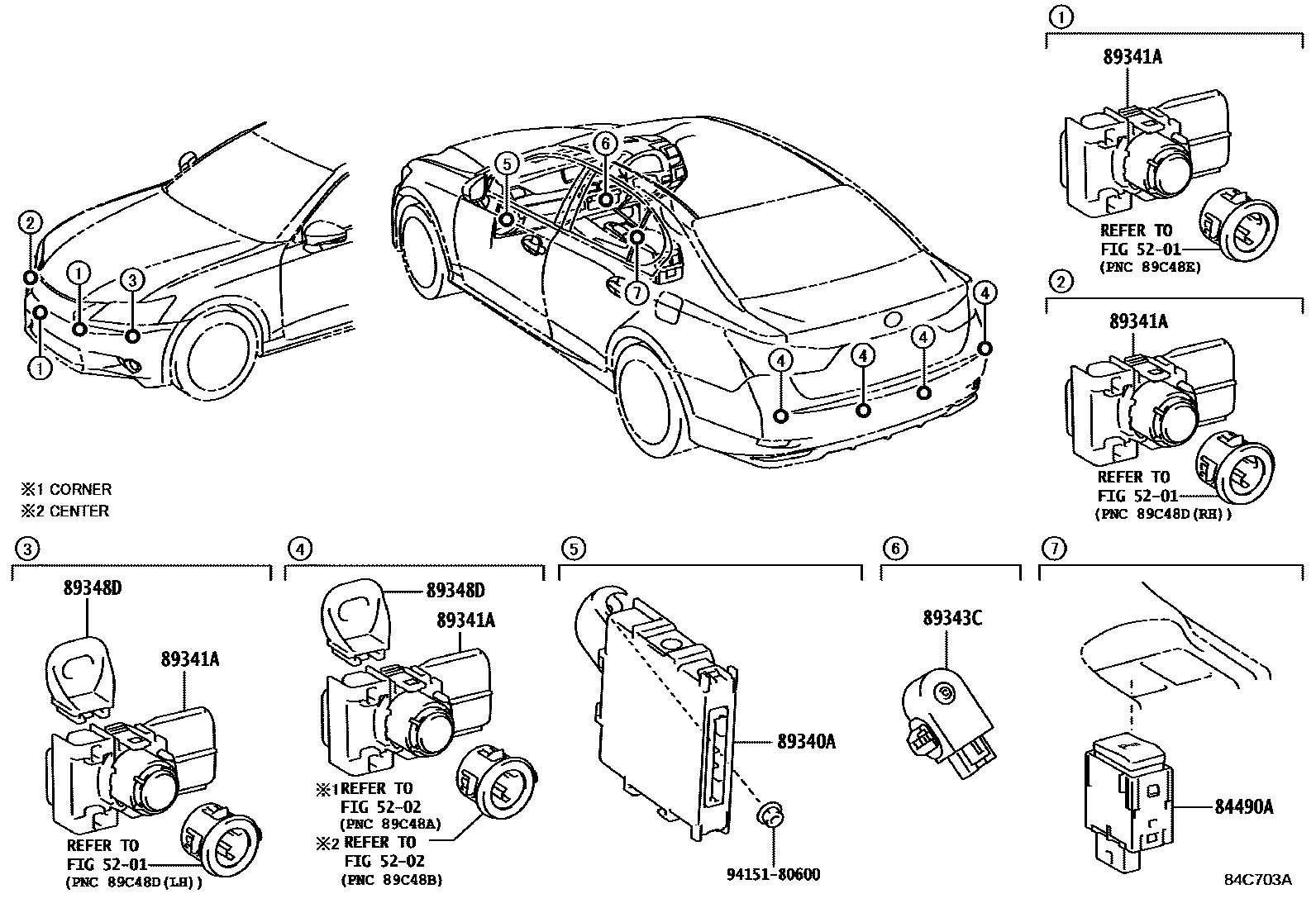

Toyota LEXUS GS SERIES — CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

5201

5202

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

89341ASENSOR, ULTRASONIC, NO.1

89343CBUZZER, CLEARANCE WARNING, NO.1

89348DCLIP, ULTRASONIC SENSOR

9415180600

main94151-80600

8 parts on this diagram · 8 diagrams in section
