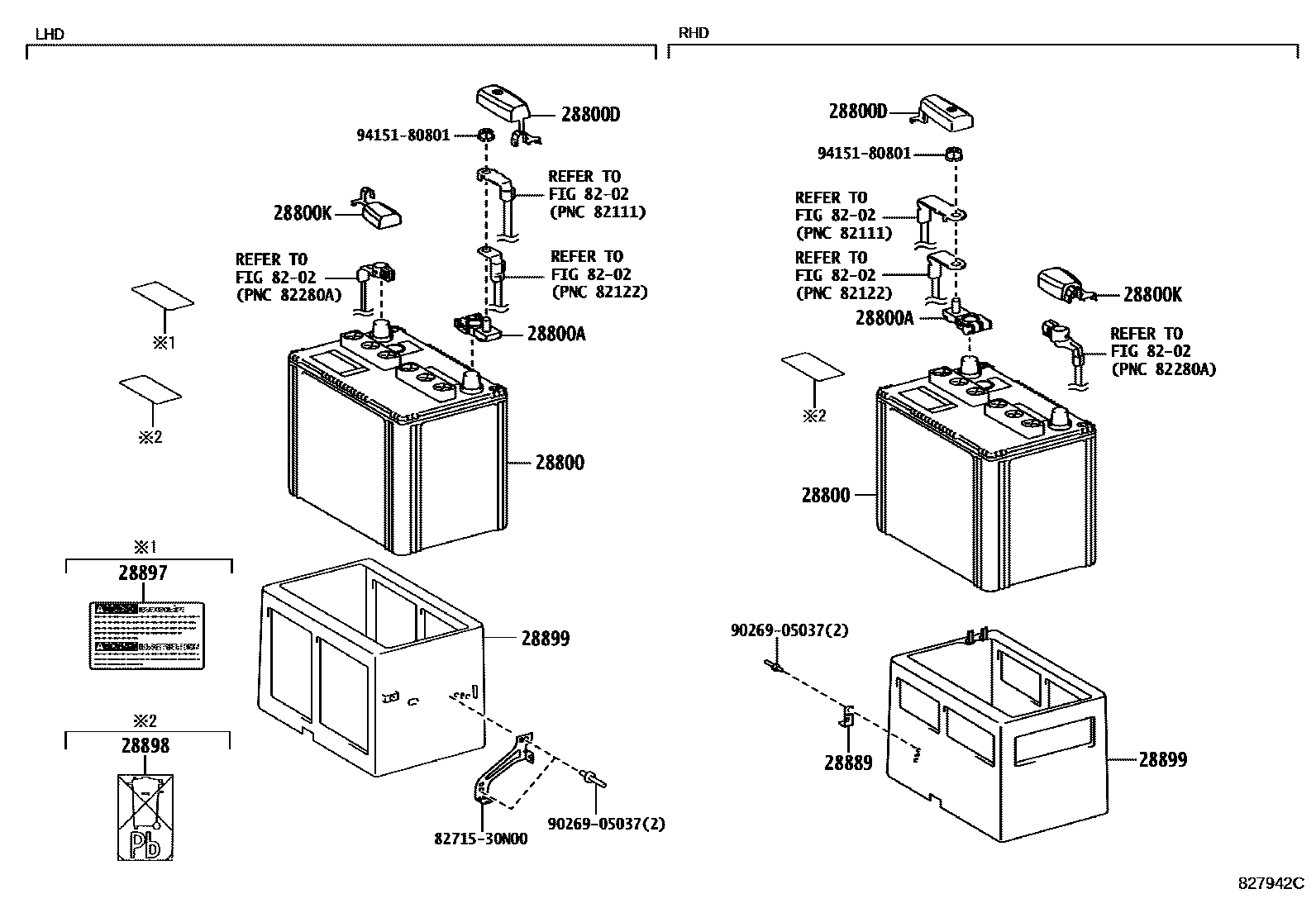

Toyota LEXUS GS SERIES — BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY 0007 1HV BATTERY

28800BATTERY

main28800-31410i2ARFSE,2GRFXE..AWL10,GWL10201203-201809

S65D26L

sub28800-31411

main28800-38080i4GRFSE..GRL11..RHD201203-201510

80D26L

sub28800-38081

main28800-38100i2GRFSE,4GRFSE..GRL1#..LHD201201-201809

80D26R

sub28800-38101

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i2ARFSE,2GRFXE..AWL10,GWL10201203-201809

main90982-05061i4GRFSE..GRL11..RHD201203-201510

main90982-05062i2GRFSE,4GRFSE..GRL1#..LHD201201-201809

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-30640i4GRFSE..GRL11..RHD201203-201510

main82821-30840i2ARFSE,2GRFXE..AWL10,GWL10201203-201809

main82821-50470i8ARFTS,2GRFKS..ARL10,GRL16201201-201809

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRFSE,4GRFSE..GRL1#201201-201809

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i4GRFSE..GRL11..RHD201203-201510

28897PLATE, BATTERY CAUTION

main28897-31040

28898PLATE, BATTERY

main28898-46020i2GRFSE,4GRFSE..GRL1#201201-201809

28899INSULATOR, BATTERY

main28899-31160i2GRFSE,4GRFSE..GRL1#..LHD201201-201510

sub28899-36110

main28899-36110i8ARFTS,2GRFKS..ARL10,GRL16201510-201809

main28899-38060i4GRFSE..GRL11..RHD201203-201510

sub28899-36040

8202

8271530N00BRACKET,WIRING HARNESS CLAMP

main82715-30N00

9026905037

main90269-05037

9415180801

main94151-80801

12 parts on this diagram · 7 diagrams in section
