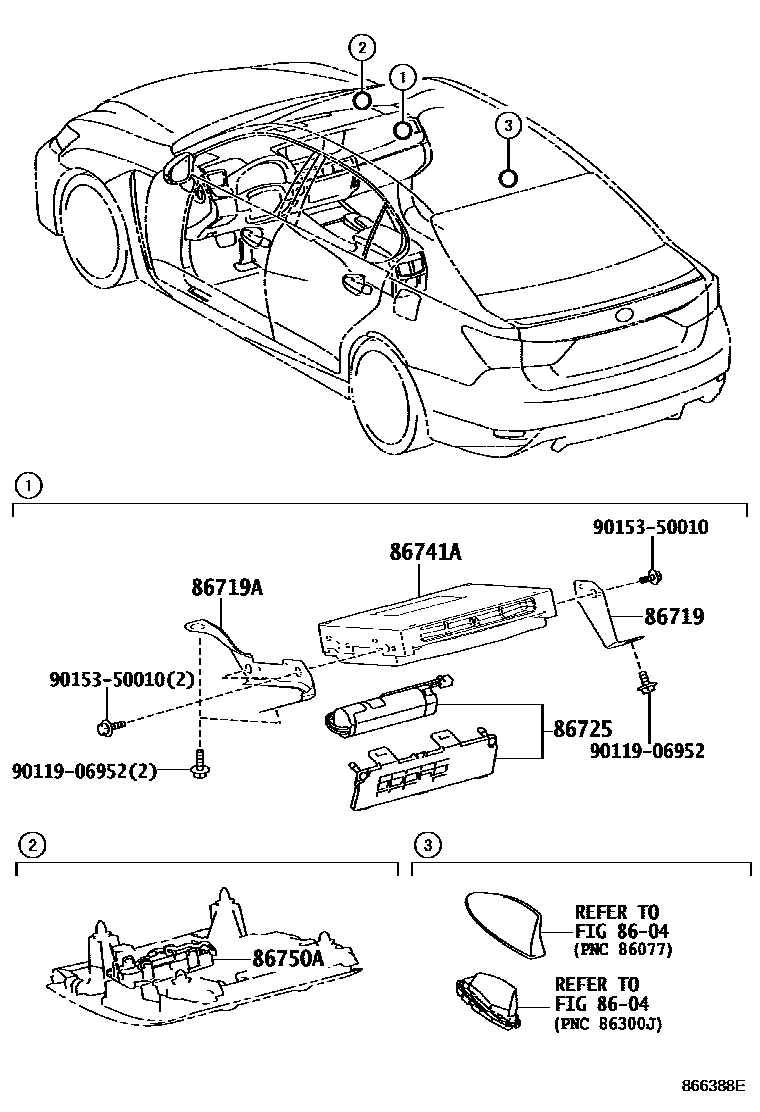

Toyota LEXUS GS F — TELEPHONE & MAYDAY
8604
86719BRACKET, TELEPHONE
CANADA SPEC
CANADA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
KOREA SPEC
KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
GUAM & PUERTO RICO SPEC
HAWAII SPEC
86719ABRACKET, TELEPHONE NO.1
HAWAII SPEC
CANADA SPEC
CANADA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
KOREA SPEC
KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
GUAM & PUERTO RICO SPEC
86725BATTERY, MOBILEPHONE
CANADA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
sub86725-0E010
86741ATRANSCEIVER, TELEMATICS
HAWAII SPEC
CANADA SPEC
CANADA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
KOREA SPEC
KOREA SPEC&EMV & NAVIGATION SYSTEM-8INCH DISPLAY
KOREA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
GUAM & PUERTO RICO SPEC
CANADA SPEC&EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY
sub86741-33090
86750ASWITCH ASSY, MAYDAY
BLACK,TRIM0#,1#,2#,3#,8#
9011906952
main90119-06952
9015350010
main90153-50010
8 parts on this diagram · 2 diagrams in section
