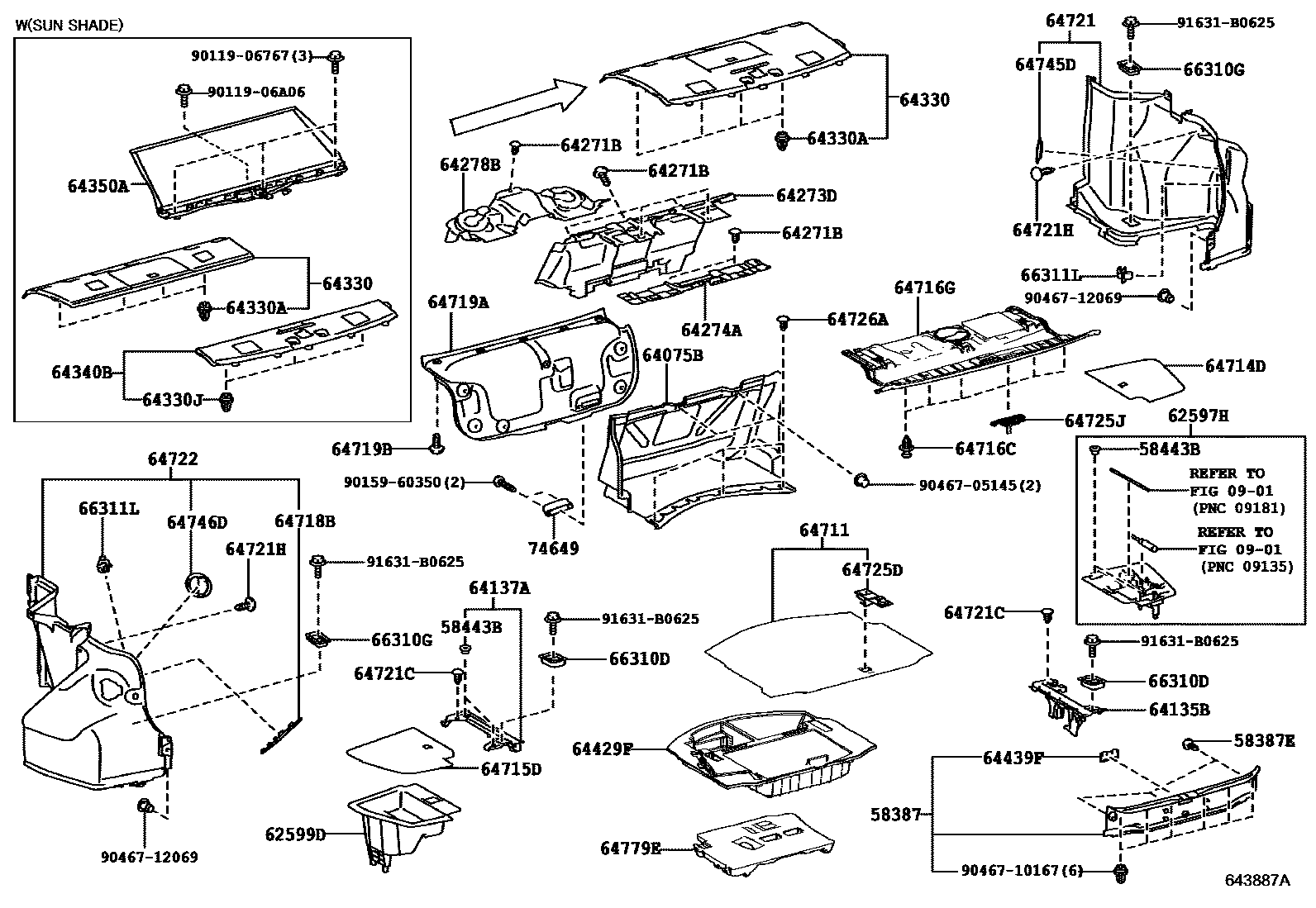

Toyota LEXUS GS F — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
0901
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#,2#,3#,8#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58443BCUSHION, DECK BOARD, NO.1
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,2#,3#,8#
HAWAII SPEC,BLACK,TRIM0#,1#,2#,3#,8#
GUAM & PUERTO RICO SPEC,BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,8#
64135BBRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH
BLACK,TRIM0#,1#,2#,3#,8#
64137ABRACKET, LUGGAGE COMPARTMENT TRAY, REAR LH
BLACK,TRIM0#,1#,2#,3#,8#
64271BCLIP(FOR ROOM PARTITION BOARD)
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64429FBOX, LUGGAGE COMPARTMENT TRIM
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#,8#
HAWAII SPEC,BLACK,TRIM0#,1#,2#,3#,8#
GUAM & PUERTO RICO SPEC,BLACK,TRIM0#,1#,2#,3#,8#
BLACK,TRIM0#,1#,2#,3#,8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,2#,3#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,1#,2#,3#,8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,1#,2#,3#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,2#,3#,8#
BLACK,TRIM0#,2#,3#,8#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#,3#,8#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM0#,1#,2#,3#,8#
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM0#,1#,2#,3#,8#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,3#,8#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,2#,3#,8#
64726ACLIP, LUGGAGE TRIM, REAR
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
64779ETRAY, SPARE WHEEL COVER
66310DHOOK ASSY, ROPE
66310GHOOK ASSY, ROPE
66311LHOOK,ROPE
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,8#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9011906767
main90119-06767
9011906A06
main90119-06A06
9015960350
main90159-60350
9046705145
main90467-05145
9046710167
main90467-10167
9046712069
main90467-12069
91631B0625
main91631-B0625
49 parts on this diagram · 2 diagrams in section
