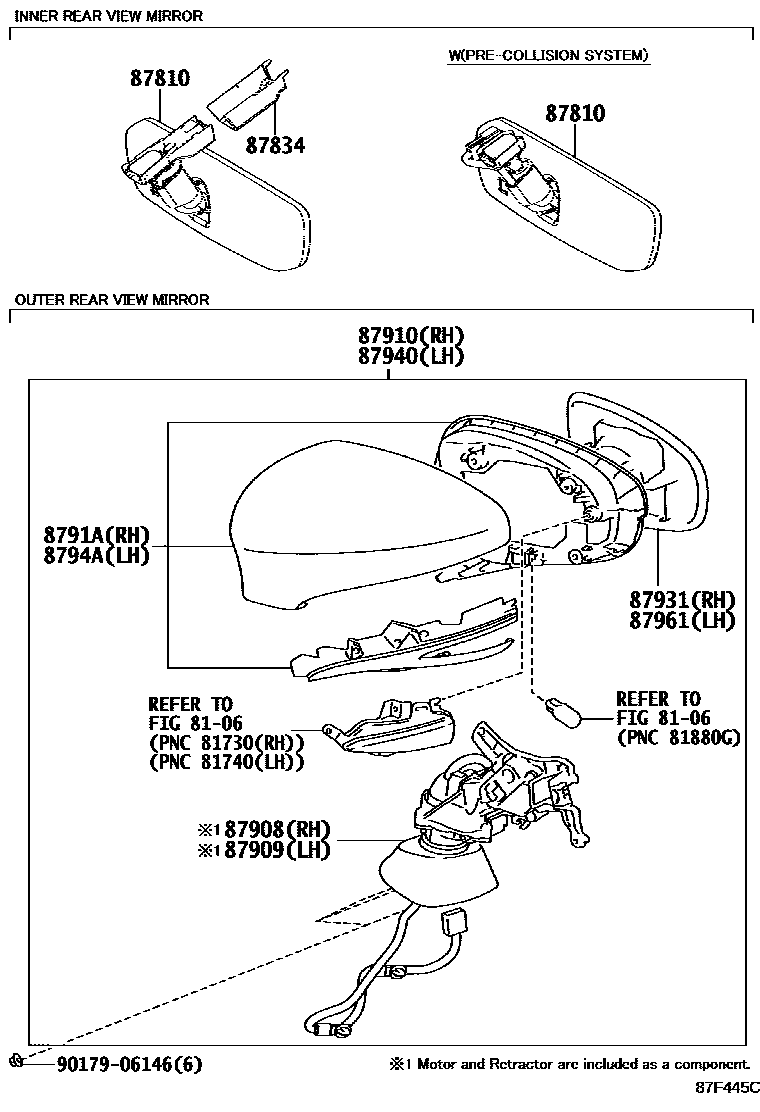

Toyota LEXUS GS F — MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WA90iURL10201510-202007

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-48020iURL10201510-202007

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30C41-C0iURL10201909-202007

BLACK,083 ,1G0 ,1J2 ,1J7 ,223 ,3R1 ,5C1 ,8X1

sub87908-30C51

main87908-30E40iURL10201510-201909

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30D31-C0iURL10201909-202007

BLACK,083 ,1G0 ,1J2 ,1J7 ,223 ,3R1 ,5C1 ,8X1

sub87909-30D41

main87909-30F30iURL10201510-201909

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30C41-C0iURL10201909-202007

BLACK,083 ,1G0 ,1J2 ,1J7 ,223 ,3R1 ,5C1 ,8X1

main87910-30E40iURL10201510-201909

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30D10-C0iURL10201909-202007

BLACK,083 ,1G0 ,1J2 ,1J7 ,223 ,3R1 ,5C1 ,8X1

main8791A-30E40iURL10201510-201909

87931OUTER MIRROR, RH

main87931-30C40iURL10201510-202007

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30D31-C0iURL10201909-202007

BLACK,083 ,1G0 ,1J2 ,1J7 ,223 ,3R1 ,5C1 ,8X1

main87940-30F30iURL10201510-201909

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30E00-C0iURL10201909-202007

BLACK,083 ,1G0 ,1J2 ,1J7 ,223 ,3R1 ,5C1 ,8X1

main8794A-30F30iURL10201510-201909

87961MIRROR OUTER, LH

main87961-30D30iURL10201510-202007

9017906146

main90179-06146

12 parts on this diagram · 1 diagram in section
