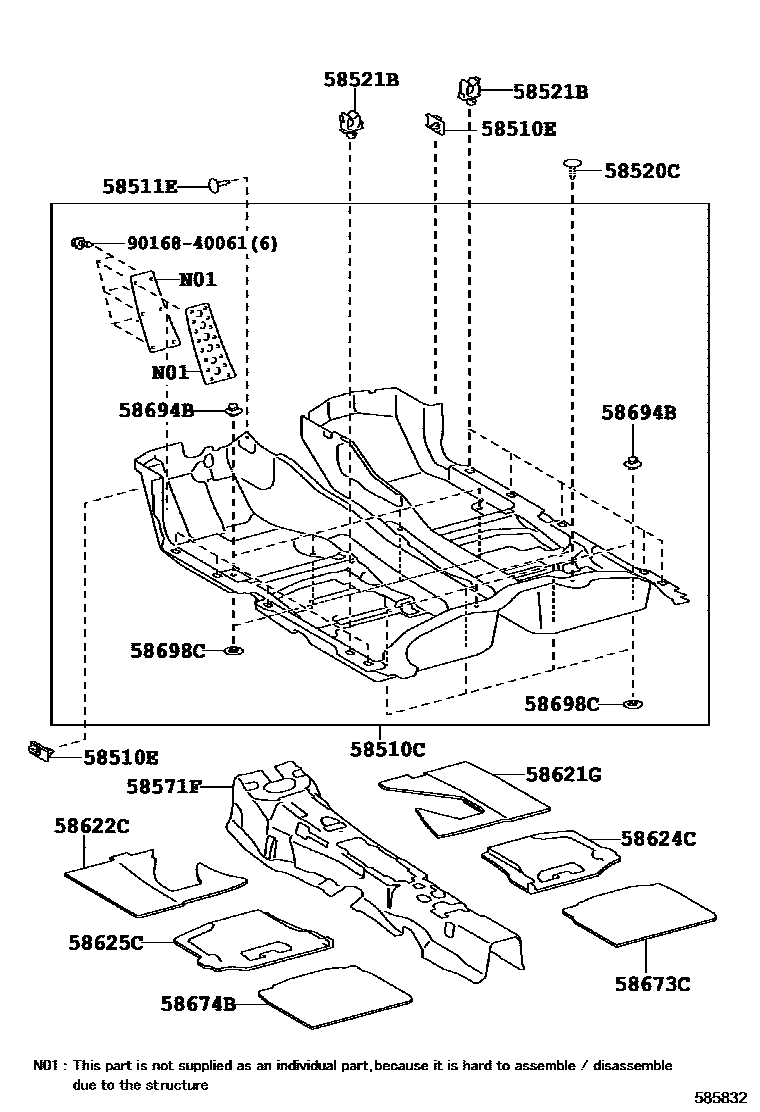

Toyota LEXUS GS F — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-30K10-C1iURL10201510-201609

BLACK,TRIM1#,2#,3#

sub58510-30K70

main58510-30K70-C0iURL10201609-202007

BLACK,TRIM0#,1#,2#,3#,8#

58510ERETAINER, FLOOR CARPET

main62135-30020iURL10201510-202007

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07049-23iURL10201610-202007

BLACK

sub90467-07049

main90467-07049-C0iURL10201510-201610

BLACK,TRIM1#,2#,3#

sub90467-07049

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8iURL10201510-202007

LT.GRAY

sub90467-05164

58521BHOOK, FLOOR CARPET

main58521-30150iURL10201510-202007

58571FPAD, FRONT FLOOR, FRONT

main58571-30211iURL10201510-202007

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-30151iURL10201510-202007

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-30201iURL10201510-202007

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-30141iURL10201510-202007

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-30091iURL10201510-202007

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-30021iURL10201510-202007

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-30021iURL10201510-202007

58694BPLATE, MAT SET, UPPER

main58694-78010iURL10201510-202007

58698CPLATE, MAT SET, LOWER

main58698-78010iURL10201510-202007

9016840061

main90168-40061

15 parts on this diagram · 1 diagram in section
