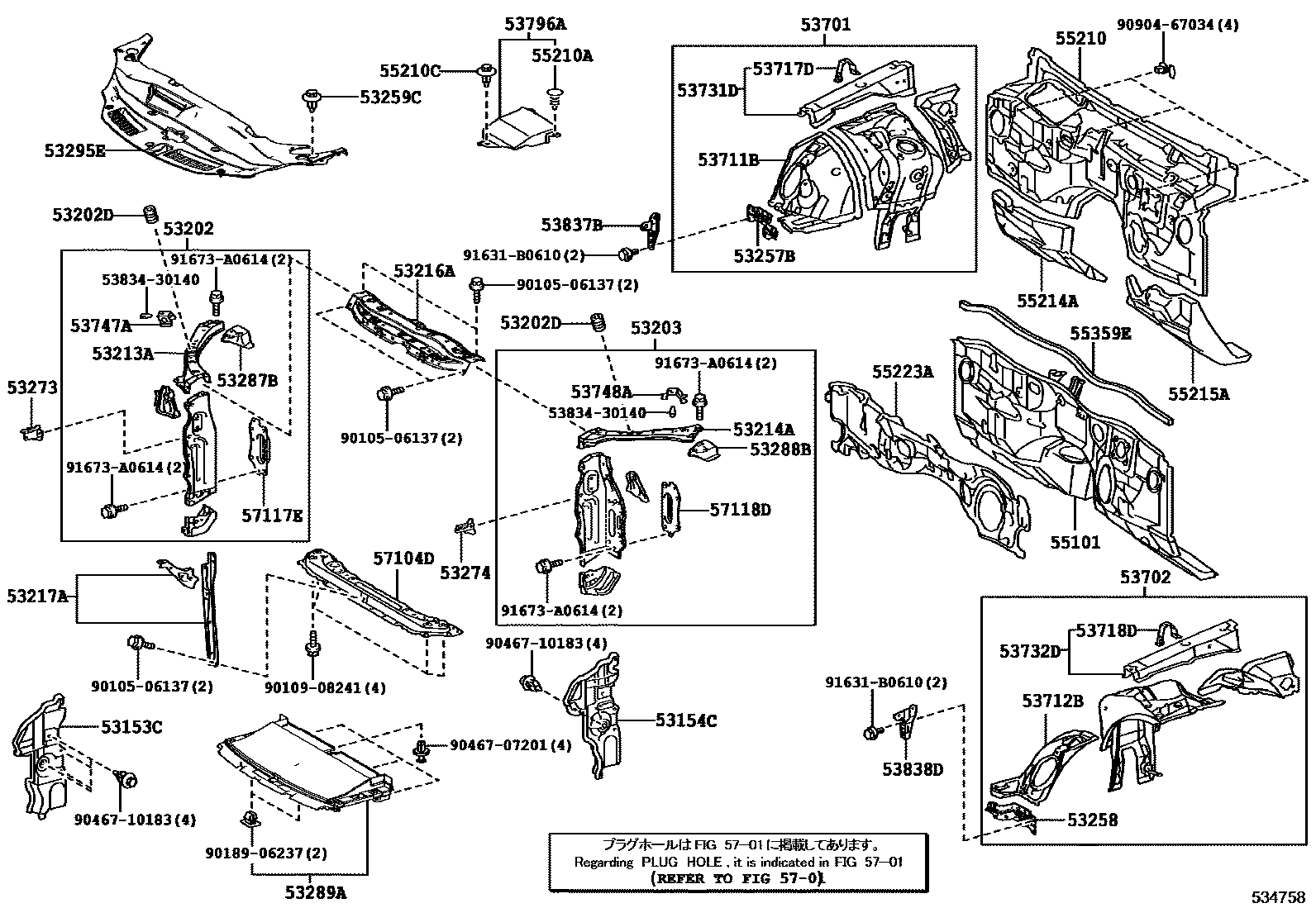

Toyota LEXUS GS F — FRONT FENDER APRON & DASH PANEL
53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
sub53202-30171
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
sub53203-30171
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53295ESEAL, COOL AIR INTAKE DUCT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53796ACOVER, ENGINE ROOM SIDE, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55101PANEL SUB-ASSY, DASH
55210ACLIP
55210CCLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55359ECUSHION, INSTRUMENT PANEL, NO.5
5701
57104DMEMBER SUB-ASSY, FRONT CROSS
sub57104-30091
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
5383430140PANEL, FRONT FENDER SIDE, LOWER LH
main53834-30140
9010506137
main90105-06137
9010908241
main90109-08241
9018906237
main90189-06237
9046707201
main90467-07201
9046710183
main90467-10183
9090467034
main90904-67034
91631B0610
main91631-B0610
91673A0614
main91673-A0614
52 parts on this diagram · 1 diagram in section
