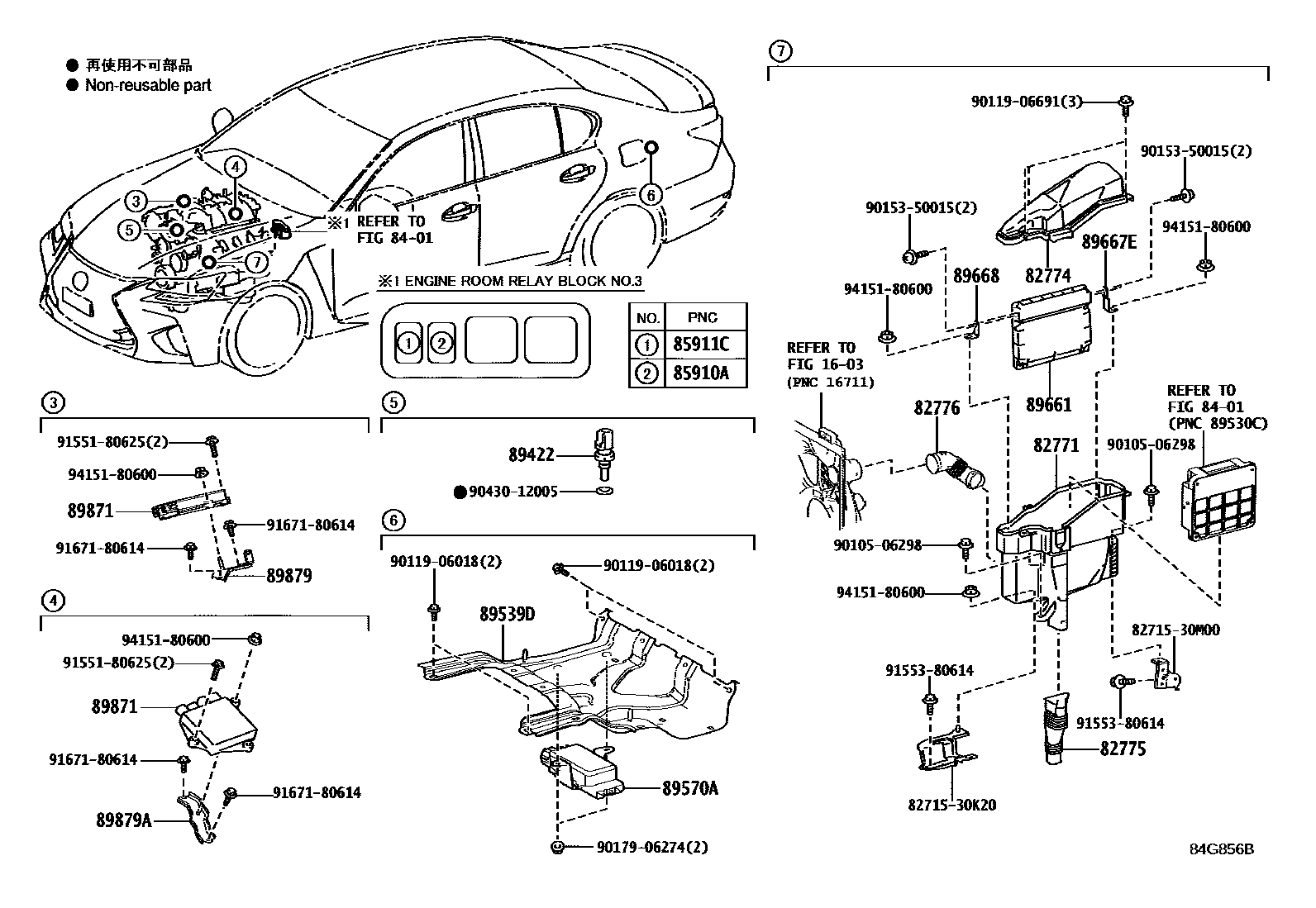

Toyota LEXUS GS F — ELECTRONIC FUEL INJECTION SYSTEM

1603

82771BOX, ENGINE ROOM ECU

main82771-30060iURL10201510-202007

82774COVER, ENGINE ROOM ECU

main82774-30060iURL10201510-202007

82775DUCT, ENGINE ROOM ECU INLET

main82775-30070iURL10201510-202007

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-24010iURL10201510-202007

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iURL10201510-202007

85911CRELAY, EFI 2

main90987-02027iURL10201510-202007

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iURL10201510-202007

89539DBRACKET, COMPUTER

main89539-30160iURL10201510-202007

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-30290iURL10201510-202007

89661COMPUTER, ENGINE CONTROL

main89661-3AC00iURL10201510-201606

sub89661-3AC01

main89661-3AC01iURL10201607-201609

sub89661-3AC02

main89661-3AD90iURL10201609-201709

main89661-3AF80iURL10201709-201805

main89661-3AJ00iURL10201805-201909

DENSO

main89661-3AJ30iURL10201909-202007

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30300iURL10201510-202007

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30280iURL10201510-202007

89871DRIVER, INJECTOR

main89871-30040iURL10201510-202007

89879BRACKET, INJECTOR DRIVER

main89879-24010iURL10201510-202007

89879ABRACKET, INJECTOR DRIVER

main89879-24020iURL10201510-202007

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20

8271530M00BRACKET,WIRING HARNESS CLAMP

main82715-30M00

9010506298

main90105-06298

9011906018

main90119-06018

9011906691

main90119-06691

9015350015

main90153-50015

9017906274

main90179-06274

9043012005

main90430-12005

9155180625

main91551-80625

9155380614

main91553-80614

9167180614

main91671-80614

9415180600

main94151-80600

29 parts on this diagram · 1 diagram in section
