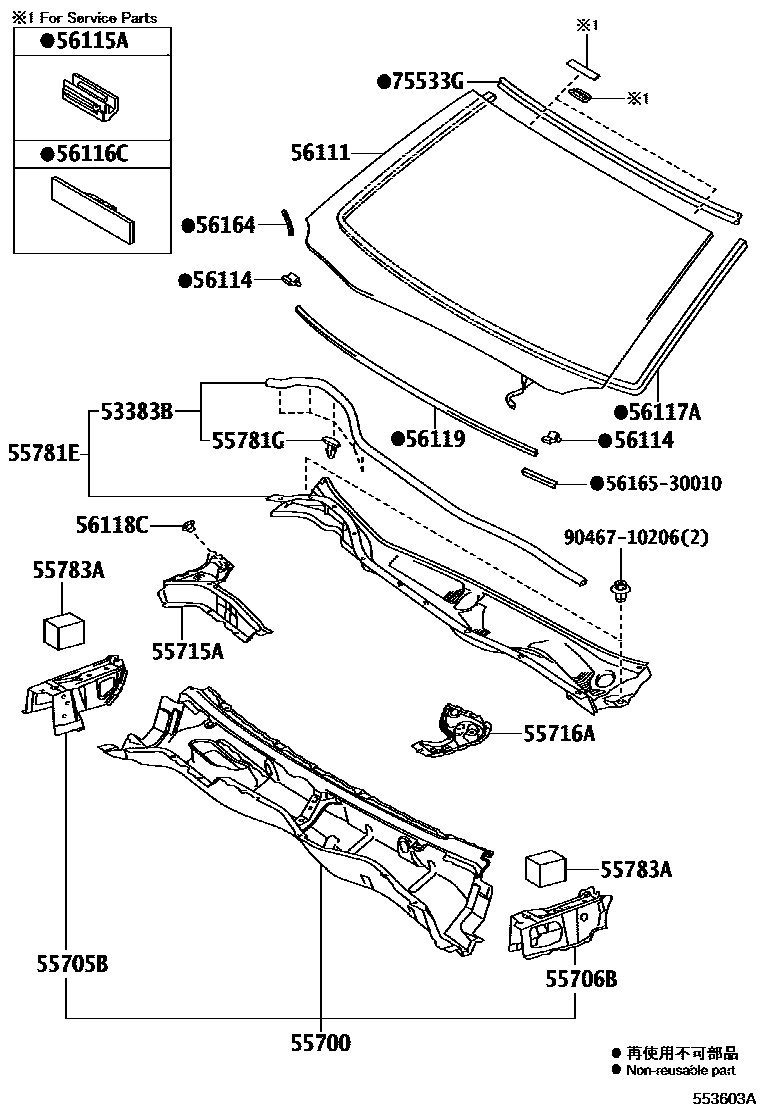

Toyota LEXUS GS F — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
HEAD UP DISPLAY-WITH
56114RETAINER, WINDSHIELD GLASS
HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
HEAD UP DISPLAY-WITH
56116CSTOPPER, WINDSHIELD GLASS, NO.2
HEAD UP DISPLAY-WITH
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2919
*D,L=2919,PRE-COLLISION SYSTEM-WITH(GSP)&WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,PRE-COLLISION SYSTEM-WITH(GSP)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,WINDSHIELD DEICER-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*D,L=2919,HEAD UP DISPLAY-WITH
56118CRETAINER, WINDSHIELD GLASS, NO.2
56119SEAL, WINDSHIELD GLASS
HEAD UP DISPLAY-WITH
56164COVER, FRONT WINDOW INNER MOULDING, RH
HEAD UP DISPLAY-WITH
75533GMOULDING, WINDSHIELD, OUTSIDE
HEAD UP DISPLAY-WITH
5616530010COVER, FRONT WINDOW INNER MOULDING, LH
main56165-30010
9046710206
main90467-10206
20 parts on this diagram · 1 diagram in section
